Description
Small Animal Rebreathing
Moduflex Optimax Veterinary Anesthesia Machine
A floor workstation that is built around your choice of absorber, with room for up to three flowmeters.
0.1-4 LPM
Oxygen flowmeter
2
Absorber choices
Up to 3
Flowmeters installable
MRI
Conditional version available
Overview
The Optimax is the Moduflex floor machine for small animal rebreathing work, and the first decision when ordering it is the absorber. One build pairs a standard CO2 absorber with a Y patient circuit; the other pairs a coaxial absorber with a coaxial circuit. Both builds put the fresh gas outlet at the front of the machine on a quick-connect fitting, so moving to the optional Bain adaptor or another circuit happens right at the front panel.
Oxygen is set on a 0.1 to 4 LPM flowmeter that reads from a rotating float against a large scale. The vaporizer seats on a SELECTATEC-compatible manifold that works with vaporizer interlocks, and the machine carries both circuit and line pressure gauges. A condensation trap under the soda lime, a recessed flush valve, a pop-off valve that can be closed momentarily, a monitor shelf, and a 2.5 meter DISS oxygen supply hose round out the standard build.

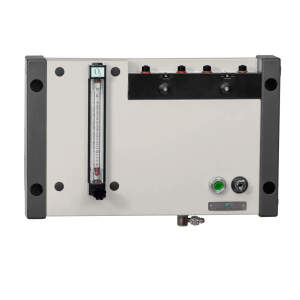

The Optimax is one of several Moduflex platforms in our veterinary anesthesia machine range, and a wall-mount configuration is available for rooms where floor space is limited.
Key Features
Your choice of absorber
Order the standard CO2 absorber with a Y patient circuit, or the coaxial absorber with a coaxial patient circuit.
Front quick-connect outlet
The fresh gas outlet sits at the front on a quick-connect fitting for fast circuit changes, including the optional Bain adaptor.
Interlock-ready manifold
Vaporizers install on a SELECTATEC-compatible manifold that supports vaporizer interlock.
Room for three gases
The standard 0.1 to 4 LPM oxygen flowmeter can be joined by up to two more for oxygen, air, N2O, or CO2. A 0 to 1 LPM oxygen tube is also offered.
Pressure at a glance
Circuit and line pressure gauges, a recessed flush valve, and a momentary-close pop-off valve come standard.
MRI Conditional version
Several components are replaced with non-magnetic parts for use where the field at the machine is 1 Tesla (10,000 Gauss) or lower.
Veterinary Applications
The Optimax is set up for small animal rebreathing anesthesia, with options that extend it to open circuits and the MR suite.
- Small animal surgical suites running rebreathing circuits
- Rooms that move between circle and Bain circuits with the optional adaptor
- Practices that prefer a coaxial circuit and absorber
- Rooms that need oxygen plus air, N2O, or CO2 flowmeters
- MR suites, with the MRI Conditional version
Included
Included
- Patient circuit matched to the absorber: Y circuit (standard) or coaxial circuit (coaxial)
- One 2 liter rebreathing bag
- One 3 liter rebreathing bag
- Fresh gas tube
- Krytox grease
- Evacuation tube, 150 cm (5 ft)
- 2.5 meter DISS oxygen supply hose
Available options
- Small cylinder holder (up to two)
- Bain circuit adaptor
- 0 to 1 LPM oxygen flowmeter
- Up to three flowmeters (O2, air, N2O, CO2)
- Circuit pressure alarm
- Scavenger interface
- MRI Conditional version
