Description
Wall-mount Moduflex Optimax
Product Summary

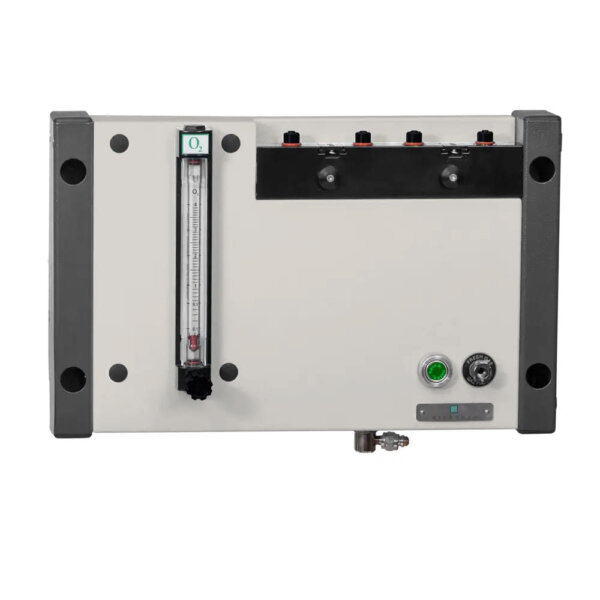

The wall-mount Moduflex Optimax is a wall-mounted Optimax-platform veterinary anesthesia machine for rebreathing and small animal applications when floor space is limited. It includes a SELECTATEC compatibility manifold for vaporizers, vaporizer interlock compatibility, circuit and line pressure gauges, a recessed flush valve, quick-connect fresh gas outlet, and a momentary closed feature in the pop-off valve.
The wall-mount Optimax is a configuration of the Moduflex Optimax. It is offered without an absorber, with a standard absorber, or with a coaxial absorber, and color finishes and optional accessories are available.
Wall-mount
Installation
0.1 to 4 LPM
Oxygen flowmeter
3 paths
Absorber options
Key Features
Wall-mount Optimax platform
Built for space-constrained rooms where a floor machine is not ideal.
Three absorber options
Order without absorber, with standard absorber, or with coaxial absorber.
0.1 to 4 LPM oxygen flowmeter
Rotary float and large scale for readability. Optional 0 to 1 LPM and multi-gas flowmeters available.
SELECTATEC vaporizer path
Compatibility manifold with vaporizer interlock support.
Monitoring and controls
Circuit and line pressure gauges, recessed flush, quick-connect fresh gas outlet, momentary pop-off.
Condensation trap
Absorber builds that use soda lime include a condensation trap.
Available options
Absorber
- Without absorber
- Standard absorber
- Coaxial absorber
Colors
Soft Clay (standard), Glacier Mist, Sage Green, Golden Honey, Blush Coral, Vintage Pink, Lavender Breeze, Rock Grey, Ebony Black, Italian White.
Optional features
Bain circuit adaptor; 0 to 1 LPM O2 flowmeter; up to three flowmeters (O2, air, N2O, CO2); circuit pressure alarm; scavenger interface.
Included with the machine
- 2 liter rebreathing bag
- 3 liter rebreathing bag
- Fresh gas tube
- Krytox grease
- Evacuation tube (150 cm / 5′)
Vaporizer and scavenger
The vaporizer and scavenger interface are not part of the standard build.
