Description
Integrated Ventilation

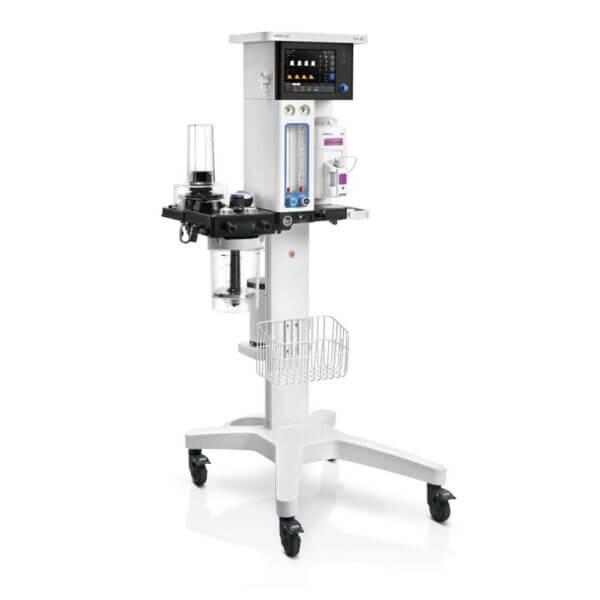

Mindray Veta 5 Veterinary Anesthesia Machine
Ventilator, vaporizer, and dual flowmeters on one compact platform for patients under 200 lb.
5 mL
Minimum tidal volume
8 in
Touch screen
Turbine
No drive gas
Under 200 lb
Patient weight
Overview
For practices that want mechanical ventilation without a separate ventilator and drive-gas line, the Veta 5 builds a turbine-powered ventilator into the anesthesia workstation. The bellows sit inside the breathing system, which removes the external ventilator hoses, and Mindray rates the platform for animals under 200 lb.

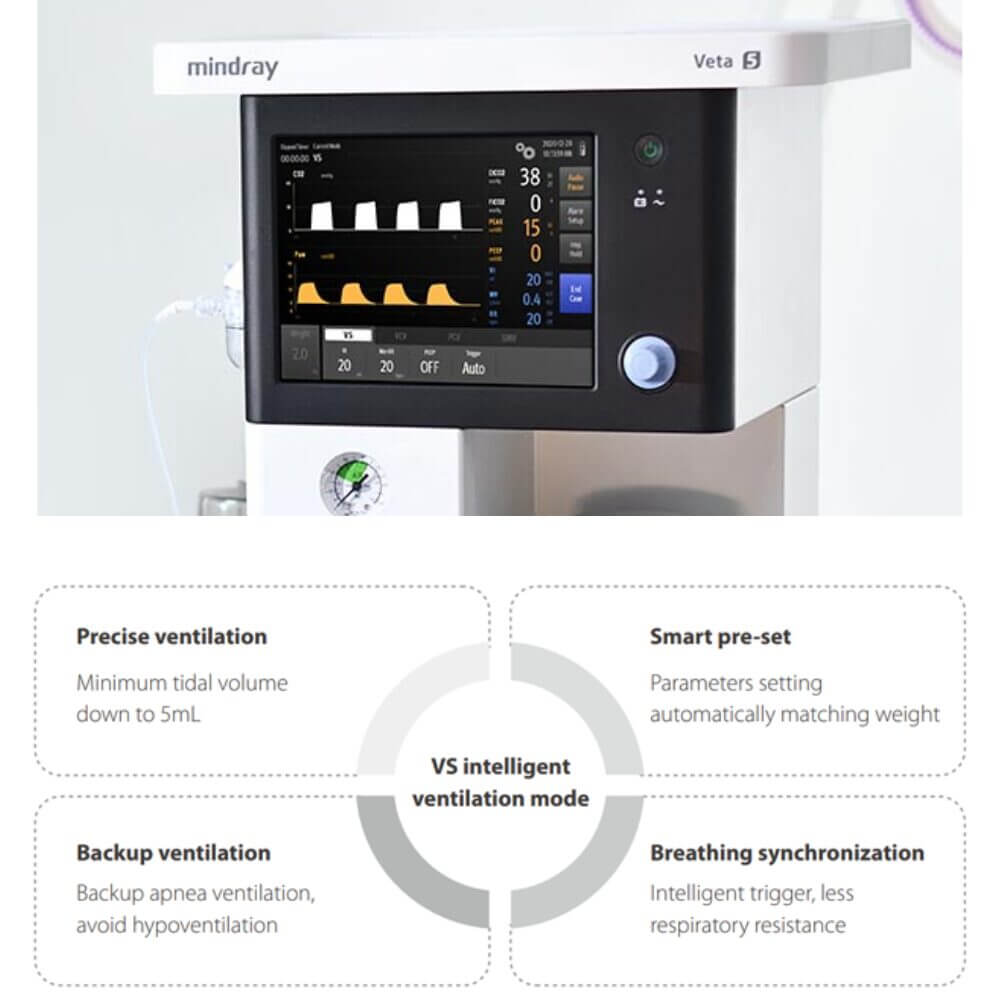

Ventilation is set on an 8-inch touch screen with waveform display. Intelligent volume-support mode, breathing synchronization triggers, and weight-based smart presets let the team start each case from the patient's weight, and the ventilator handles tidal volumes down to 5 mL. Oxygen and nitrous oxide each have their own flowmeter, and agent comes from an integrated vaporizer. Startup runs an automatic system leak test, and the machine reminds staff when the waste-gas canister is due for replacement. Apnea detection, pressure gauges, relief valves, and an oxygen flush are standard, with sidestream EtCO2 as an option.
The Veta 5 sits with the Veta 3 and Veta 3X among the Mindray models in our veterinary anesthesia machine selection.
Key Features
Turbine ventilator, no drive gas
An electronic turbine powers ventilation, so the workstation does not need a drive-gas supply.
Tidal volume from 5 mL
Delivers tidal volumes down to 5 mL for the smallest patients the Veta 5 supports.
Weight-based presets
Smart presets calculate starting ventilation parameters from the patient's weight.
Integrated bellows
The bellows breathing system is built in, with no external ventilator hoses to route.
Startup leak test
An automatic leak test runs at one-step startup, and canister replacement reminders follow use.
Wall or cart
Wall-mount and mobile cart versions, each with mounts for monitors, pumps, and oxygen concentrators.
Veterinary Applications
The Veta 5 is built for companion animal operating rooms that want ventilation in the anesthesia machine itself.
- Companion animal hospital operating rooms
- Cases that call for tidal volumes as low as 5 mL
- Rooms without a drive-gas supply for a ventilator
- Wall-mounted OR layouts or cart-based procedure rooms
- Patients under 200 lb; not intended for equine or large animal work
Included
Included
- Veta 5 anesthesia machine with integrated ventilator
- Integrated vaporizer
Available options
- Sidestream EtCO2 monitoring
- Wall-mount version
- Mobile cart version
- Mounts for patient monitors, infusion pumps, and oxygen concentrators
