Specifications

Physical Specifications

Dimensions and Weight

Main Unit (Placing on the Tabletop)

• Standard Weight: ≤ 44.09 lbs (≤ 20 kg)
• Maximum Weight: ≤ 55.12 lbs (≤ 25 kg)
• Height: 15.75 in (400 mm)
• Width: 15.75 in (400 mm)
• Depth: 11.81 in (300 mm)

Main Unit (Installing on the Basic Trolley)

• Standard Weight: ≤ 50.71 lbs (≤ 23 kg)
• Maximum Weight: ≤ 70.55 lbs (≤ 32 kg)
• Height: 51.18 in (1300 mm)
• Width: 18.11 in (460 mm)
• Depth: 20.08 in (510 mm)

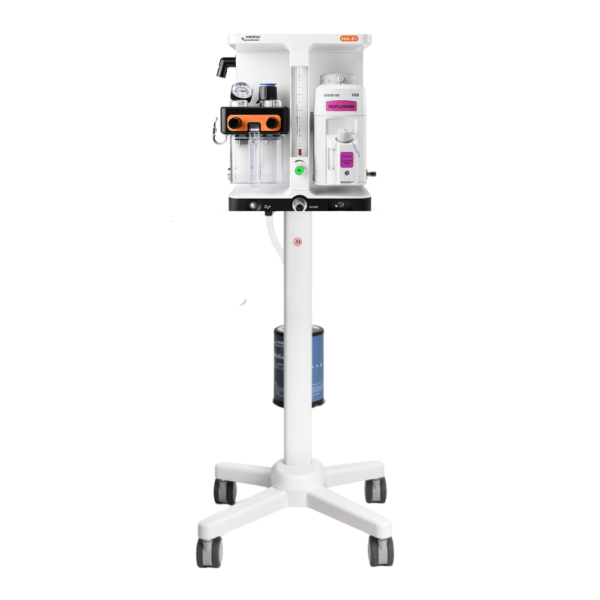

Main Unit (Installing on the High‑Configuration Trolley)

• Standard Weight: ≤ 66.14 lbs (≤ 30 kg)
• Maximum Weight: ≤ 88.18 lbs (≤ 40 kg)
• Height: 51.18 in (1300 mm)
• Width: 21.65 in (550 mm)
• Depth: 27.56 in (700 mm)

Top Shelf

• Length: 12.20 in (310 mm)
• Width: 8.27 in (210 mm)
• Weight Limit: 11.02 lbs (5 kg)

Pneumatic System Specifications

Pipeline Supply

• Gas Type: Oxygen
• Gas Supply Pressure Range: 280 kPa ~ 600 kPa (40 PSI ~ 87 PSI)
• Input Connector: NIST or DISS
• Connector Number: One

Oxygen Flush

• Flow Range: 15 L/min – 25 L/min (at ~280 kPa supply)

Flowmeter

• Number: One
• Range: 0 L/min – 4 L/min

Auxiliary Common Gas Outlet (ACGO)

• Type: Mechanical switch

Anesthetic Breathing System Specifications

Connector

• Manual Bag Port: 0.87 in OD / 0.59 in ID (22 mm / 15 mm conical)
• Inhalation: 0.87 in OD / 0.59 in ID (22 mm / 15 mm conical)
• Exhalation: 0.87 in OD / 0.59 in ID (22 mm / 15 mm conical)
• Scavenging Port: 1.18 in OD (30 mm conical)

CO₂ Absorbent

• Volume: 800 mL ± 100 mL

APL Valve

• Range: 0 cmH₂O – 70 cmH₂O
• Blocking Pressure: Original APL valve value + 30 cmH₂O

Airway Pressure Gauge

• Type: Mechanical
• Range: –20 cmH₂O – 100 cmH₂O

Anesthetic Vaporizer Specifications

Vaporizer

• Filling Methods:
  • Isoflurane: Pour Fill, Key Filler
  • Sevoflurane: Pour Fill, Key Filler, Quik-Fil
• Weight:
  • 13.23 lbs (6.0 kg) empty
  • 14.33 lbs (6.5 kg) full
• Filling Volume:
  • 360 mL (dry wick)
  • 300 mL (moist wick)
  • 260 mL (between min and max marks)
• Concentration Range:
  • Isoflurane: 0 vol.% – 6 vol.%
  • Sevoflurane: 0 vol.% – 8 vol.%
• Concentration Accuracy Range: ±0.25 vol.% or ±20% of set value (whichever is greater)

Anesthetic Gas Scavenging System Specifications

Active AGSS

• Size: 16.93 in × 5.20 in × 4.72 in (430 mm × 132 mm × 120 mm)
• Pump Rate:
  • 25 L/min – 50 L/min (Low-flow)
  • 75 L/min – 105 L/min (High-flow)

Passive AGSS

• Connector: 1.18 in OD (30 mm conical)

Anesthesia Gas Filter Canister Tray

• Canister Size: ≤ 5.12 in diameter (≤ 130 mm)
• Weight Limit: 4.41 lbs (2 kg)

Environment Specifications

Operation

• Temperature (°C): 10 to 40
• Relative Humidity (noncondensing): 15% to 95% R.H.
• Barometric Pressure (kPa): 70 to 106.7

Storage

• Temperature (°C): –20 to 60
• Relative Humidity (noncondensing): 10% to 95% R.H.
• Barometric Pressure (kPa): 50 to 106.7
