Description
Anesthesia Machines

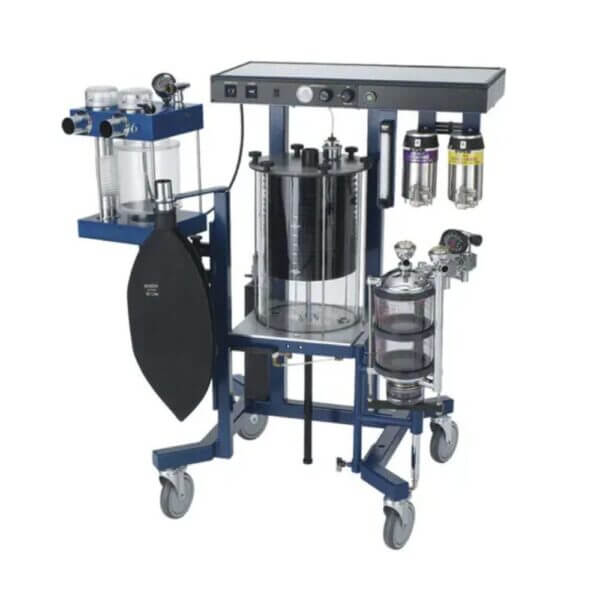

Infinium Equine Anesthesia Machine
Cart-based equine and large-animal anesthesia system with included mechanical ventilator and 2-inch breathing circuit class.
1–15 L
Ventilator tidal volume
50 LPM
Oxygen flush
2 in
Breathing circuit class
53 × 31 × 31 in
Cart footprint (H × W × D)
Overview
The Infinium Equine Anesthesia Machine is a cart-based workstation for equine and other large-animal surgical suites that need mechanical ventilation on the same platform as anesthesia delivery. A reconfigured Dräger AVE ventilator supports spontaneous breathing or controlled ventilation. Large air passageways are designed for high flow with low resistance. Tandem directional valves keep unidirectional flow with low resistance through the circuit.
A 50 LPM oxygen flush provides rapid oxygenation. The frame is balanced and topple-proof, with flared caster mounts for stability on large-animal OR floors. The platform mounts a large-animal absorber and an optional foal absorber when workflow calls for smaller patients without a second machine. Dräger vaporizers are pressure-protected; isoflurane and sevoflurane vaporizers are available, configured separately. Dual Selectatec-compatible vaporizer mounts support dual-agent setups when configured (vaporizers not included in the base machine). Dual precision oxygen and nitrous oxide flowmeters (0.2–5 LPM each) and pin-indexed cylinder yokes round out the gas path. The ventilator design can use room air, reducing oxygen consumption versus oxygen-only drive models. Standard breathing circuit class is 2-inch hose with a patient wye and a 15-liter rebreathing bag.
Key Features
Dräger AVE mechanical ventilation
Reconfigured Dräger AVE for spontaneous breathing or controlled ventilation on the same cart, with preset I:E ratios and adjustable inspiratory flow.
Large air passageways
High-flow, low-resistance passageways sized for equine and other large-animal breathing loads.
Tandem directional valves
Unidirectional flow with low resistance through the absorber circuit.
50 LPM oxygen flush
Rapid oxygenation flush valve for case needs that require a fast O₂ boost.
Large-animal and optional foal absorber
Mount a large-animal absorber as standard path; add an optional foal absorber to reduce downtime when switching to foal or smaller-patient anesthesia.
Topple-proof mobile frame
Balanced frame with flared caster mounts for stable mobility in equine ORs and teaching facilities.
Veterinary Applications
Use this system in equine and large-animal surgery suites, teaching hospitals, and facilities that need cart-based mechanical ventilation alongside anesthesia delivery. Suited to practices running spontaneous or controlled ventilation on equine cases, sites that add a foal absorber for mixed large-animal and foal workflows, and rooms configured for scavenged waste-gas paths. Position for equine / large-animal procedural environments and veterinary schools, not as a companion-animal spay-neuter or dental workstation.
Included
What’s in the base system
- Base machine with Dräger AVE ventilator
- Inspiratory and expiratory circuit limbs, 2 in × 56 in polypropylene hose
- Patient wye with Luer-lock CO₂ sampling port
- 15-liter breathing bag
- Setup and install instructions
- Operator’s manual
Available options
- Foal absorber
- Open-air scavenging system (suction / vacuum waste-gas path)
- E-cylinder mounting for backup oxygen
- Isoflurane vaporizer (temp-compensated wick-style, 0–5%)
- Sevoflurane vaporizer (temp-compensated wick-style, 0–7%)
- Dual Selectatec vaporizer configuration (vaporizers not included in base)
- 30-liter breathing bag
- Extended-range inspiratory and expiratory ratios
- Large-animal endotracheal tubes (order separately)
