Veterinary Surgical Tables

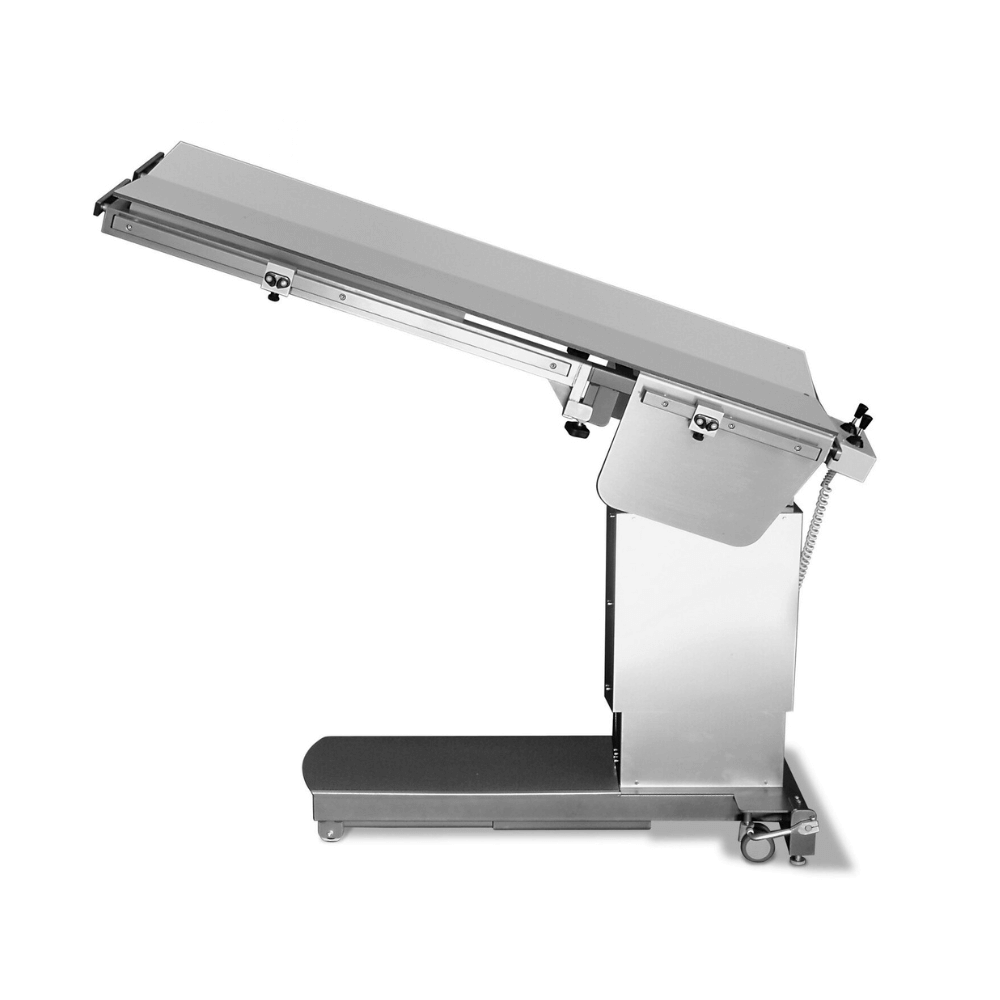

Panno-Med Aeron Veterinary C-Arm Surgical Imaging Table
C-arm compatible imaging table with electric height, tilt, and X-ray translucent tops for specialty small-animal surgery.
250 lb
Patient capacity
31.5–43.3 in
Electric height
20° / 15°
Lateral / Trendelenburg
Flat or V
Top configurations
Overview
The Panno-Med Aeron is a premier veterinary C-arm surgical imaging table built for practices and animal health hospitals that need reliable fluoroscopy access during surgery. Choose Flat Top or V-Top, each available with battery or cord power. Electric height adjustment, lateral tilt, and Trendelenburg / reverse Trendelenburg support precise positioning for imaging-heavy cases.
The X-ray translucent top and C-arm compatible table plane support drainage and imaging clearance. V-Top models use a fixed V of approximately 10° (not adjustable) with removable frame halves for true C-arm access; Flat Top frames are not removable. A joystick remote, OP rails, and four quick-release tie-down cleats ship as standard. Movable double castors with lockable anti-slip feet keep the table stable between rooms and procedures.
Key Features
C-arm and fluoroscopy ready
X-ray translucent top and C-arm compatible table plane for imaging during orthopedic, cardiovascular, and specialty procedures.
Flat Top or V-Top
Flat Top for a continuous radiolucent plane; V-Top with a fixed ~10° V and removable frame halves for open C-arm access.
Battery or cord power
Choose battery-powered or electric cord versions to match OR layout and room power availability.
Electric height and tilt
Height 31.5–43.3 in (80–110 cm), lateral tilt 20°, and Trendelenburg / reverse 15° via joystick remote.
Drainage-friendly top
Angled plane supports fluid management while maintaining imaging clearance under the patient.
Mobile, lockable base
Double castors with lockable anti-slip feet for movement between rooms and stable positioning at the table.
Available options
- Top: Flat Top or V-Top (V-Top fixed ~10°, not adjustable)
- Power: battery or electric cord
- Optional custom pad sized to the translucent top
- Optional rail-mounted accessories (see Optional Panno-Med Table Accessories)
- Optional top extensions where offered (display names only)
Veterinary Applications
Use the Aeron where C-arm or fluoroscopy access is part of the surgical plan: orthopedic fracture repair, cardiovascular work including angiograms and cardiac catheterization, and small-animal arthroscopy with appropriate accessories. Suited to emergency and critical care ORs, university teaching hospitals, research facilities, and specialty practices that need imaging-capable positioning for patients up to 250 lb.
