Panno-med Fusion V-Top Veterinary Surgical Table

Name: Panno-med Fusion V-Top Veterinary Surgical Table
Brand: Panno-Med

The Panno-med Fusion V-Top Veterinary surgical table includes a hydraulic adjustable base and is ideal for veterinary facilities seeking a reliable table with advanced positioning.

Swipe or tap to view images

View full description Download Brochure

Categories: Veterinary Surgical Tables Web ID: 11824

Description Specifications Optional Pannomed Table Accessories Fusion Series - Veterinary Surgical Table Versions Brochures & Documents

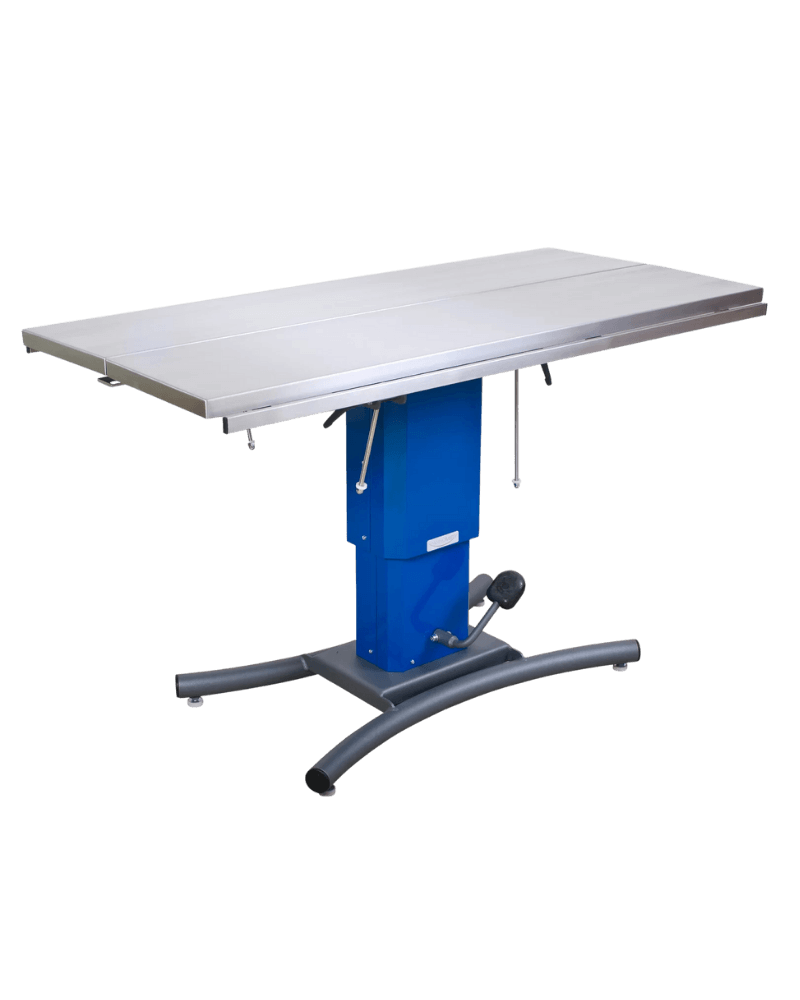

The Panno-med Fusion V-Top Veterinary surgical table includes a hydraulic adjustable base and is ideal for veterinary facilities seeking a reliable table with advanced positioning. Veterinary professionals can adjust the v-top angle up to 45 degrees to accommodate a wide range of procedures. The table top is also capable of longitudinal tilt up to 90 degrees. The table base comes equipped with ( electric or hydraulic optional ) height adjustment and trendelenburg positioning, making it easy for clinicians to have prime access to the operative field. The Panno-med Fusion V-Top Table comes in five different colors and is available with a wide selection of accessories.

Features

Made of high-end steel and aluminum
Premium material frame & design for maximum stability
Resilient powder-coated surface with 5 color options
Height Adjustment: 28.2" to 40.3"
Removeable high-end stainless
V-TOP style table top
V-TOP Dimensions:58"x 23.6"

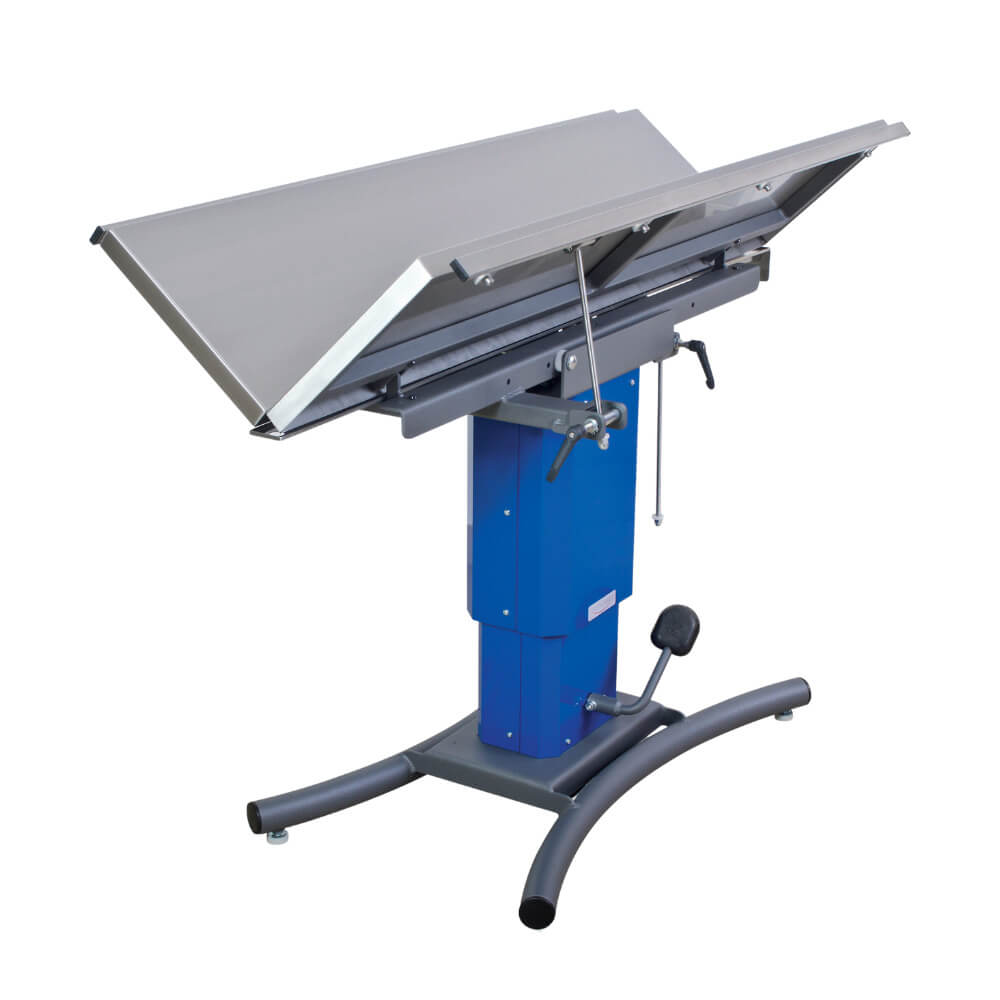

V-TOP Split Angle: Up to 45°

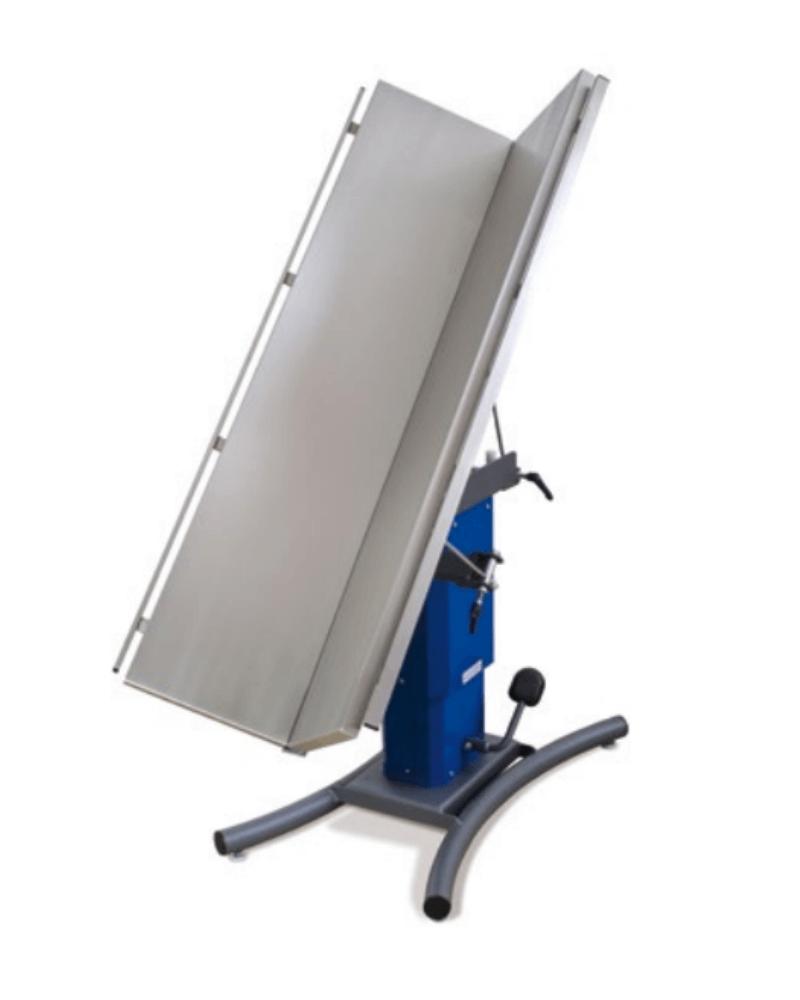

V-TOP Longitudinal Tilt: Up to 90°
Includes drain gutter and drip tray (extendable)
Includes 2 side rails
Optional: Electric or Hydraulic Height Adjustment
Lift Capacity:265lbs
Power Supply: 120V / 60Hz

Optional Pannomed Table Accessories

Pannomed Veterinary Surgical Table Accessories

These are optional and compatible with tables that include the side rail assemblies.

Tilting Stainless Fluid Collection Tray

Tilting stainless steel dish with grid for fluid collection and instrument placement during procedures.

Rail Extension Pair

Extends rail length for more accessory attachments. Dimensions: 200 mm / 7.87 in (pair).

Quick Release Tie-Down Cleat

Additional cleats for enhanced securing options. Compatible with most rail systems. Sold individually.

Ophthalmology Arm Rests

Specialized supports for eye procedures, beneficial for ophthalmology and neurosurgery.

Narcotic Bow Attachment

Supports anesthesia equipment setup during surgical procedures.

Leg Support and Tie-Down Cleat

Secures limbs during surgery for better patient positioning and stability.

Instrument Tray Attachment

Holds surgical tools within easy reach. Dimensions: 300 x 200 mm / 11.81 x 7.87 in.

Infusion Pole Attachment

For convenient IV fluid administration during procedures.

Adjustable Side Supports

Provide lateral stability for patients (pair).

Fusion Series - Veterinary Surgical Table Versions

Image	What Makes This Version Different	Main Benefit / Application

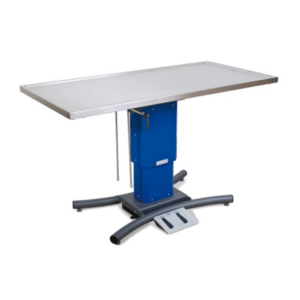

	Flat Top Classic flat stainless steel tabletop with integrated drain gutter and removable drip tray.	Extremely versatile for general veterinary surgery; excellent fluid management and easy cleaning for a wide range of procedures.
	V-Top Adjustable V-shaped split top (up to 45°) with full longitudinal tilt capability (up to 90°).	Superior patient positioning and operative field access; ideal for abdominal, thoracic, and orthopedic procedures.
	Heated Top Radiant heated stainless steel tabletop with precise temperature control.	Prevents hypothermia during anesthesia and long surgeries; especially beneficial for small animals and critical care cases.
	Dental / Wash Top Specialized washable top with enhanced fluid drainage channels optimized for dental procedures.	Perfect for veterinary dentistry and oral surgery; superior fluid control and ultra-easy cleanup between patients.
