Description
Anesthesia Machines

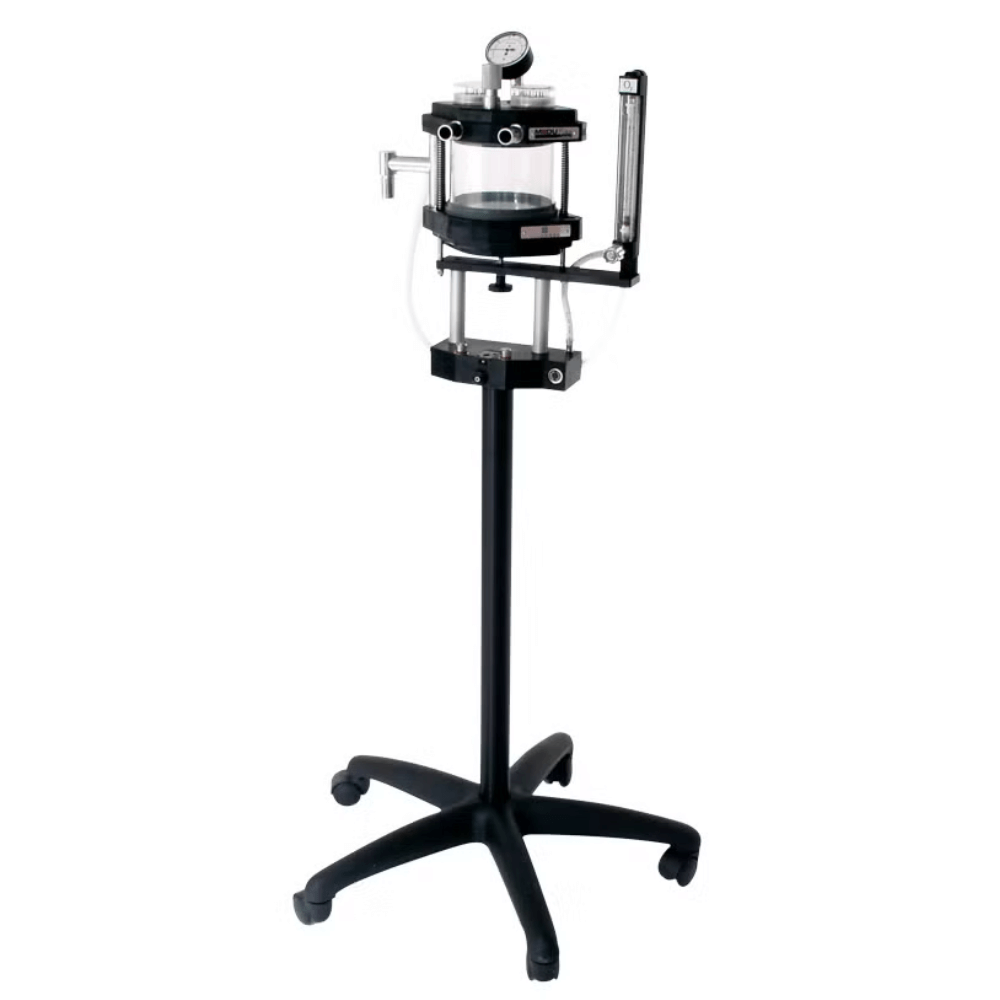

Moduflex Compact Veterinary Anesthesia Machine
Compact floor anesthesia platform with cage-mount vaporizer manifold and 1500 ml CO₂ absorber.
Floor cart
Five-wheel spider base
0.1 to 4 LPM
Oxygen flowmeter
1500 ml
CO₂ absorber
~27 lb
Product weight
Overview
The Moduflex Compact is a portable floor veterinary anesthesia machine built for clinics that need a small-footprint rebreathing platform on casters. A five-wheel spider base supports room-to-room moves; a cage-mount vaporizer compatibility manifold accepts a clinic-supplied vaporizer. Day-to-day controls include a 0.1 to 4 LPM oxygen flowmeter with rotary float and large scale, a recessed flush valve calibrated at 50 LPM, a quick-connect fresh gas outlet, and a 1500 ml CO₂ absorber with condensation trap for straightforward soda lime refill.
Key Features
Portable floor cart
Five-wheel spider base keeps the Compact mobile between OR, dental, and procedure rooms without a wall install.
Cage-mount vaporizer manifold
Cage-mount compatibility manifold for vaporizer installation; vaporizer configured separately.
0.1 to 4 LPM oxygen flowmeter
Rotary float and large scale for readable low-flow control; up to two flowmeters installable when specified.
Recessed 50 LPM flush
Recessed flush valve calibrated at 50 LPM to reduce accidental activation and limit high-pressure flush risk.
1500 ml CO₂ absorber
Absorber with condensation trap designed for easy soda lime replenishment between cases.
Quick-connect fresh gas
Quick-connect fresh gas outlet for switching breathing circuits at the workstation.
Veterinary Applications
Use the floor Moduflex Compact where a portable rebreathing anesthesia cart needs a small footprint: companion-animal hospital operating rooms, dental suites, and mobile or portable floor use between procedure rooms. Suited to clinics that prefer a caster-based Compact platform over a fixed wall mount; a wall-mount configuration is available for rooms where floor space is constrained.
Included
- Y patient circuit
- One 2 liter rebreathing bag
- One 3 liter rebreathing bag
- Fresh gas tube
- Krytox grease
- Evacuation tube (150 cm / 5′)
Available options
- Optional shelf kit (separate accessory configuration)
- Second oxygen flowmeter when clinic workflow requires dual meters
- Vaporizer (cage-mount; agent and fill method configured separately)
- Scavenger interface / path per clinic protocol
