Description
Wall-Mounted NRB

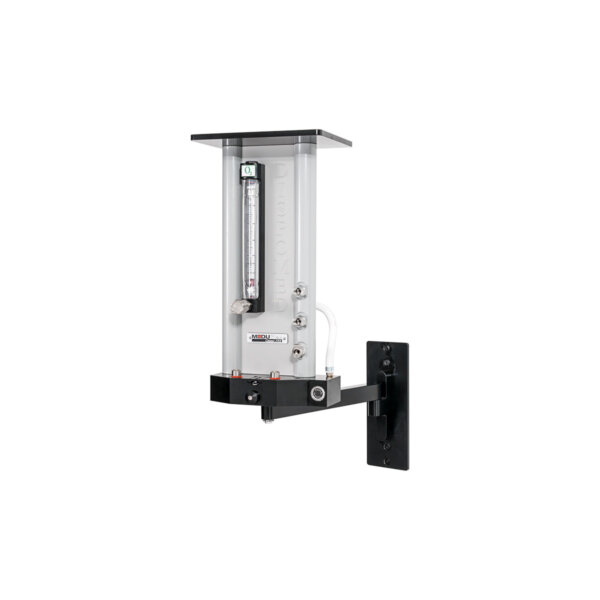

Wall-mount Moduflex NRB Veterinary Anesthesia Machine
Open-circuit anesthesia from a wall bracket, for very small patients, rodent research, and Bain users.
Wall
Mounting
1 or 3
Outputs
0.1-4 LPM
Oxygen flowmeter
9 x 7 in
Monitor shelf
Overview
The wall-mount NRB puts Dispomed's non-rebreathing layout on a wall bracket. It is aimed at three groups: practices anesthetizing very small animals, rodent research centers, and teams that only run an open Bain circuit. One-output and three-output versions are available.
A 0.1 to 4 LPM oxygen flowmeter with a rotating float and large scale sets the flow, and a second flowmeter can be installed. The flush valve is recessed, the fresh gas outlet uses a quick-connect fitting, and the vaporizer installs on a SELECTATEC-compatible manifold. A condensation trap and a 23 x 18 cm (9 x 7 in) monitor shelf are standard, along with a 3 meter (9 ft) oxygen supply hose, a fresh gas connector, and 1 meter (3.28 ft) of fresh gas tubing.
The wall-mount NRB is a configuration of the Moduflex NRB, which offers the same NRB design on a rolling stand.
Key Features
Wall-bracket mounting
Keeps the NRB off the bench and the floor.
One or three outputs
Offered with a single output or with three outputs.
Up to two flowmeters
0.1 to 4 LPM oxygen flowmeter with a rotating float, with room for a second.
SELECTATEC-compatible manifold
The vaporizer installs on a SELECTATEC-compatible manifold.
Quick-connect fresh gas
Quick-connect outlet and a recessed flush valve.
Monitor shelf
A 23 x 18 cm (9 x 7 in) shelf holds a patient monitor.
Veterinary Applications
The wall-mount NRB is built for open-circuit work in rooms that keep equipment on the wall.
- Rodent research centers
- Veterinary practices anesthetizing very small animals
- Teams that use only an open Bain circuit
- Labs and procedure rooms with limited bench and floor space
Available configurations
| Configuration | Outputs |
|---|---|
| One output | Single output |
| Three outputs | Three outputs |
Included
Included
- 3 meter (9 ft) oxygen supply hose
- Fresh gas connector
- 1 meter (3.28 ft) of fresh gas tubing
Available options
- Second flowmeter
- Bain circuit adaptor
- Circuit pressure alarm
