Description
Non-Rebreathing and Rodent
Moduflex NRB Rodent Anesthesia Machine
A rolling-stand NRB for open-circuit anesthesia with very small patients and rodent research.
0.1-4 LPM
Oxygen flowmeter
1 or 3
Outputs
25 lbs
Machine weight
9 x 7 in
Monitor shelf
Overview
The Moduflex NRB is a non-rebreathing machine for teams that work with very small animals, run rodent studies, or use only an open Bain-type circuit. It stands on a five-wheel spider base, so the unit rolls to the table instead of taking up bench space.
Oxygen delivery is set on a 0.1 to 4 LPM flowmeter with a rotating float, and a second flowmeter can be added. The fresh gas outlet uses a quick-connect fitting, the flush valve is recessed, and the vaporizer installs on a SELECTATEC-compatible manifold. A condensation trap, a 23 x 18 cm (9 x 7 in) monitor shelf, a 3 meter (9 ft) oxygen supply hose, a fresh gas connector, and 1 meter (3.28 ft) of fresh gas tubing come standard. One-output and three-output versions are available.

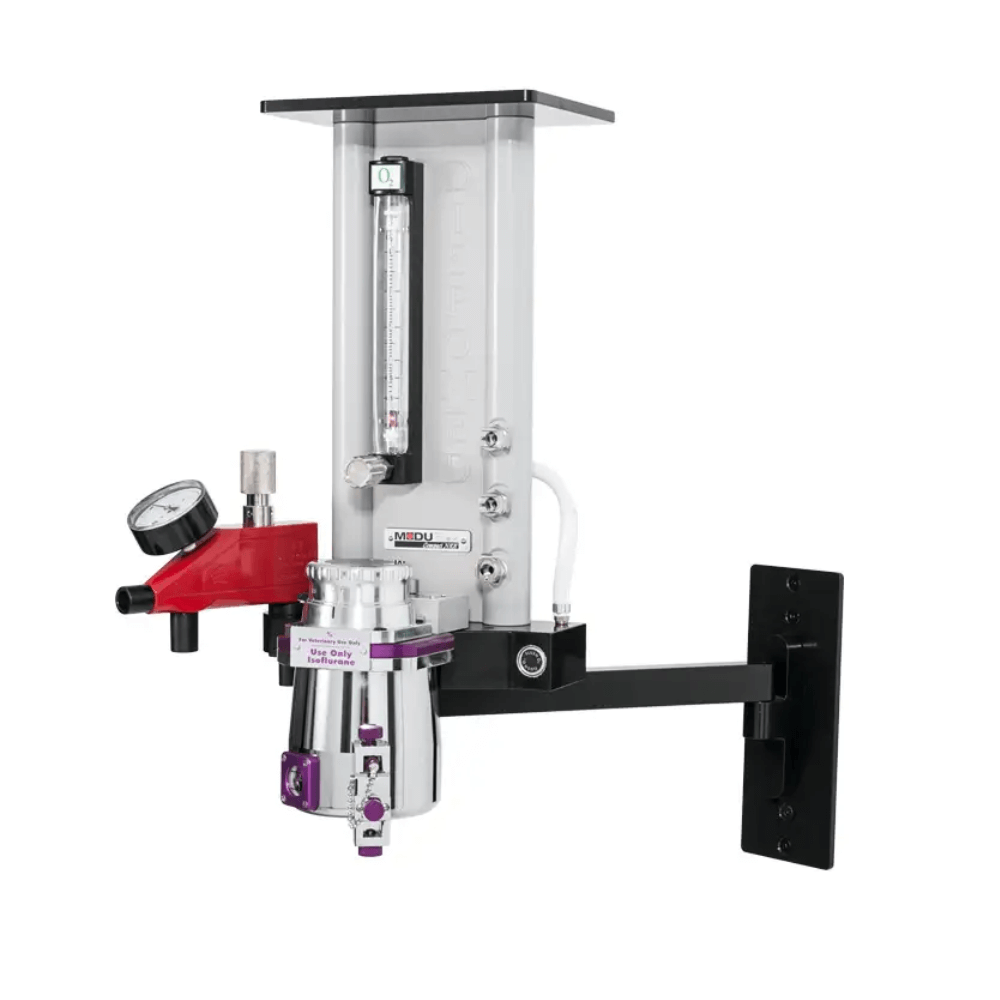

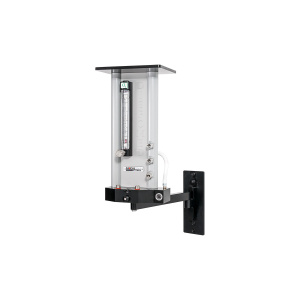

For rooms without floor space, a wall-mount configuration carries the same NRB layout on a wall bracket. The NRB sits with the lab and research units in our veterinary anesthesia machines.
Key Features
One or three outputs
The NRB is offered with a single output or with three outputs.
Five-wheel spider base
The rolling stand keeps the NRB off the bench and easy to move between tables.
SELECTATEC-compatible manifold
The vaporizer installs on a SELECTATEC-compatible manifold.
Up to two flowmeters
A 0.1 to 4 LPM oxygen flowmeter with a rotating float and large scale, with room for a second.
Quick-connect fresh gas
Quick-connect fresh gas outlet and a recessed flush valve for open-circuit work.
MRI Conditional version
An MRI Conditional build of the NRB is offered for the MR room.
Veterinary Applications
The NRB is designed for non-rebreathing anesthesia where patients are small and circuits are open.
- Rodent research centers
- Veterinary practices anesthetizing very small animals
- Teams that use only an open Bain circuit
- MR rooms, with the MRI Conditional version
Included
Included
- 3 meter (9 ft) oxygen supply hose
- Fresh gas connector
- 1 meter (3.28 ft) of fresh gas tubing
Available options
- Second flowmeter
- Three-output version
- Bain circuit adaptor
- Circuit pressure alarm
- Small cylinder holder
- MRI Conditional version
