Description
Wall-Mounted Access2

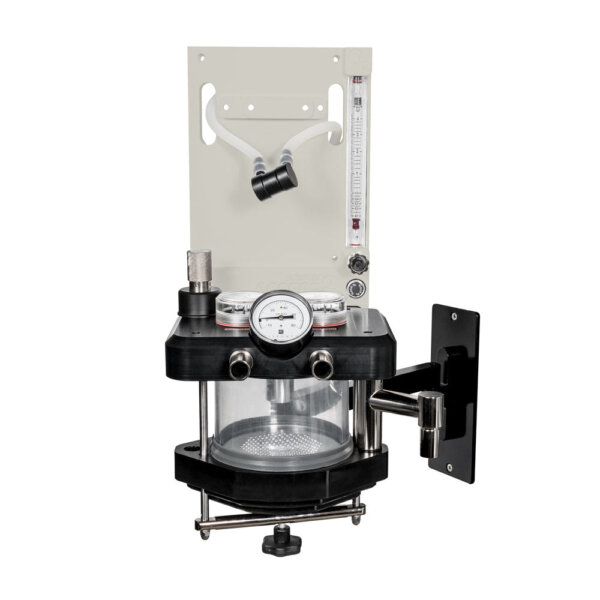

Wall-mount Moduflex Access2 Veterinary Anesthesia Machine
The Access2 head on a wall plate, offered with or without a quick-close pop-off valve.
Wall
Mounting
0.1-4 LPM
Oxygen flowmeter
1500 ml
CO2 absorber
22.5 x 13 x 13 in
Head dimensions
Overview
The wall-mount Access2 moves the Access2 machine head off the floor and onto a wall plate, which leaves the space around the table clear for staff and carts. It is offered in two pop-off configurations: a pop-off valve without quick-close, or a quick-close pop-off valve. A shelf is not built in; the Moduflex Access2 Shelf Kit adds one where the room needs it.
Like the floor Access2, both heads are machined precisely so fewer connections are needed. A 0.1 to 4 LPM oxygen flowmeter with a rotating float sets the flow, the flush valve is recessed and calibrated at 50 LPM, and a quick-connect outlet handles fresh gas. A cage-mount manifold holds the vaporizer, and the 1500 ml CO2 absorber has a condensation trap and refills quickly.
The wall-mount Access2 is a configuration of the Moduflex Access2, which carries the same head on a five-wheel spider base.
Key Features
Wall-plate mounting
The Access2 head mounts on the wall, keeping the floor around the table open.
Quick-close pop-off option
Order a pop-off valve with or without quick-close.
Cage-mount manifold
The vaporizer installs on a cage-mount compatibility manifold.
1500 ml absorber
CO2 absorber with a condensation trap, designed for quick soda lime refills.
Recessed 50 LPM flush
Recessed flush valve with a 50 LPM calibration.
Quick-connect outlet
The fresh gas outlet uses a quick-connect fitting for circuit changes.
Veterinary Applications
The wall-mount Access2 fits rooms where floor space around the table is limited.
- Procedure rooms that prefer wall-mounted equipment
- Rooms that want a quick-close pop-off valve
- Practices that use cage-mount vaporizers
- Rooms that add a Bain circuit through the optional adaptor
Available configurations
| Configuration | Pop-off valve |
|---|---|
| Without quick-close | Pop-off valve without quick-close |
| With quick-close | Quick-close pop-off valve |
Included
Included
- Y patient circuit
- One 2 liter rebreathing bag
- One 3 liter rebreathing bag
- Fresh gas tube
- Krytox grease
- Evacuation tube, 150 cm (5 ft)
Available options
- Moduflex Access2 Shelf Kit
- Bain circuit adaptor
- Circuit pressure alarm
- Scavenger interface
