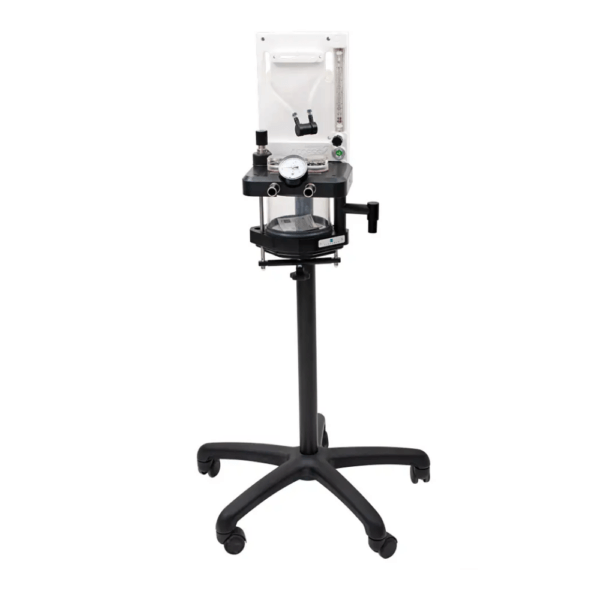

The Moduflex Access 2 is a compact veterinary anesthesia machine with small dimensions.
It is equipped with a cagemount vaporizer mount. The flush valve is recessed to prevent accidental activation and is calibrated at 50 lpm.
It has a momentary pop-off valve for rapid patient bagging that re-opens after use. A flat top engraved rotary float simplifies readings and flow monitoring and reduces dust particle accumulation.
An optional shelf kit adds space for accessories during surgery.
Access 2 Features
- 0.1 to 4 LPM O2 flowmeter (up to 2 flowmeters can be installed).
- Rotary float and large scale for easy readability.
- Recessed flush valve to prevent accidental activation.
- Anesthesia machine head and absorber head are precision machined to reduce connections and the risk of leaks.
- Quick-connect fresh gas outlet for easy and secure switching between breathing circuits.
- Cage mount compatibility manifold for easy and quick installation of vaporizer.
- Five wheel spider base.
- 1500 ml CO2 absorber designed for easy and fast replenishing of sodalime.
- Condensation trap to prevent water build-up in sodalime. Easy and efficient gas sealing.
Included Standard
- Y Patient Circuit
- One 2 liter Rebreathing Bag
- One 3 liter Rebreathing Bag
- Fresh gas tube
- Krytox grease
- Evacuation tube (150 cm / 5′)
Product dimensions
| Length |
68.58 cm (27″) |
| Width |
66.04 cm (26″) |
| Height |
138.43 cm (54.50″) |
| Weight |
12.27 kg (27 lbs) |
Shipping box dimensions
| Length |
68.58 cm (27″) |
| Width |
68.58 cm (27″) |
| Height |
45.72 cm (18″) |
| Weight |
19.54 kg (43 lbs) |
