Description
Anesthesia Machines

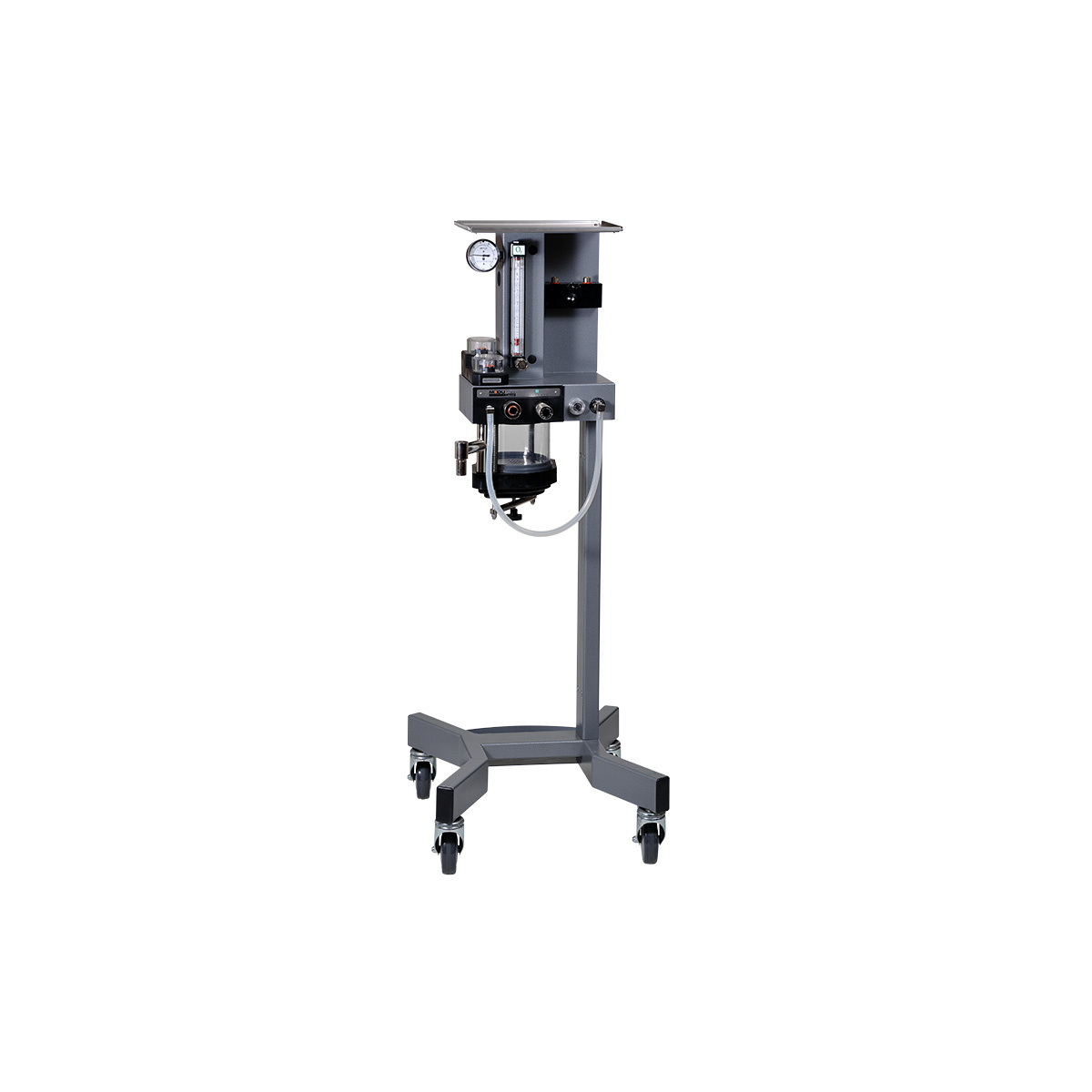

Moduflex Coaxial Veterinary Anesthesia Machine
The Moduflex Coaxial is a veterinary anesthesia machine for rebreathing and small animal applications. positions it as the most popular model in the Moduflex line. It uses an integrated coaxial breathing circuit and a 1500 ml CO₂ absorber with coaxial circuit geometry, a front-placed quick-connect fresh gas outlet for switching between breathing circuits, a monitor/ventilator shelf, and a stable mobile base.
Manufactured by the manufacturer. Confirm circuit needs, vaporizer mount (SELECTATEC™ compatibility manifold), scavenger path, and whether a separate MRI Conditional Coaxial configuration is required when quoting. Complete anesthesia machine platform: vaporizer, scavenger interface, and cylinders typically configured separately unless included in a quote package. Distinct from the floor Moduflex Optimax and from wall-mount Optimax coaxial-absorber configs.
0.1–4 LPM
Oxygen flowmeter
1500 ml
CO₂ absorber
5 year
Component warranty
Key Features
0.1 to 4 LPM
0.1 to 4 LPM O₂ flowmeter (up to 2 flowmeters can be installed)
Rotary float and large scale
Rotary float and large scale for readability
Recessed flush valve
Recessed flush valve to prevent accidental activation
Quick-connect fresh gas outlet
Quick-connect fresh gas outlet for switching between breathing circuits
SELECTATEC™ compatibility manifold
SELECTATEC™ compatibility manifold for vaporizer installation
1500 ml CO₂ absorber
1500 ml CO₂ absorber with integrated coaxial breathing circuit
Condensation trap for soda lime
Condensation trap for soda lime; manufacturer notes easy/efficient gas sealing
Momentary closed feature
Momentary closed feature incorporated into pop-off valve (Quick Close pop-off: press to ventilate manually, release to return to spontaneous)
Included with the Machine
- Coaxial patient circuit
- One 2 liter rebreathing bag
- One 3 liter rebreathing bag
- Fresh gas tube
- Krytox grease
- Evacuation tube (150 cm / 5′)
