Veterinary Anesthesia Machines

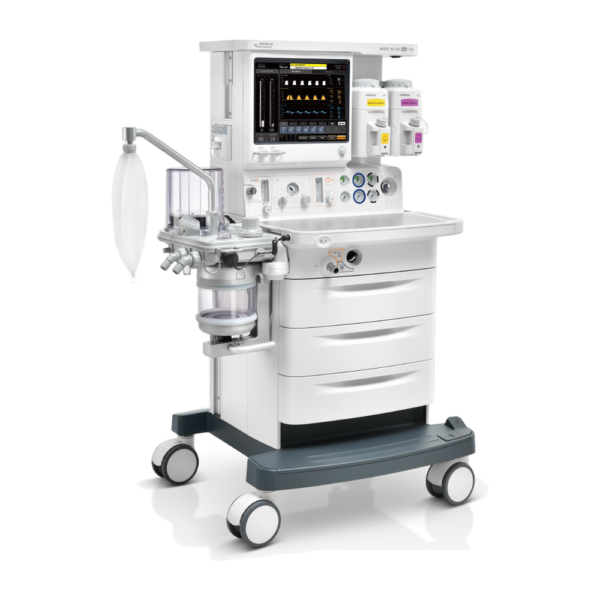

Mindray WATO EX-65 Pro Vet Veterinary Anesthesia Machine
A veterinary anesthesia machine with an integrated ventilator, an electronic gas mixer, and tidal volumes from 5 mL for patients as small as 1.1 lb (0.5 kg).
5 to 1500 mL
Tidal volume range
1.1 to 331 lb
Patient weight range
15 in
Capacitive touchscreen
150 min
Battery backup
Overview
The Mindray WATO EX-65 Pro Vet is a cart-based veterinary anesthesia machine with an integrated ventilator, a 15-inch color capacitive touchscreen, and an electronic gas mixer. A flat menu structure keeps all parameters on view, and changing the ventilation mode takes two steps.
Tidal volumes run from 5 to 1500 mL, with the 5 mL minimum available in VCV, PCV-VG, and SIMV-VG modes, so one machine covers patients from 1.1 to 331 lb (0.5 to 150 kg). Waveforms rescale automatically for small patients, and the apnea alarm logic is tuned to cut false alarms at low tidal volumes.
Plug-and-play gas modules with Artema technology measure O2, CO2, and N2O breath by breath and identify five anesthetic agents automatically. Anesthesia data passes through the ePM 12M Vet patient monitor to BeneVision CMS Vet central monitoring for an electronic record.
Key Features
Electronic flowmeters
Virtual high and low flowmeters show low flows clearly, with a choice of total flow or direct flow control.
Optimizer
Calculates the minimum O2 the patient needs and recommends a fresh gas flow against the current settings.
Agent consumption
Real-time anesthetic agent consumption tracking helps staff see and reduce agent use during each case.
Lung recruitment
One-step sustained inflation or multi-step incremental PEEP with up to 7 stages, started or stopped with one button.
9 ventilation modes
VCV, PCV, PCV-VG, SIMV-VC, SIMV-PC, SIMV-VG, PS, CPAP/PS, and APRV, plus manual and spontaneous.
Battery backup
Two built-in Li-ion batteries run up to 150 minutes, and manual ventilation and agent delivery still work if all power fails.

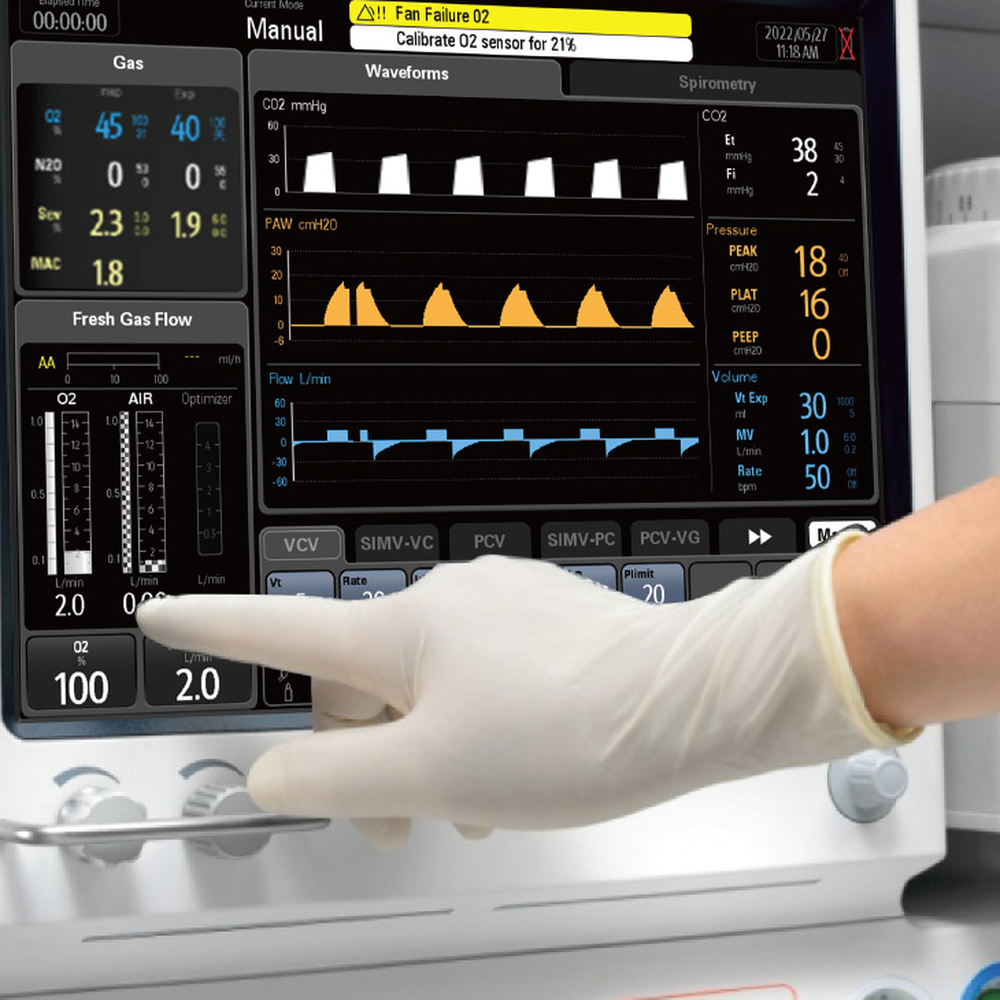

Touchscreen and waveforms
A 15-inch capacitive touchscreen
The 1024 x 768 screen shows all setting and alarm parameters with pressure, flow, and volume waveforms and P-V, F-V, and F-P loops. Trend graphs and tables cover the last 48 hours, and the alarm log stores 500 events.

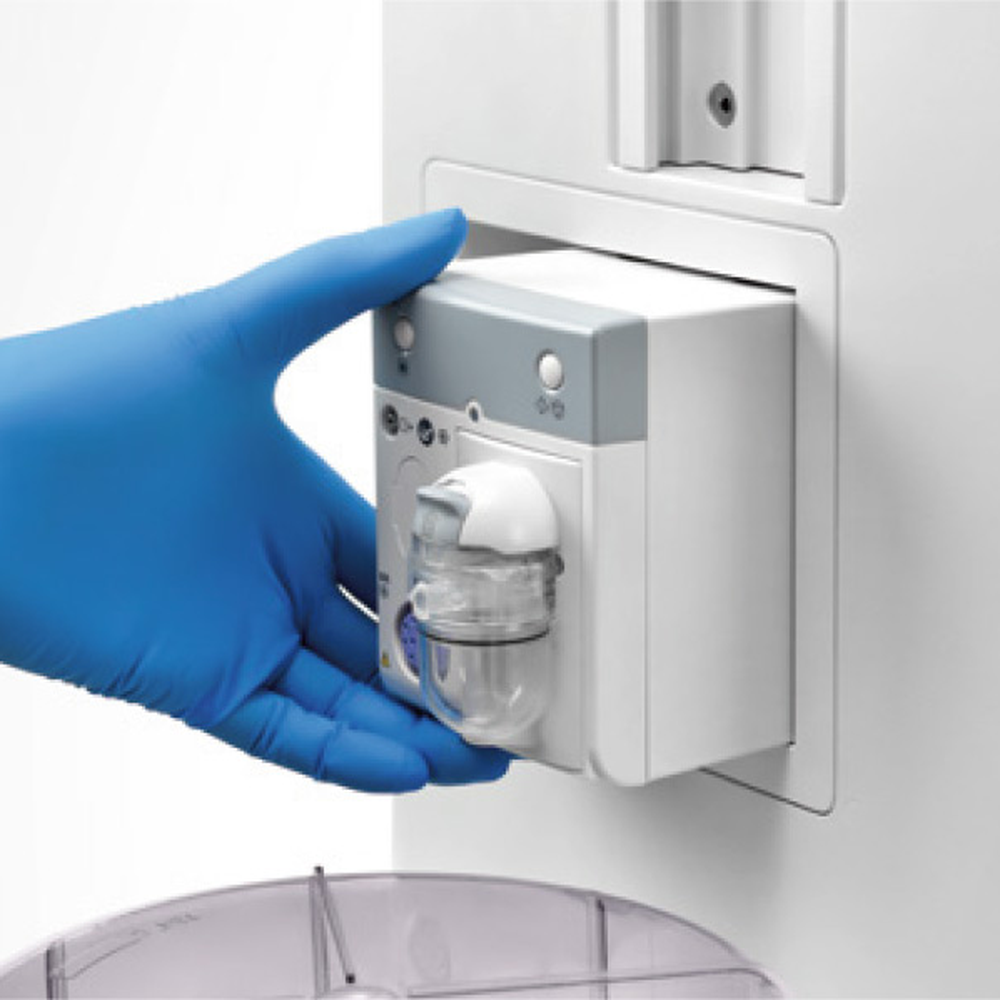

Plug-in gas monitoring
CO2 and multi-gas modules
Gas modules are plug-and-play. The AG module measures CO2 and N2O, identifies five anesthetic agents, and can add paramagnetic O2.
A side-stream CO2 module measures EtCO2 and FiCO2 with a capnography waveform. The Optimizer needs an AG or CO2 module loaded.
Available options
- AG module: CO2, N2O, and five-agent identification, with optional paramagnetic O2
- Side-stream CO2 module with capnography
- Up to 2 vaporizers on Selectatec or Plug-in mounts with interlock
- Electronic or mechanical pipeline and cylinder gauges
- O2, N2O, and Air cylinder yokes
- Venturi or continuous suction regulator
- Active or passive anesthetic gas scavenging
Veterinary Applications
The WATO EX-65 Pro Vet suits veterinary hospitals that anesthetize and ventilate a wide range of patient sizes on one machine.
- Inhalant anesthesia for surgery
- Ventilation of patients from 1.1 lb (0.5 kg)
- Low-flow anesthesia with Optimizer
- Lung recruitment during anesthesia
- Pressure support for spontaneous breathing
- Central monitoring with CMS Vet
