Mindray SV300 Vet Veterinary Ventilator
A turbine-driven ventilator for veterinary ICU and critical care that runs without a central gas supply.
210 L/min
Peak turbine flow
12 in
Adjustable touchscreen
2
Detachable breathing valves
3
Weaning indices
Overview
The Mindray SV300 Vet is a compact ventilator for veterinary ICU and critical care. Its built-in turbine delivers up to 210 L/min of flow, so the unit runs without a central gas supply, and the turbine has no annual maintenance requirement. It supports both invasive and non-invasive ventilation.
Ventilation tools include IntelliCycle Pro synchrony, SI for lung-protective strategies, APRV for inverse-ratio ventilation and lung recruitment, and RSBI, NIF, and P0.1 measurements for weaning assessment.
Both breathing valves detach, the inspiration valve can be autoclaved, and the valve design follows ISO 80601-2-12. The ventilator head mounts to its rolling stand in one step and releases with one key.
Key Features
Built-in turbine
Up to 210 L/min of flow with no central gas supply required, and no annual turbine maintenance.
IntelliCycle Pro synchrony
Adapts to the patient's breathing pattern through waveform analysis and adjusts inspiratory and expiratory trigger sensitivity to limit pressure overshoot and flow starvation.
Lung-protective tools
SI supports lung-protective strategies, and APRV provides inverse-ratio ventilation for lung recruitment.
Weaning assessment
RSBI, NIF, and P0.1 measurements with continuous monitoring and result prompts support a standardized weaning protocol.
12-inch touchscreen
The screen tilts to adjust the viewing angle and shows a setting range indicator, a setting summary, and on-screen operating guidance.
Detachable valves
Inspiration and expiration valves both detach, and the inspiration valve is autoclavable to lower cross-contamination risk.
Screen and alarms

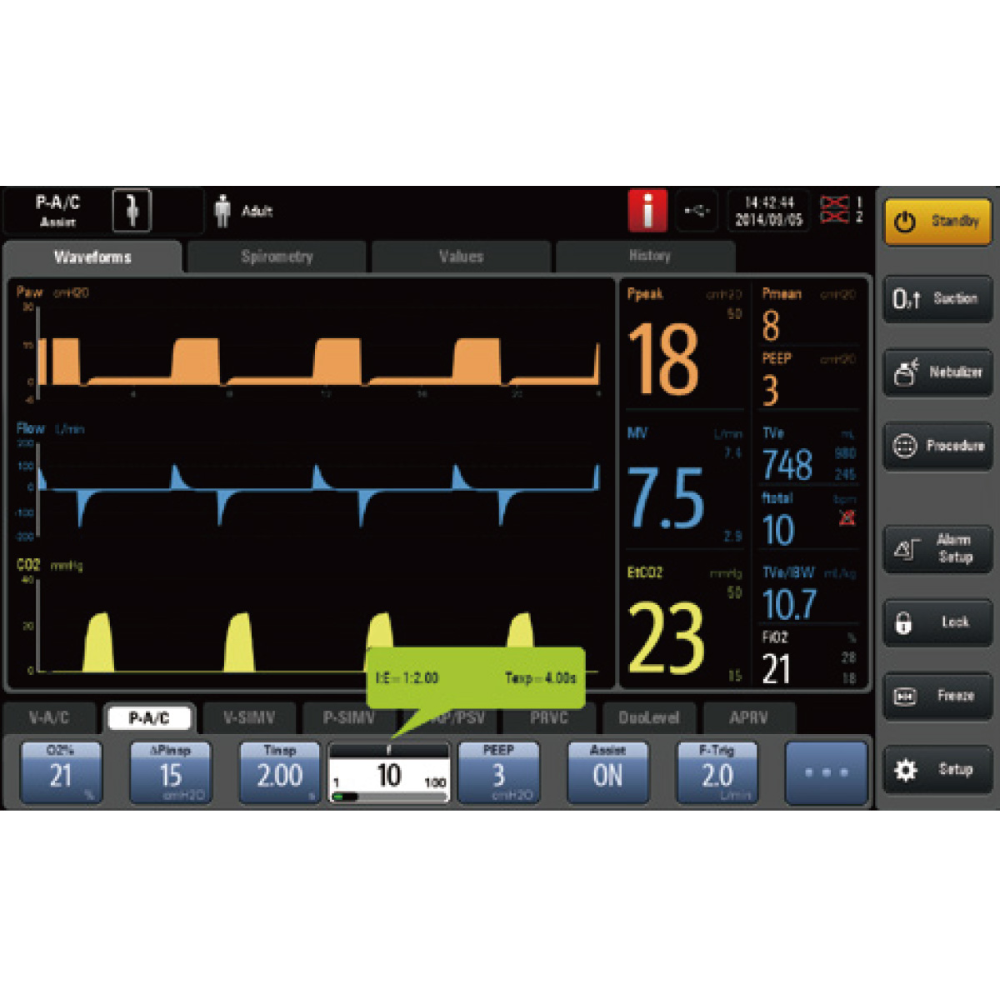

Waveforms, values, and mode settings on one screen
The 12-inch touchscreen shows live waveforms and measured values beside the active mode and its settings.
- Alarm range indicator
- Color-coded active alarms
- Auto alarm limits

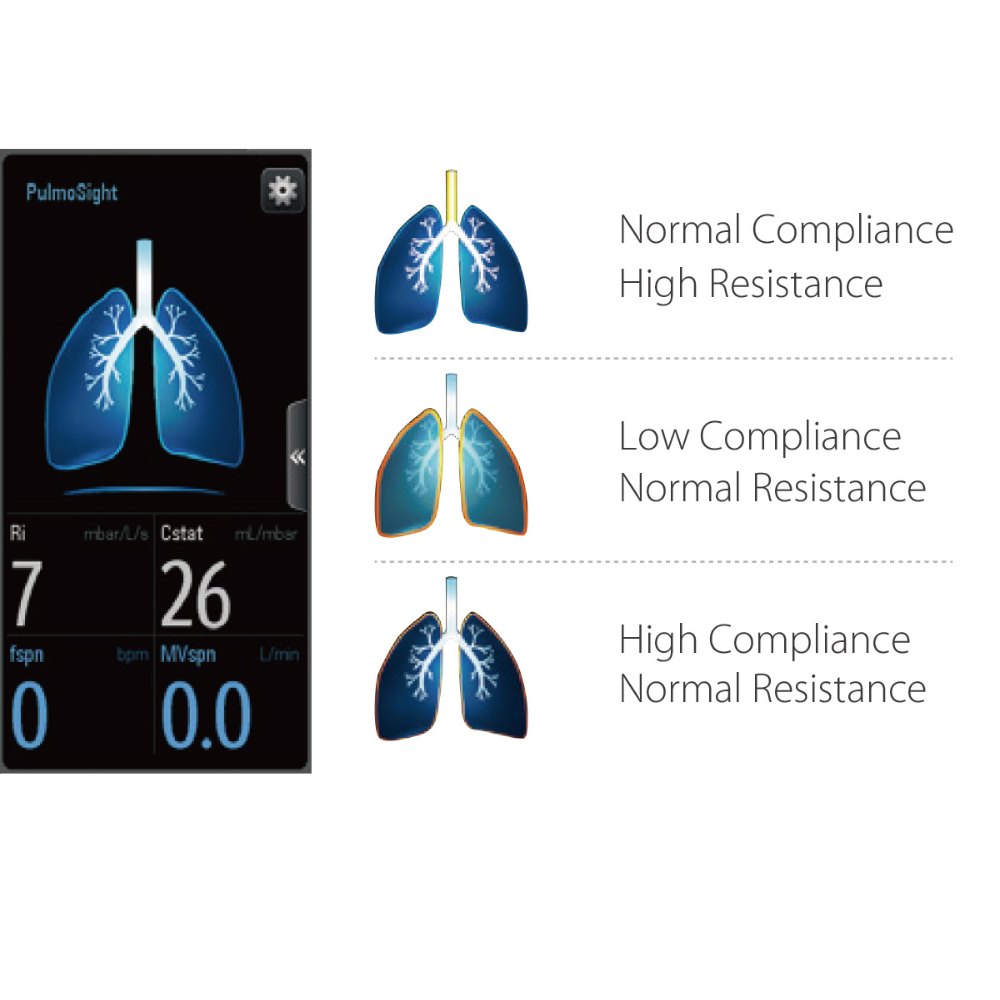

PulmoSight lung display
Compliance and resistance at a glance
PulmoSight draws the lungs on screen and changes the graphic to show resistance, compliance, and spontaneous breathing state. The ventilator prompts when compliance or resistance reads abnormal.

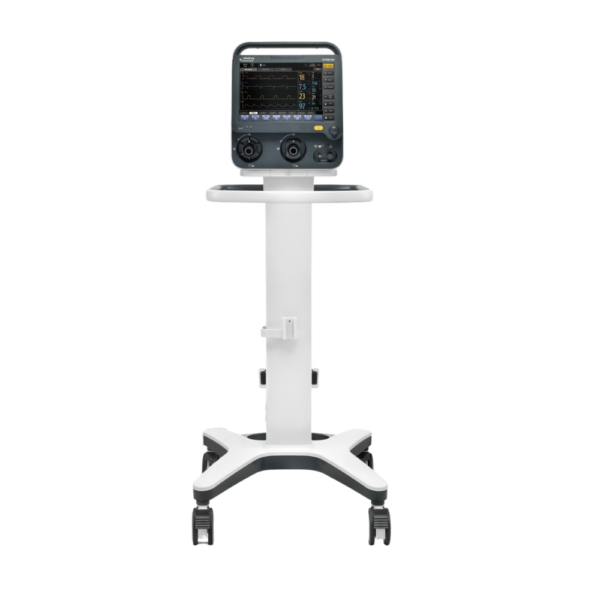

Stand and transport

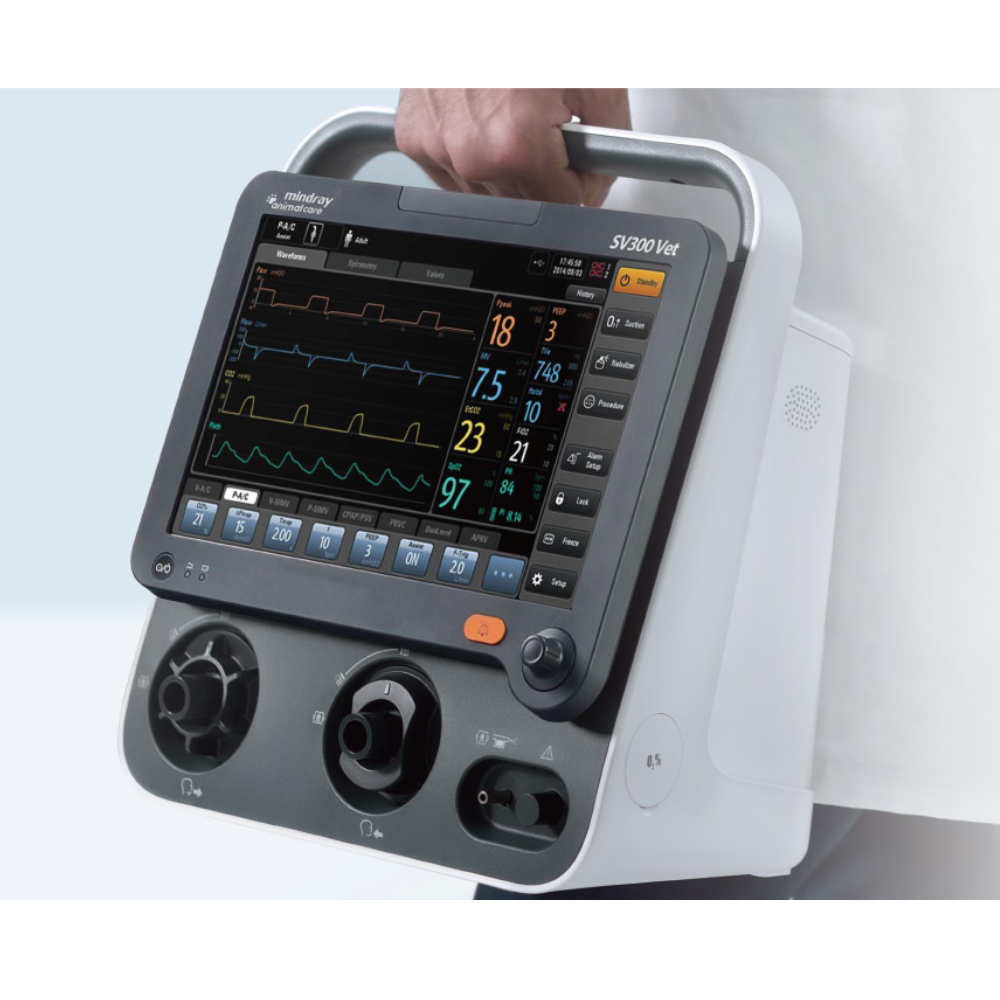

Compact head with a carry handle
The ventilator head has an integrated top handle. It mounts to the rolling stand in one step and releases with one key, and the stand's support system lets accessories connect on either side.
Veterinary Applications
The SV300 Vet is for veterinary ICU and critical care teams that ventilate patients across acuity levels.
- ICU and critical care ventilation
- Invasive ventilation of intubated patients
- Non-invasive ventilation
- Lung-protective ventilation with SI and APRV
- Weaning assessment with RSBI, NIF, and P0.1
- Hospitals without a central gas supply
