Description
Veterinary Patient Monitors

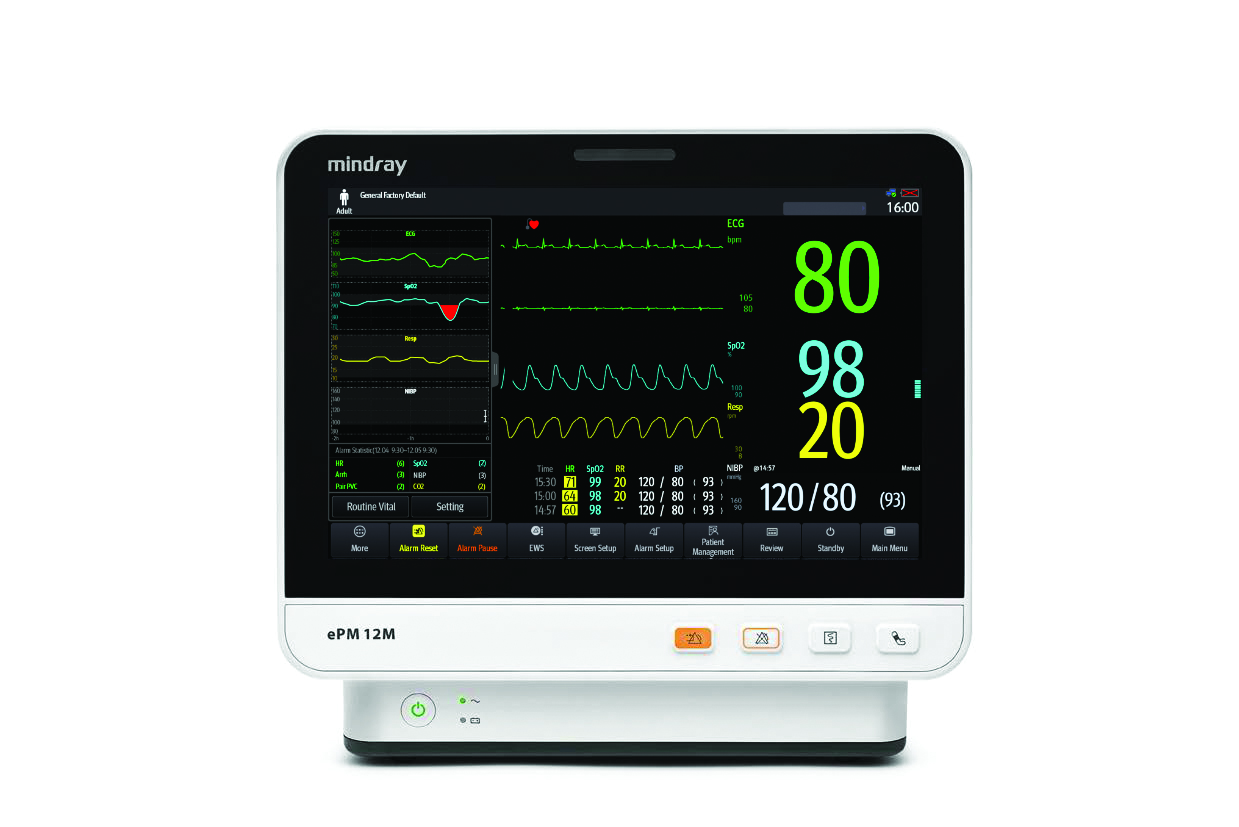

Mindray ePM 12M Vet Patient Monitor
Touchscreen veterinary monitor with species-aware vital signs and modular advanced parameters.
12.1 in
Capacitive touch display
ECG / NIBP / SpO2
Core parameters
Up to 4
IBP channels (when configured)
~4 hr
Battery backup
Overview
The Mindray ePM 12M Vet is a veterinary patient monitor for companion, farm, equine, and exotic animal workflows that need clear touchscreen operation and stable signals in real clinic conditions. A 12.1-inch high-definition capacitive display with gesture controls and two-step operations keeps common tasks fast for technicians and clinicians.
Veterinary-specific algorithms support NIBP in weak-signal conditions, multi-lead ECG analysis, and SpO2 performance in low perfusion and motion. Smart lead-switch adapts when a lead detaches and surfaces visible alarms. Target reference ranges and up to 25 customizable profiles help teams move between species without rebuilding the whole layout each time. A no-fan design reduces contamination paths; the shell tolerates common cleaners. Modular expansion covers CO2 (Artema), invasive blood pressure (up to 4-IBP), cardiac output, anesthetic gas, and O2 when those modules are configured. SpO2 technology options include Mindray, Masimo, and Nellcor.
Key Features
12.1-inch capacitive touch
High-definition display with smartphone-like gestures and two-step operations for faster chart-side control.
Veterinary core algorithms
Vet-tuned NIBP, multi-lead ECG, and SpO2 support for low perfusion and motion-prone patients.
CrozFusion signal stability
Helps maintain stable analysis during interference and reduce nuisance alarms during continuous monitoring.
Modular advanced parameters
Configure CO2, IBP, cardiac output, anesthetic gas, and O2 when the case mix requires them.
Profiles and target ranges
Up to 25 customizable profiles plus on-screen target reference ranges for multi-species services.
Clinic-ready chassis
No-fan design, durable shell, lifting handle, and battery backup up to about 4 hours for intra-op and transport inside the hospital.
Available options
- SpO2 technology: Mindray, Masimo, or Nellcor
- Optional IBP (up to 4 channels)

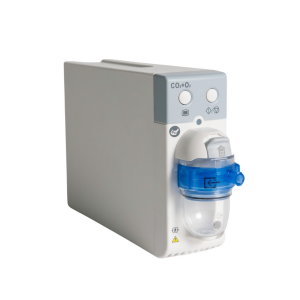

- Optional CO2 (Artema sidestream / module path)
- Optional cardiac output, anesthetic gas (AG), and O2
- Connectivity / telemetry: wired or wireless configuration
- Optional rolling stand and veterinary accessory kits
- ECG lead set: 3/5-lead configurations
Veterinary Applications
Use the ePM 12M Vet for intraoperative monitoring, recovery, and ward or ICU observation in multi-species veterinary hospitals. Suited to companion-animal OR and dental suites, mixed large-animal or exotic services that need profile-based defaults, and rooms that expand into EtCO2 or invasive pressure for higher-acuity cases. Confirm SpO2 brand, IBP count, gas modules, and wired or wireless kit before comparing to other Mindray ePM configurations.
