Description
Integrated Concentrator Option

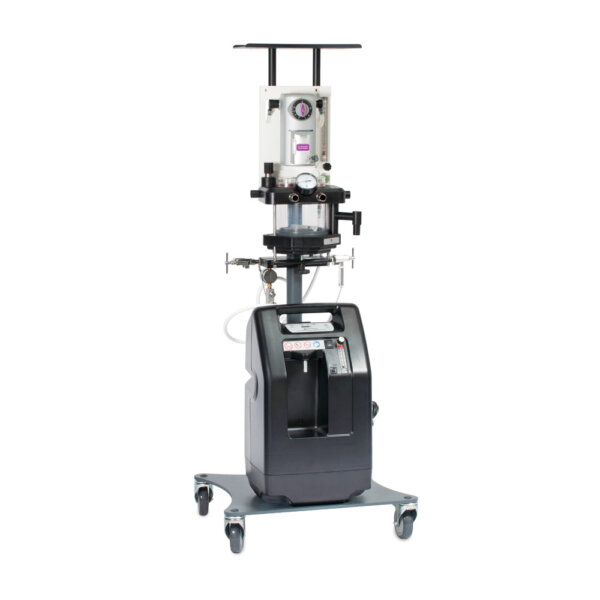

Moduflex Access2 Veterinary Anesthesia Machine with Integrated 5 LPM Concentrator
An Access2 machine on a flat base sized for a 5 LPM oxygen concentrator, with or without the concentrator fitted.
5 LPM
Concentrator option
0.1-4 LPM
Oxygen flowmeter
1500 ml
CO2 absorber
50 LPM
Flush calibration
Overview
This version of the Moduflex Access2 is built on a flat base that holds a 5 LPM oxygen concentrator, so the machine and its oxygen source share one footprint. It is offered in two configurations, with the concentrator fitted or without it, and both include a dual cylinder holder and a 12 x 14 inch shelf assembly.
The Access2 head and its absorber head are machined precisely, which cuts down the number of connections. Oxygen is set on a 0.1 to 4 LPM flowmeter with a rotating float, the flush valve is recessed and calibrated at 50 LPM, and the fresh gas outlet uses a quick-connect fitting. The vaporizer mounts on a cage-mount manifold, the 1500 ml CO2 absorber has a condensation trap, and a circuit holder on either side of the absorber head lets patient circuits hang to dry next to the machine.
The standard Moduflex Access2 is the other Access2 build in our veterinary anesthesia machine range, on a five-wheel spider base or as a wall-mount configuration.
Key Features
Flat concentrator base
The base is shaped to carry a 5 LPM oxygen concentrator under the machine.
With or without concentrator
Order the machine with the concentrator fitted, or without it.
Cage-mount manifold
The vaporizer installs on a cage-mount compatibility manifold.
1500 ml absorber
A large CO2 absorber with a condensation trap that is quick to refill with soda lime.
Recessed 50 LPM flush
The flush valve is recessed and calibrated at 50 LPM.
Circuit holders
Holders on both sides of the absorber head keep patient circuits drying near the machine.
Veterinary Applications
This Access2 build suits clinics that want the oxygen source in the same footprint as the anesthesia machine.
- Rooms that run the machine from its own 5 LPM concentrator
- Clinics that keep cylinders on the machine as well, with the dual cylinder holder
- Practices that use cage-mount vaporizers
- Rooms that add a Bain circuit through the optional adaptor
Available configurations
| Configuration | Oxygen concentrator |
|---|---|
| Without concentrator | Not fitted; flat base ready for a concentrator |
| With 5 LPM concentrator | 5 LPM oxygen concentrator fitted to the base |
Included
Included
- Dual cylinder holder
- Y patient circuit
- One 2 liter rebreathing bag
- One 3 liter rebreathing bag
- Fresh gas tube
- Krytox grease
- Evacuation tube, 150 cm (5 ft)
- Shelf assembly, 12 x 14 in (30.48 x 35.56 cm)
Available options
- Bain circuit adaptor
- Circuit pressure alarm
- Scavenger interface
