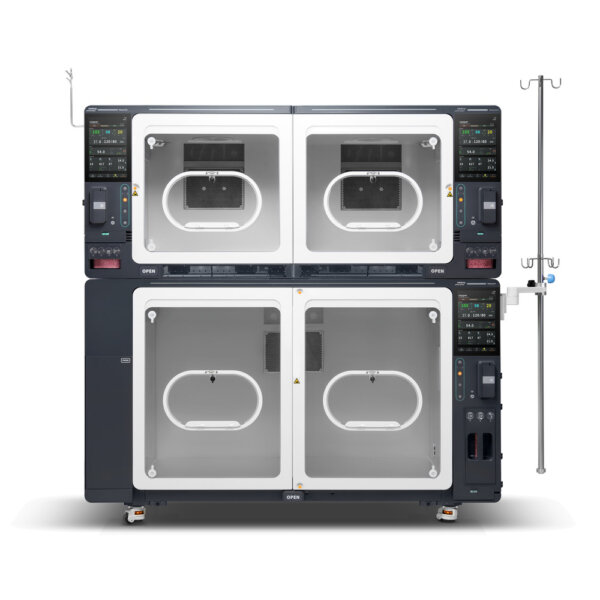

Mindray ViCare U7 Veterinary Intensive Care Cabin
A stacked multi-compartment ICU cabin with IV pole that combines oxygen, temperature, infusion, patient monitoring, and video in one unit.
40% in 2 min
Fast oxygen mode
90%
Max O2 concentration
3
Temperature control modes
2 h
Door access on battery
Overview

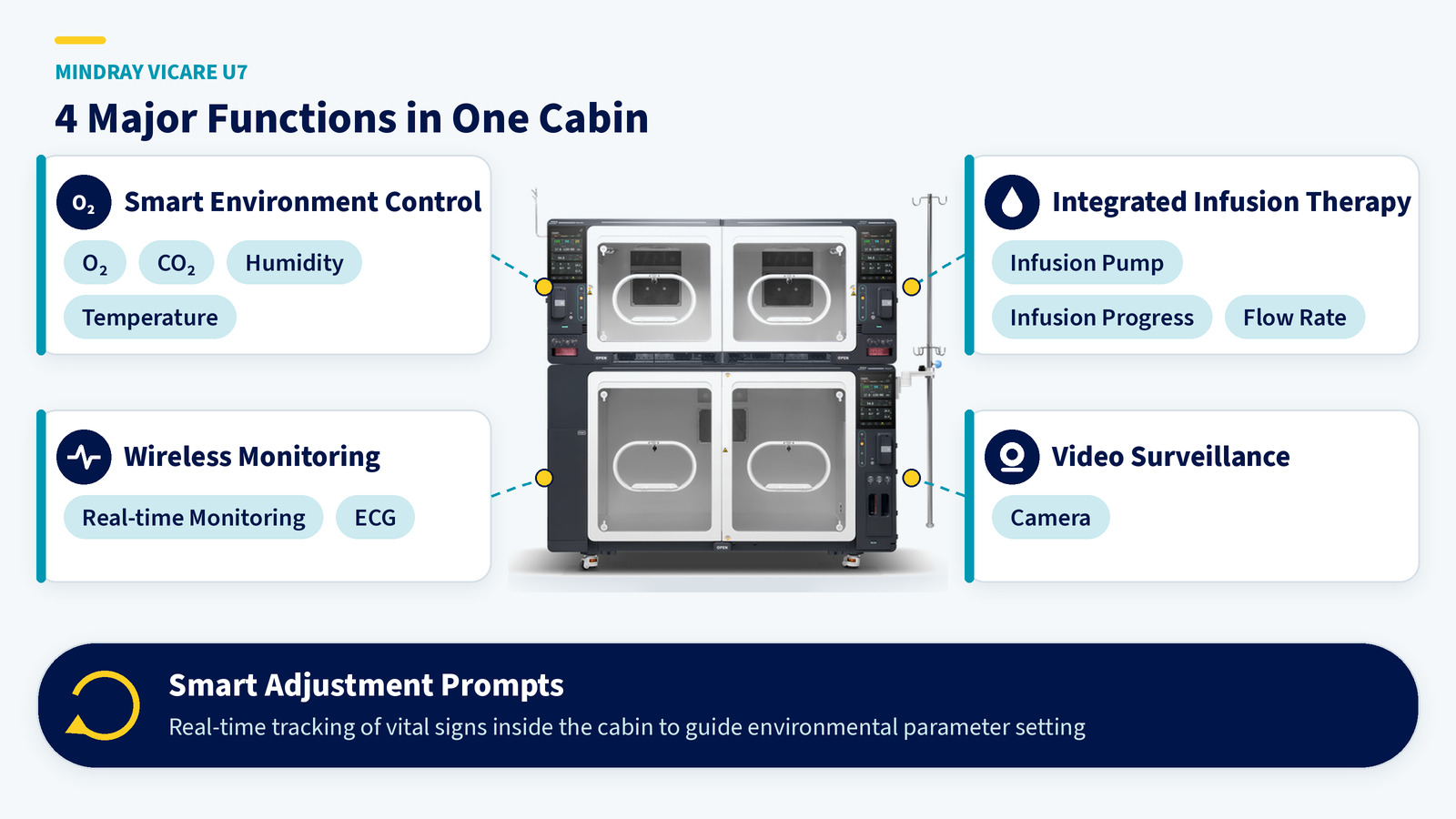

The Mindray ViCare U7 is a stacked multi-compartment intensive care cabin with IV pole for critically ill dogs and cats. Sold as one unit, it puts oxygen therapy, temperature control, fluid management, wireless vital signs monitoring, and a camera in a single enclosure, so the team can stabilize and watch a patient without opening the door.
The cabin reads its own O2, CO2, humidity, and temperature and links them to the patient. When SpO2 drops below 95%, the screen suggests 50% O2. When body temperature drops below 98.1 °F (36.7 °C), it suggests 82.4 °F (28 °C) air and floor settings. Staff accept or ignore each prompt with one touch.
Wireless monitoring sends temperature, HR, NIBP, SpO2, and ECG to a VetiNet CMS central station, where staff can view them on desktop computers and mobile devices.
Key Features
Fast oxygen mode
Raises cabin O2 to 40% within 2 minutes, with up to 90% maximum concentration for emergency oxygen support.
SpO2-linked oxygen control
Tracks SpO2 in real time and sets the target O2 concentration with one touch. Oxygen pauses when the door opens.
Three temperature modes
Air conditioning, floor heating and cooling, and ambient air heating, linked to patient body temperature.
Built-in infusion with fluid warming
An integrated pump shows progress and flow rate, and the warmer adjusts heat to the infusion rate.
Wireless monitoring and camera
Wearable modules measure temperature, HR, NIBP, SpO2, and ECG. An integrated camera allows remote viewing with the curtains closed.
5-layer safeguard design
Battery door access for 2 hours after power loss, a mechanical quick release, emergency vents, gas-electrical isolation, and a multi-CPU system.
Air, humidity, and lighting

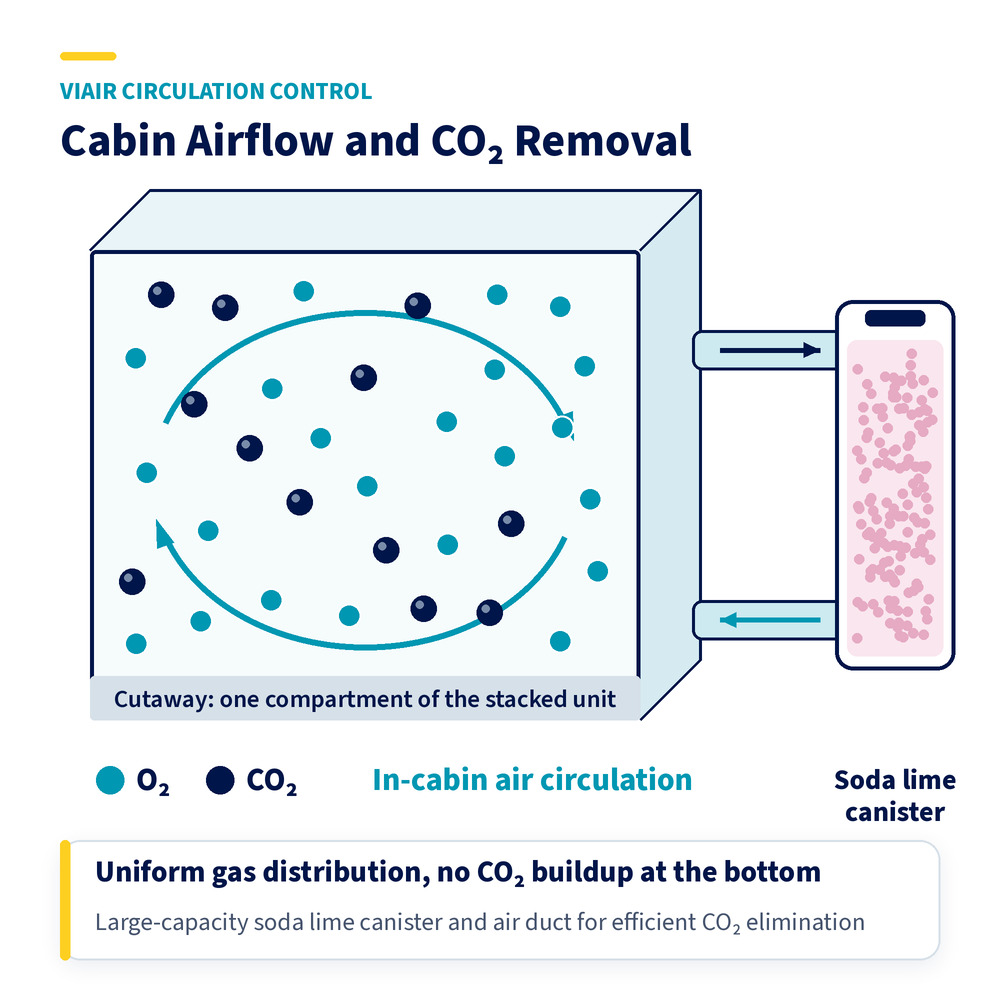

High-temperature steam humidification limits bacterial growth and limescale. ViAir circulation spreads gas evenly and keeps CO2 from pooling at the floor, and a large soda lime canister removes CO2. Red and white lighting switches on a timer.
Available options
- Central monitoring: VetiNet CMS central monitoring system
Veterinary Applications
The ViCare U7 is for veterinary ICU and emergency teams caring for critically ill patients. Intensive post-operative care like this has been shown to improve recovery outcomes.
- Emergency oxygen therapy
- Hypoxemia management
- Anesthesia recovery
- Surgical complications
- Respiratory distress
- Hypothermia and fluid warming
