Veterinary Surgical Tables
Panno-Med OP-System V-Top Veterinary Surgical Table
Specialty stainless V-Top OR table with continuous gas-spring V and powered multi-axis positioning.
~265 lb
Load capacity
28.3–43.0 in
Electric height
10° / 40°
Longitudinal / lateral tilt
Stainless V
Continuous gas-spring V
Overview

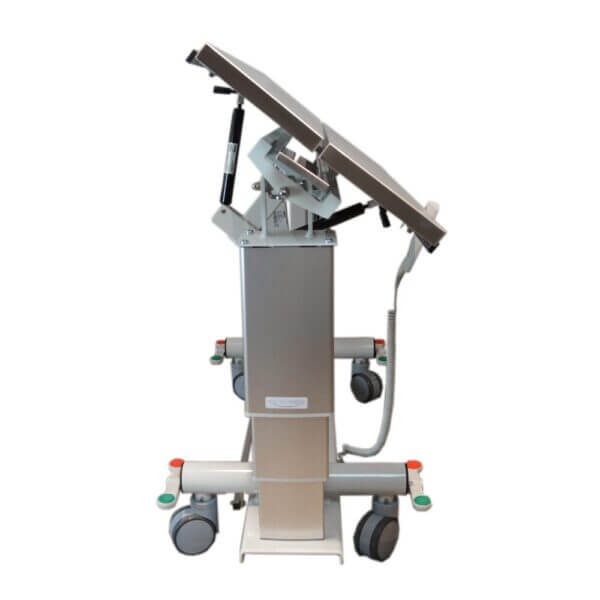

The Panno-Med OP-System V-Top is a premier specialty veterinary surgical table for ophthalmology and advanced orthopedic surgery in emergency, critical care, university, and research facilities. A stainless steel V-Top with continuous gas-spring adjustment supports secure patient positioning for complicated procedures. Sitting or standing working heights are practical for longer specialty cases.
Electric height, longitudinal tilt to 10° both directions, and lateral tilt to 40° are controlled from the handheld remote. Standard scope includes the OP-System on castors, OP rails (set of 2), four quick-release cleats, and a hand switch. Choose movable castors or an optional fixed base in cord or battery versions. Optional joystick and joystick module are available, configured separately.
This listing is the V-Top configuration (URL slug may still say slide-top). For radiolucent sliding flat tops, see the OP-System Flat-Top; for laparoscopy cut-out geometry, see the OP-System X-Top.
Key Features
Stainless V-Top
Stainless steel V surface built for specialty positioning, not a radiolucent sliding flat top.
Continuous gas-spring V
One-hand gas-spring V adjustment for secure patient support during ophthalmology and orthopedic work.
Powered height and tilt
Electric height 28.3–43.0 in, longitudinal tilt 10° both directions, and lateral tilt to 40° via hand remote.
Sitting or standing ergonomics
Working height supports surgery while sitting or standing for longer specialty procedures.
Cord or battery power
Movable castor platform (cord or battery) or optional fixed platform (cord or battery).
Rail-ready standard kit

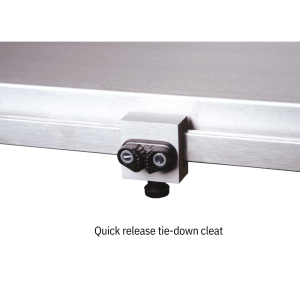

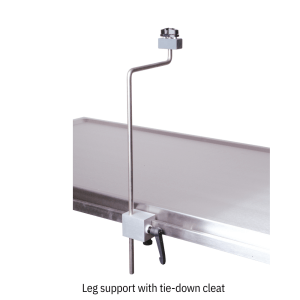

OP rails (2), four quick-release cleats, and hand switch included; optional joystick available.
Available options
- Power: cord or battery
- Base: movable castors or optional fixed platform
- Optional joystick and joystick module

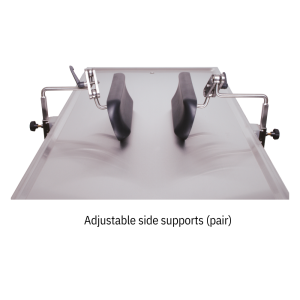

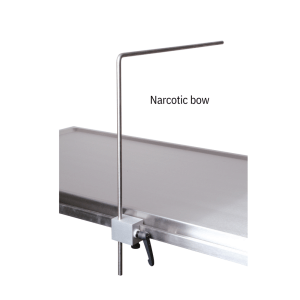

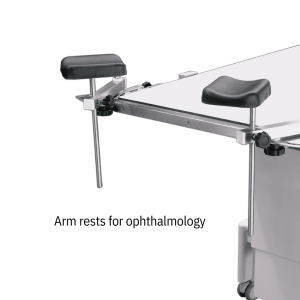

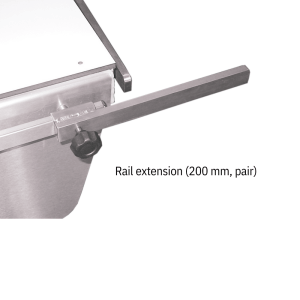

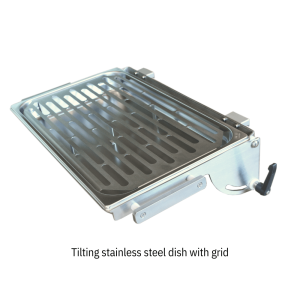

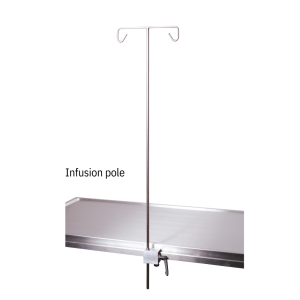

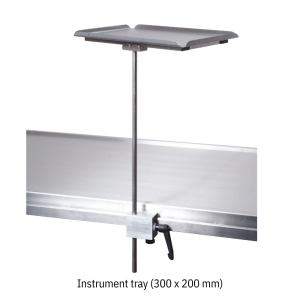

- Optional rail-mounted accessories (see Optional Panno-Med Table Accessories)
- Not a sliding radiolucent top; see OP Flat-Top for that configuration
Veterinary Applications
Use the OP-System V-Top for specialty companion-animal surgery that benefits from a stainless V surface and powered multi-axis tilt: ophthalmology, advanced orthopedics, and other complicated procedures where secure V positioning matters. Common environments include emergency and critical care hospitals, university teaching ORs, and research facilities that need sitting-height specialty work without a sliding radiolucent flat top.
