Veterinary Surgical Tables

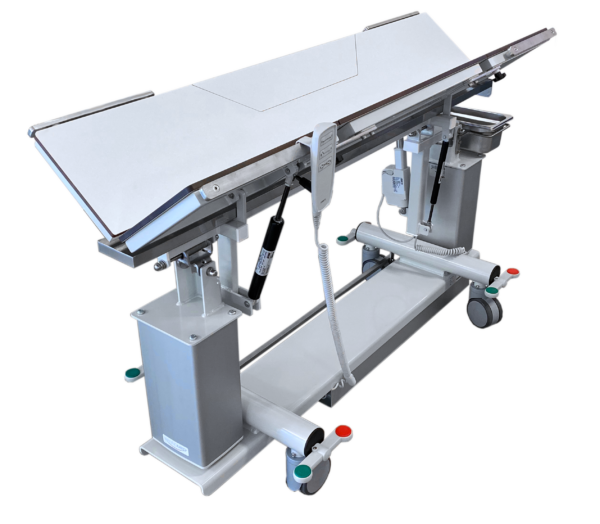

Panno-Med OP System X-Top Veterinary Surgical Table
X-top specialty OR table with removable laparoscopy cut-outs, gas-spring V, and powered multi-axis positioning.
~265 lb
Lifting capacity
~22.8–38.6 in
Electric height
10° / 40°
Longitudinal / lateral tilt
Removable
Laparoscopy cut-outs
Overview
The Panno-Med OP System X-Top is a premier specialty veterinary surgical table for ophthalmology and advanced orthopedics, with an X-shaped top that combines V-shape positioning and individually removable laparoscopy cut-outs for closer patient access. A high-stability lifting-column chassis and expanded space under the tabletop support complex specialty work in emergency, critical care, university, and research environments.
Electric height, longitudinal tilt to 10° both directions, and lateral tilt to 40° are controlled from the hand switch. Continuous gas-spring V adjustment supports secure positioning. A detachable easy-clean drain gutter and drip tray ship in the standard scope. Choose optionally movable double castors (directional and central locking on a single pedal) or a fixed table, in electric or battery power. Optional joystick is available, configured separately.
Differentiate within the OP family: Flat-Top for radiolucent sliding planes; V-Top for stainless continuous V without cut-outs; X-Top for X geometry plus removable laparoscopy cut-outs.
Key Features
X-top with laparoscopy cut-outs
X-shaped top with individually removable / reinstallable cut-outs on both sides for closer access during laparoscopy and specialty work.
Continuous gas-spring V
One-hand gas-spring V adjustment for secure patient support during ophthalmology and advanced orthopedic procedures.
Powered height and tilt
Electric height with longitudinal tilt to 10° both directions and lateral tilt to 40°.
Drain gutter and drip tray
Detachable easy-clean drain gutter and drip tray included for fluid management.
Stable chassis, flexible base
High-stability lifting column with optional double castors (directional + central lock) or fixed table.
Cord or battery power
Electric or battery versions with hand switch; optional joystick configured separately.
Available options
- Power: electric or battery
- Base: optionally movable double castors or fixed table
- Optional joystick
- Optional rail-mounted accessories (side rails, tie-down cleats, IV poles, instrument trays, drip tray)
- Not compatible with the Panno-Med dental tray.
Veterinary Applications
Use the OP System X-Top for specialty companion-animal surgery that needs closer lateral access through removable laparoscopy cut-outs: ophthalmology, advanced orthopedics, laparoscopy, and other complex specialty procedures. Sitting or standing working heights suit longer cases. Common buyers match the OP-System family, emergency and critical care hospitals, university teaching ORs, and research facilities, when X geometry and cut-outs are preferred over a flat sliding radiolucent top or a stainless V-Top without cut-outs.
