Anesthesia Machines

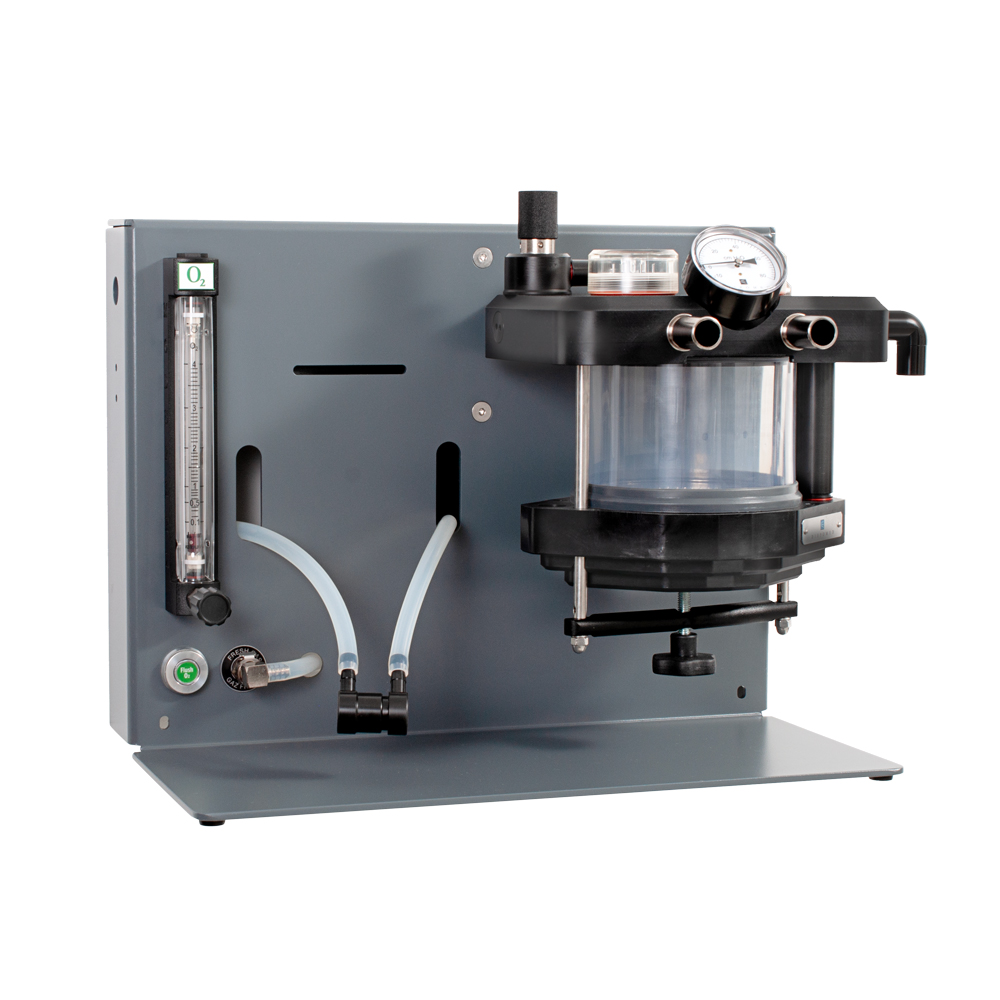

Moduflex Multiflex Veterinary Anesthesia Machine
Flexible tabletop or fixed wall-mount Multiflex platform with a full circle-system absorber.
0.1-4 LPM
Oxygen flowmeter
1500 ml
CO₂ absorber
5 year
Component warranty
Canada
Designed & manufactured
Overview
The Moduflex Multiflex is built for clinics that need flexible placement without giving up a full circle-system absorber. This configuration supports tabletop use or fixed wall-mount; a swivel wall-arm version is available under Additional Configurations.
An aluminum frame and padded base support stable day-to-day use. Pair with a cage-mount vaporizer and the scavenger path that matches your facility when quoting.
Key Features
Flexible mounting
Tabletop or fixed wall-mount on this model; swivel wall-arm available as a linked configuration.
0.1-4 LPM flowmeter
Large, easy-to-read scale for oxygen delivery control.
Recessed flush
Flush valve set back to reduce accidental activation.
Quick-connect fresh gas
Secure outlet for breathing-circuit changes.
Cage-mount vaporizer manifold
Straightforward vaporizer installation path.
1500 ml CO₂ absorber
Includes condensation trap to help limit water in absorbent.
Stable base
Four pads under the base for added stability and less vibration.
Aluminum frame
Clinical workstation construction; designed and manufactured in Canada.
Included with the Machine
- Y patient circuit
- One 2 liter rebreathing bag
- One 3 liter rebreathing bag
- Fresh gas tube
- Krytox grease
- Evacuation tube (150 cm / 5′)
Vaporizer and scavenger interface are not included unless specified on your quote.
How It Works
Place
Set the Multiflex on a table or mount it to the wall using this configuration (or choose the swivel wall-arm configuration when reach matters).
Configure
Install a cage-mount vaporizer and connect the breathing circuit, fresh gas path, and scavenger interface required for your room.
Quote ready
Add this mount, the swivel configuration, and related accessories to one Infinium quote.
