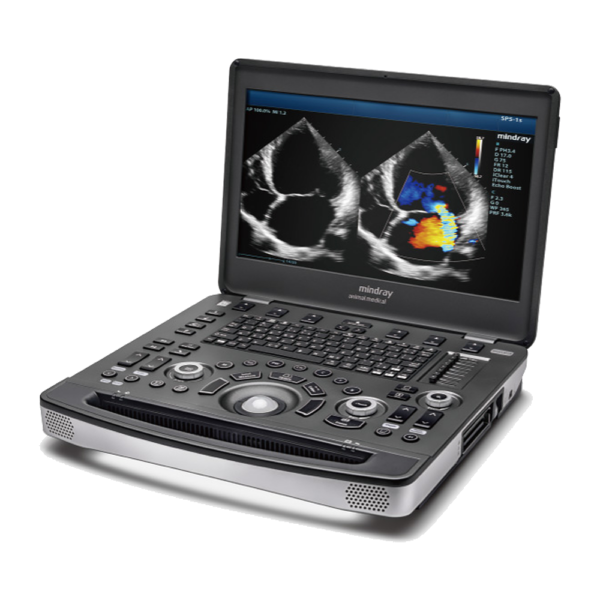

Mindray Vetus M10 Compact Veterinary Ultrasound System
A compact veterinary ultrasound with cardiac quantification, high-frequency linear transducers, and a cart that works stationary or mobile.
iQ+
mQuadro+ platform
3T
Transducer technology
8 ROI
TDI QA regions
3 lines
Free Xros M
Overview
The Mindray Vetus M10 is a compact veterinary ultrasound built on the intelligent mQuadro+ (iQ+) platform, which pairs signal transmission and reception processors for image resolution and echo detection. It uses single crystal and ComboWave transducers with 3T technology for abdominal, cardiac, and complex cases.
Cardiac tools include Auto EF, which finds diastolic and systolic frames in a 2D clip and outputs EDV, ESV, EF, and SV; Free Xros M with up to 3 sample lines at any angle; TDI QA across up to 8 myocardial regions; and TT QA for angle-independent left ventricular function with bull's-eye mapping.
High-frequency linear transducers, the L20-5s and the L16-4Hs hockey stick, cover abdominal, ocular, and MSK imaging in dogs, cats, and other animals. iNeedle+ adds needle visualization on linear and convex transducers, and the cart can stay put or roll between rooms.
Key Features
mQuadro+ (iQ+) platform
Integrated transmit and receive processors for image resolution and echo detection in a compact system.
Single crystal and ComboWave
3T transducer technology on single crystal and ComboWave transducers for abdominal and cardiac imaging.
Auto EF
Finds diastolic and systolic frames in a 2D clip and reports EDV, ESV, EF, and SV (with the SP5-1s).
TDI QA and TT QA
TDI QA analyzes up to 8 myocardial regions; TT QA tracks speckle motion for left ventricular function and bull's-eye maps.
High-frequency linear
L20-5s and L16-4Hs transducers for abdominal, ocular, and MSK work in dogs, cats, and other animals.
iNeedle+
Second-generation needle visualization with multi-angle auto adjustment and a side-by-side dual image view.
High-frequency linear transducers

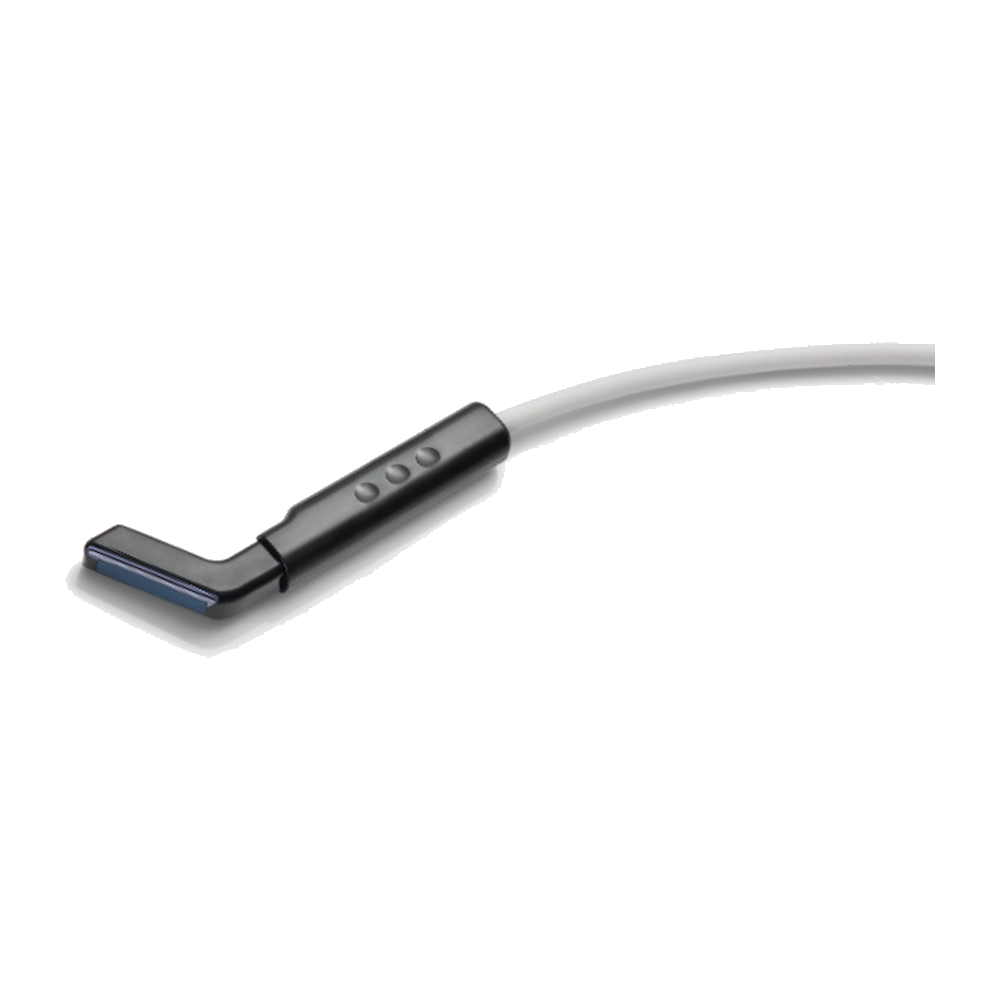

L20-5s and the L16-4Hs hockey stick
Both are high-frequency linear transducers for abdominal, ocular, and MSK scans in dogs, cats, and other animals.
iNeedle+ adds needle visualization on linear and convex transducers, with multi-angle auto adjustment and a side-by-side dual image view.
Workflow tools
Protocols and guidance built in

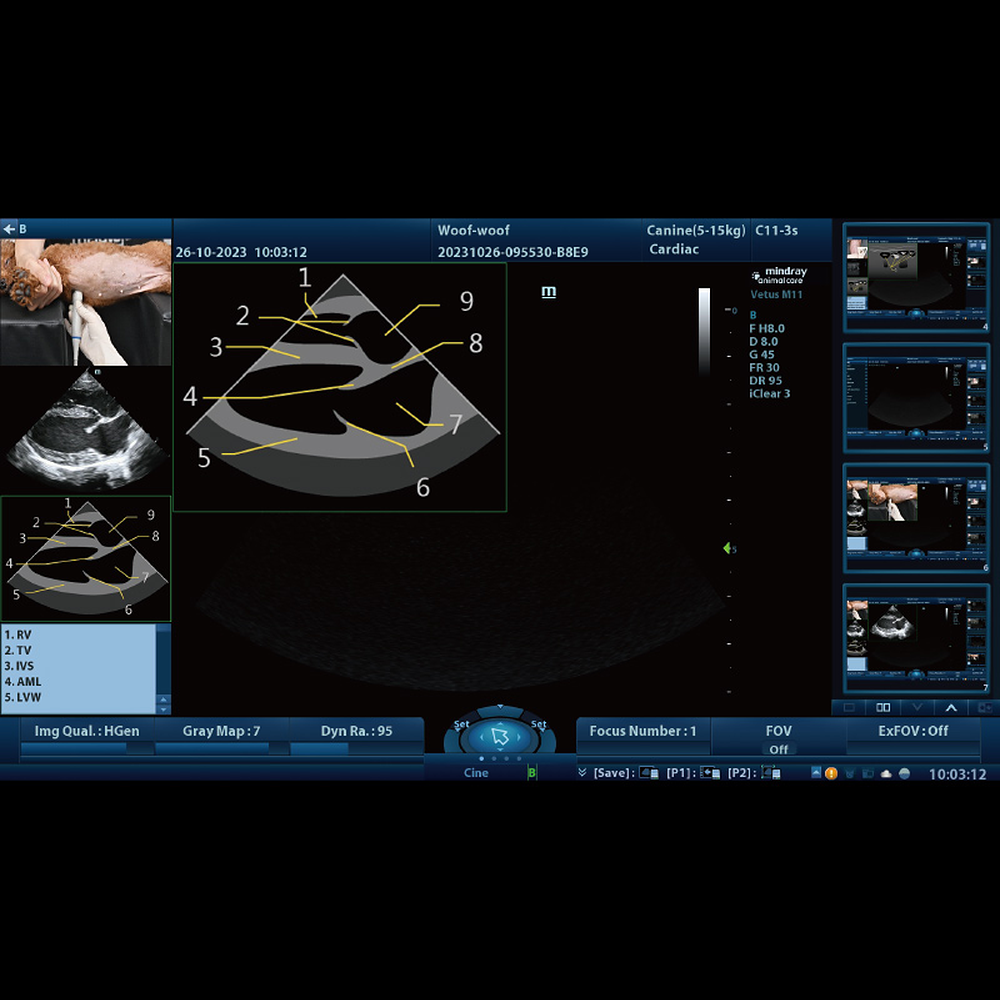

iWorks runs veterinary protocols for cardiac and abdominal exams, and iScanHelper shows reference images and a demonstration guide while scanning.
Free Xros M places up to 3 sample lines at any angle for anatomical M-mode measurements.
Available options
- Mobile cart with cable management, multi-transducer connector, and storage
- Single crystal SP5-1s phased array (required for Auto EF)
- High-frequency linear transducers: L20-5s, L16-4Hs
- iNeedle+ needle visualization
Veterinary Applications
The Vetus M10 suits practices that need cardiac and abdominal capability in a system small enough to move between rooms.
- Echocardiography
- Abdominal imaging
- Ocular imaging
- Musculoskeletal
- Needle-guided procedures
- Canine and feline patients
