Mindray Vetus E5 Portable Veterinary Ultrasound System
A hand-carried veterinary ultrasound for primary care, with a sealed control panel, automatic measurement tools, and a trolley or backpack for moving it.
Under 8.8 lb
Weight with batteries
15.6 in
Full HD monitor
1 TB
SSD storage
1.5 h+
Continuous scanning
Overview

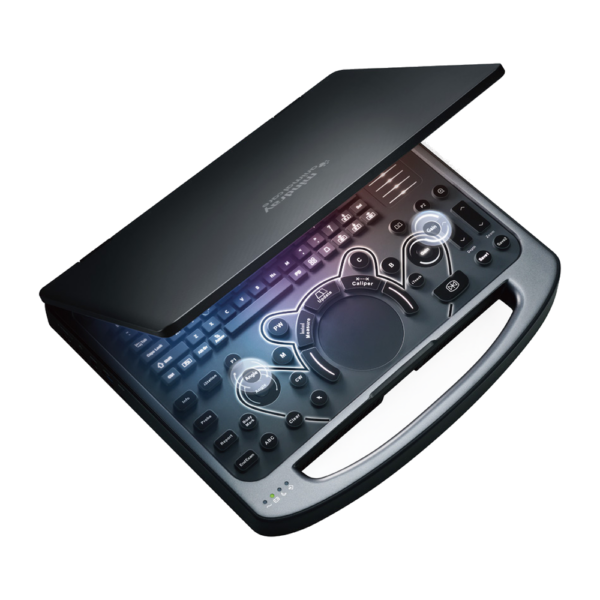

The Mindray Vetus E5 is a portable veterinary ultrasound for primary care. It weighs under 8.8 lb (4 kg) with batteries, folds to 1.8 in (45 mm) thick, and opens to a 15.6-inch full HD monitor over a backlit keyboard and control panel.
The protective control panel is waterproof, dustproof, and hair-resistant and wipes clean for disinfection. A touch-sensitive gain control and lit TGC built into the panel make adjustments easy in a dark ultrasound room.
Imaging tools include HR Flow for micro-vascular and complex flow in color and power Doppler, iTouch one-click optimization, iClear speckle suppression, Natural Touch Elastography, and contrast imaging. Smart Calc traces and measures lesions automatically, and Smart HRI compares liver and renal cortex brightness from a 2D image to assess liver steatosis.
Key Features
Protective control panel
Waterproof, dustproof, and hair-resistant panel that is easier to clean and disinfect.
Touch-sensitive gain
A touch gain control and lit TGC on the panel for quick adjustments in a dark room.
HR Flow
Shows micro-vascular and complex flow patterns in color and power Doppler modes.
Smart HRI
Recognizes liver and renal cortex in a 2D image and calculates their brightness ratio to assess liver steatosis.
Smart Calc
Traces a lesion boundary automatically and returns several measurements at once.
iWorks and iReport
Animal-specific protocols add annotations, body marks, and color; iReport builds reports from templates.
Protective control panel
Sealed against fluid, dust, and hair

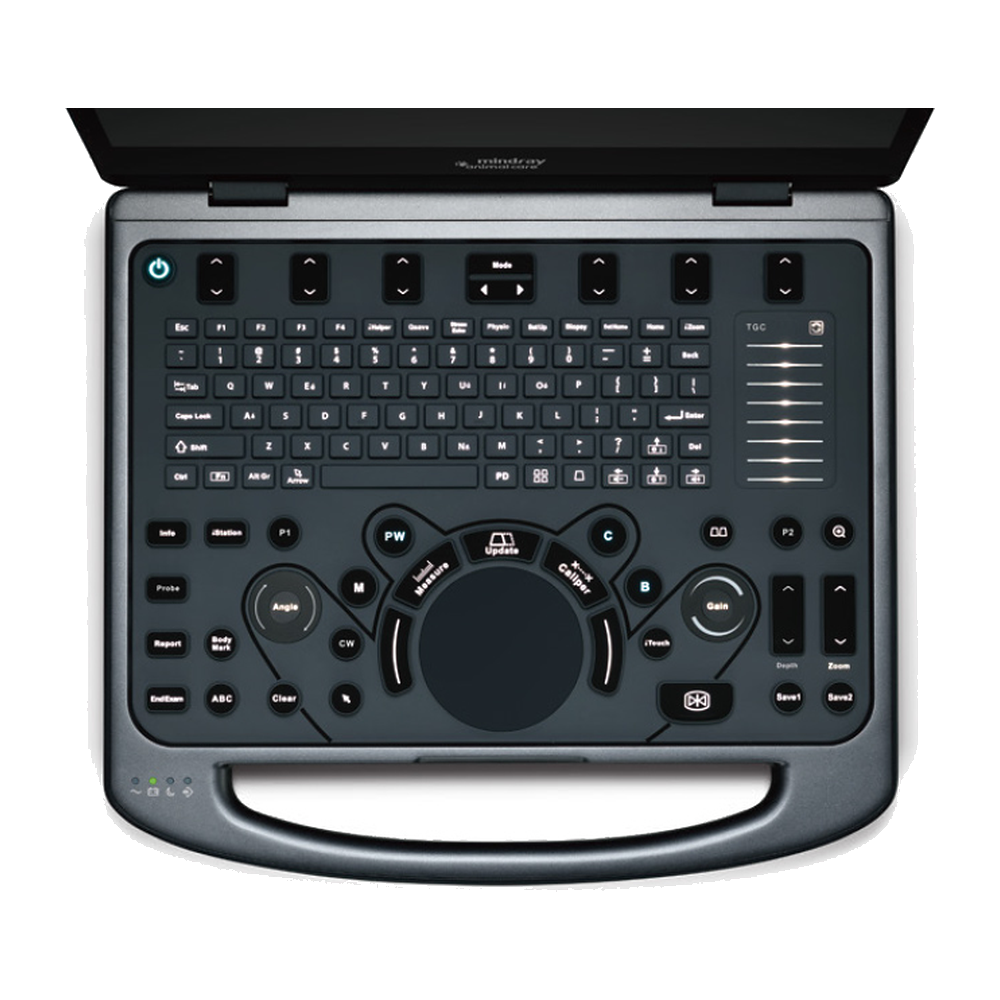

The control panel resists water, dust, and hair and wipes clean between patients. The touch-sensitive gain control and lit TGC sit in the panel itself.
Six user-defined keys and a backlit QWERTY keyboard handle the rest, and the system boots in under 30 seconds.
Moving the system
Trolley, trolley case, or backpack

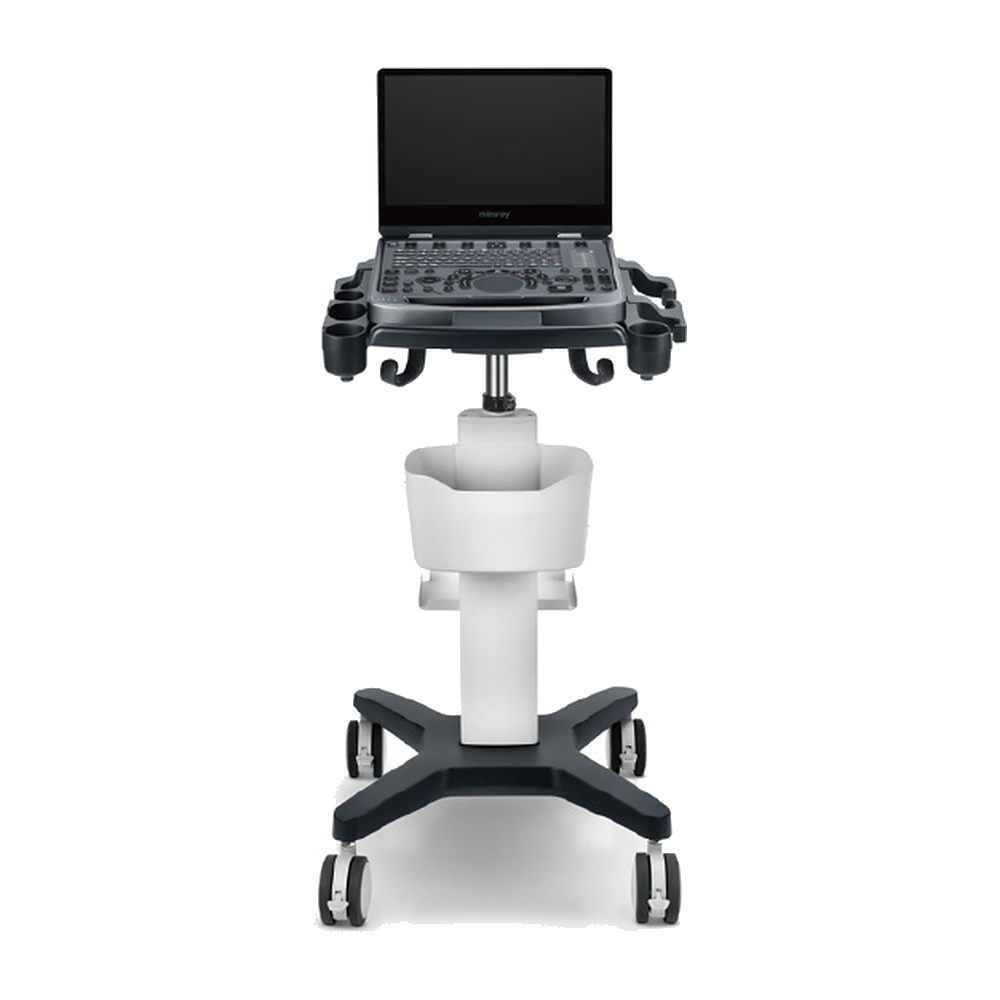

The Vetus E5 rides on its trolley in the clinic and packs into a trolley case or backpack for travel. Up to 2 transducers stay connected.
The replaceable battery gives more than 1.5 hours of continuous scanning, and the optional 4-battery U-Bank adds more.
Available options
- Transducers: C6-1m, mC11-3m, L14-3m, L13-3m
- Trolley, trolley case, or backpack
- U-Bank with 4 batteries (6.3 lb, 2.87 kg)
- Contrast imaging and contrast QA
- Smart 3D, Smart Bladder, IMT, iNeedle
- Footswitch, barcode reader, printers
Veterinary Applications
The Vetus E5 fits primary care practices that want abdominal, reproduction, and small parts imaging in a system light enough to carry.
- Abdominal imaging
- Reproduction
- Small parts
- Musculoskeletal
- Liver steatosis screening with Smart HRI
- Large animal abdomen and reproduction with the C6-1m
