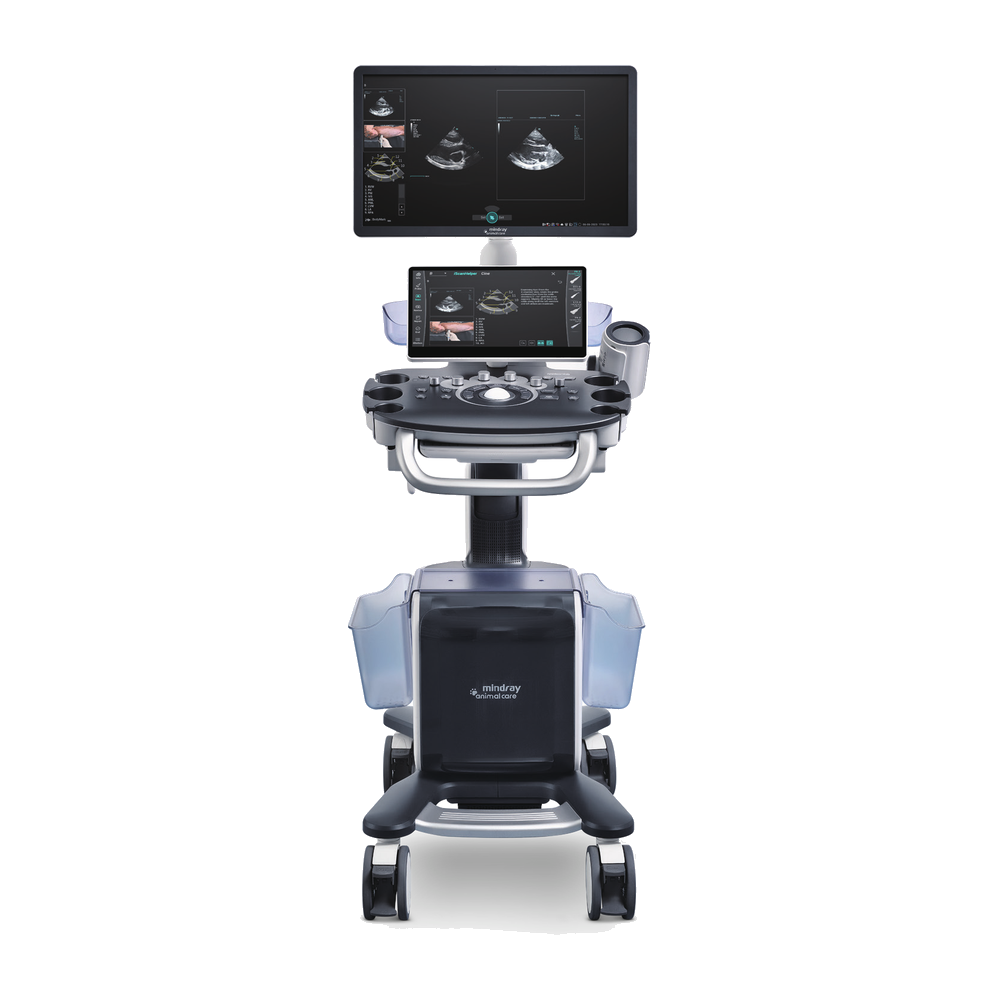

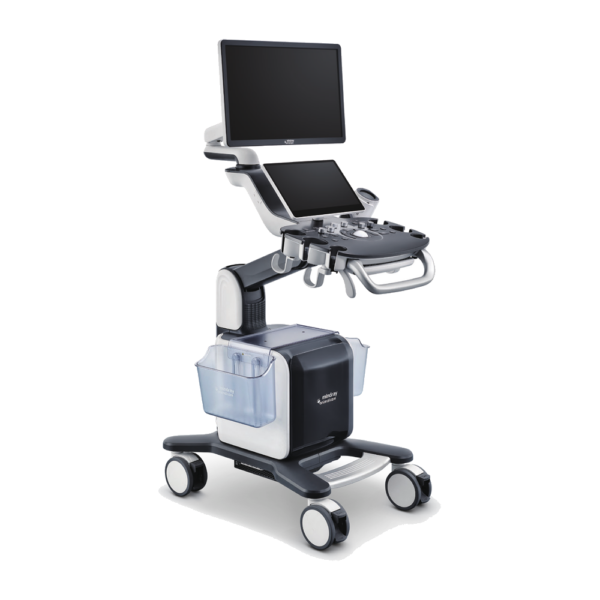

Mindray Vetus 50 Veterinary Ultrasound System
A practical ZST+ cart-based ultrasound with ComboWave transducers, dedicated presets, and built-in learning tools for abdominal, cardiac, and reproduction exams.
21.5 in
Full HD monitor
13.3 in
Touchscreen
4
Active transducer ports
26 dB
Operating noise
Overview
The Mindray Vetus 50 is a cart-based veterinary ultrasound built on the ZST+ platform with ComboWave transducers. ComboWave uses a composite piezoelectric crystal with 3T technology (3 matching layers) to widen the acoustic spectrum and lower acoustic impedance for even image resolution.
Dedicated presets give clear images without much parameter adjustment. Tools include Natural Touch Elastography for soft tissue stiffness, HR Flow for small vessels and complex flow, HD Scope for added detail in a selected area, Smart Calc lesion tracing, and four TDI modes (TVI, TVM, TVD, TEI) for myocardial motion.
For practices building ultrasound skills, iScanHelper shows more than 100 standard reference images, transducer position videos, and anatomical diagrams on the monitor and touchscreen during scanning. iWorks steps through each view and adds annotations and measurements, and iMeasure flags values outside a preset range.
Key Features
ComboWave 3T transducers
Composite crystal transducers with 3 matching layers for wider bandwidth and uniform resolution.
iScanHelper
More than 100 reference images, transducer position videos, and anatomical diagrams, viewable during live scanning.
iWorks and iMeasure
Protocol steps add annotations, body marks, and calipers; iMeasure flags results outside a preset range.
Natural Touch Elastography
Strain elastography for a reproducible read of soft tissue elasticity and stiffness.
TDI and Auto EF
TVI, TVM, TVD, and TEI modes with TDI QA, plus Auto EF output of EDV, ESV, EF, SV, and CO.
HR Flow and HD Scope
HR Flow shows tiny vessels and complex flow; HD Scope adds detail and contrast in a selected area.
Learning tools
Guidance on the screen during the scan
iScanHelper puts a standard reference image, the transducer position, and an anatomical diagram beside the live image, on both the monitor and the 13.3-inch touchscreen.
iWorks moves to the next view automatically, sets up imaging modes, and opens the right measurement for each step.
Cart and control panel

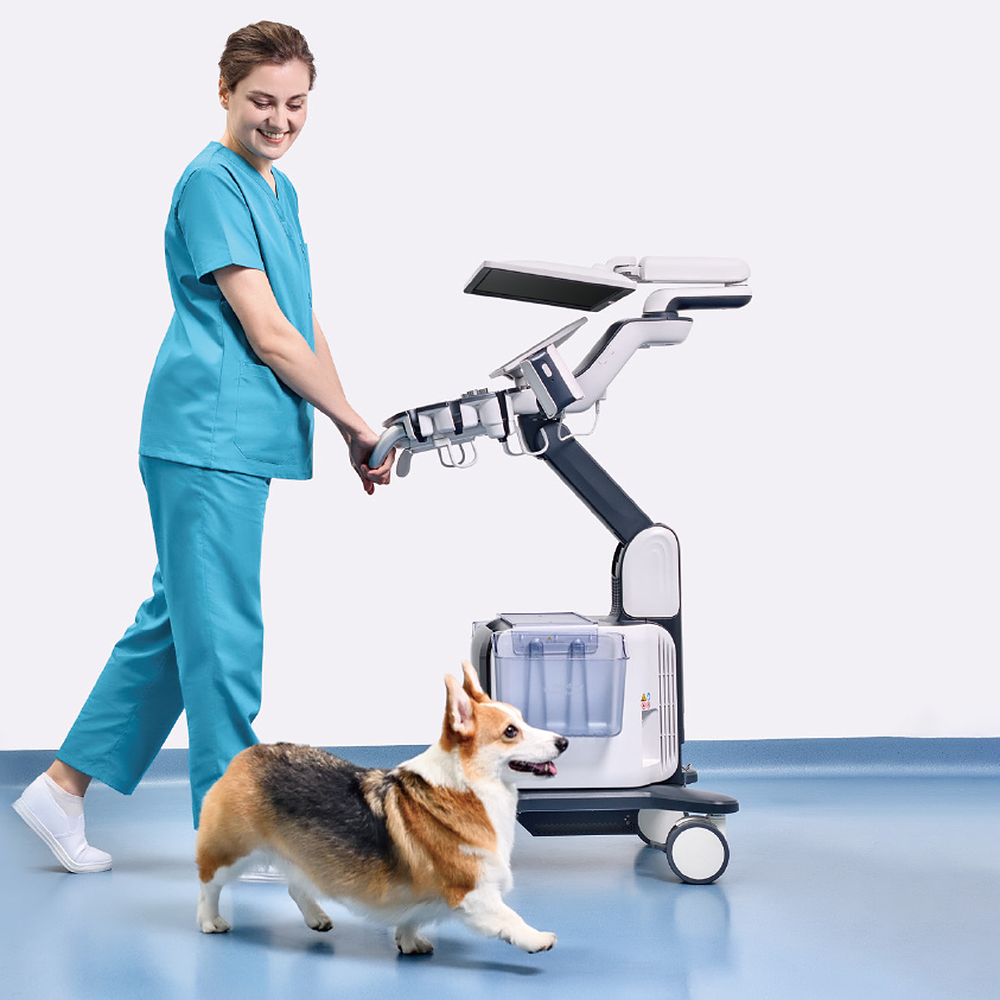

Moves cage side
The 21.5-inch monitor sits on a lifting arm, and overall height runs from 38.4 in (976 mm) to 63.8 in (1620 mm) as the panel and monitor rise. The anti-splash control panel cleans easily, and storage on the cart keeps accessories organized.
iLight lights the work area in a dark scanning room, and the system runs at 26 dB.
Available options
- Transducers: C11-3, C5-1, L13-3, P8-2, P4-2, P10-4
- ECG function
- Ultrasound gel warmer: off, 93, 99, or 104 °F (34, 37, or 40 °C)
- Footswitch and barcode reader
- Black and white and color printers
Veterinary Applications
The Vetus 50 suits general and growing practices that want cart-based image quality with built-in scan guidance.
- Abdominal imaging
- Echocardiography
- Reproduction
- Canine and feline patients
- Large animal abdomen and cardiac work with the C5-1 and P4-2
- Building scanning skills with iScanHelper
