Description
Ultrasound Systems

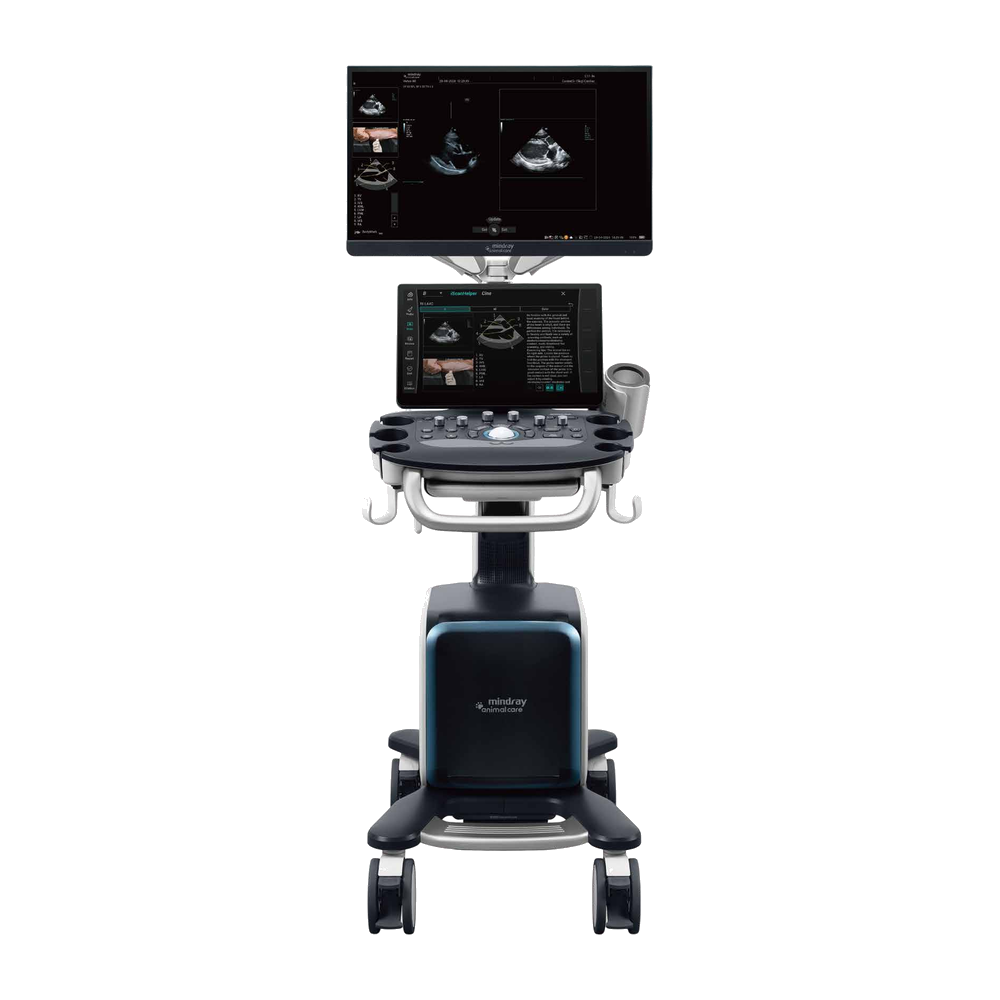

Mindray Vetus 80 Veterinary Ultrasound System
A ZST+ cart-based ultrasound with contrast imaging, single crystal transducers, and dedicated exotic pet presets, in a body that stores under 3.3 ft (1 m) tall.
23.8 in
Full HD monitor
15.6 in
Touchscreen
146.6 lb
Max system weight
26 dB
Operating noise
Overview
The Mindray Vetus 80 is a cart-based veterinary ultrasound built on the ZST+ platform, which combines zone imaging, zone focusing, and zone processing of 100% raw data. It weighs 146.6 lb (66.5 kg) or less and has a storage height under 3.3 ft (1 m) for scanning large animals.
UWN+ contrast imaging uses both second harmonic and non-linear fundamental signals for longer agent duration at a lower MI, with contrast QA for liver, kidney, and spleen and LVO for the left ventricle. The SC5-1Ns and SP5-1Ns single crystal transducers handle abdominal and cardiac scans of large animals.
For small patients, dedicated exotic pet presets pair with the L16-4Hs hockey-stick transducer for animals such as guinea pigs, mice, lizards, and turtles. A built-in battery supports cage-side exams, and a magnetic front cover keeps fur, dander, dust, and fluids off the transducer connectors.
Key Features
ZST+ platform
Zone imaging, zone focusing, and zone processing of 100% raw data, with HD Scope for added detail in a chosen area.
UWN+ contrast and Glazing Flow
Contrast imaging with QA and LVO, plus Glazing Flow for 3D-style display of micro-vascular perfusion.
Exotic species presets
Dedicated exotic pet presets with the L16-4Hs hockey-stick transducer for guinea pigs, mice, lizards, turtles, and similar patients.
Cardiac analysis
TDI QA in TVI, TEI, TVD, and TVM modes with up to 8 ROI, plus bedside TT QA and Auto EF.
Built-in battery
Supports cage-side scanning, with more than 1 hour of continuous scanning and recharge in under 4 hours.
Magnetic front cover
Covers the transducer connectors against fur, dander, dust, and animal fluids.

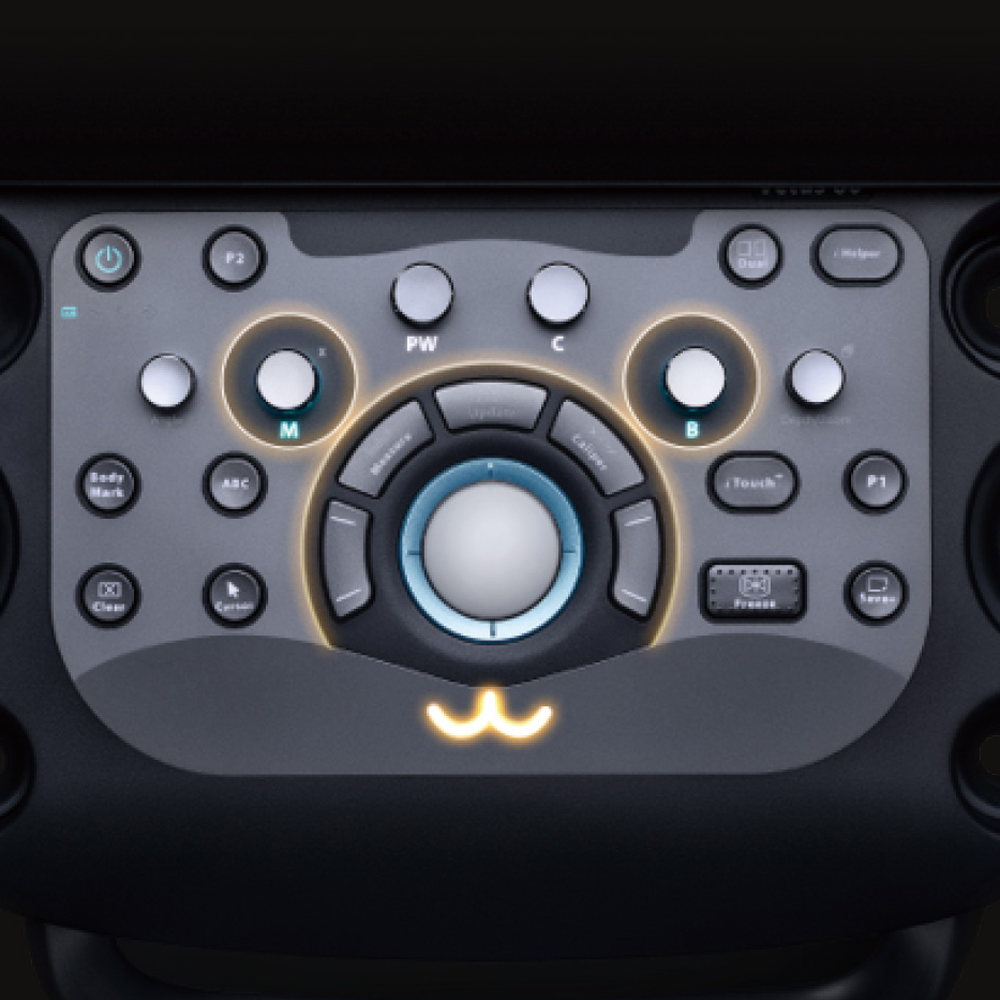

Control panel
Backlit keys for a dark scanning room
The control panel backlight has adjustable brightness, and the QWERTY keyboard is backlit as well.
Three keys can be assigned to user-defined functions.

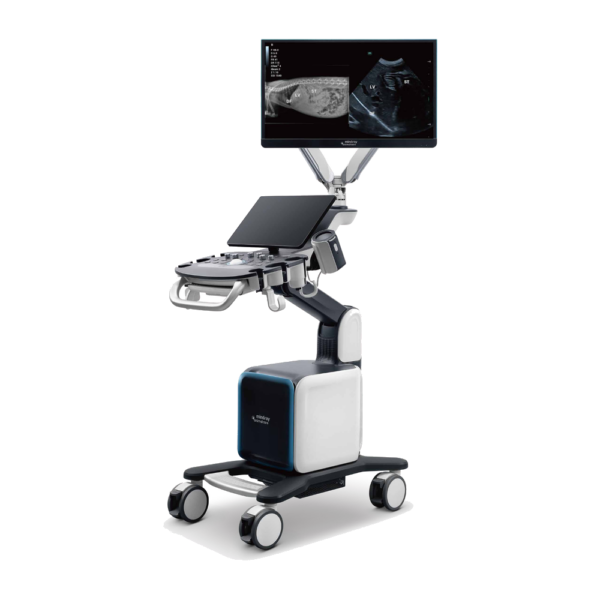

Cart and floating arm
Under 3.3 ft (1 m) stored, with a floating arm
The 23.8-inch monitor rides on a dual-wing floating arm, and the control panel and monitor rise to about 5.5 ft (1690 mm) at their highest position.
iLight lights the work area in a dark scanning room, and the system runs at 26 dB or less.
Available options
- Transducers: SC5-1Ns, C11-3s, C13-3s, L13-3Ns, L16-4Hs, SP5-1Ns, P8-2s, P10-4s, P12-4s
- Transducer ports: 4 or 5 active
- ECG function
- Ultrasound gel warmer: off, 93, 99, or 104 °F (34, 37, or 40 °C)
- Footswitch, barcode reader, and iVocal microphone
- Black and white and color printers
Veterinary Applications
The Vetus 80 covers general practice and referral imaging across small animals, large animals, and exotic pets.
- Abdominal and contrast studies
- Echocardiography
- Exotic pet imaging
- Reproduction
- Small parts and ocular
- Musculoskeletal
