Description
Infusion and Syringe Pumps

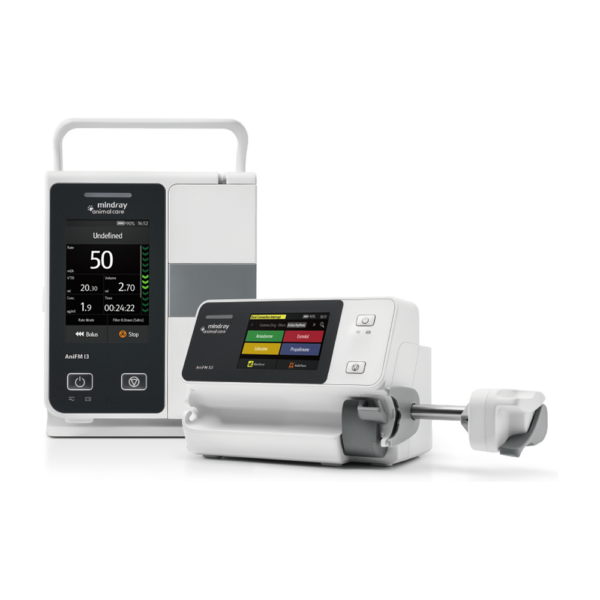

Mindray AniFM I3/S3 Veterinary Infusion and Syringe Pumps
A veterinary infusion pump and syringe pump that mount on cages or poles and report to a central monitoring system over built-in Wi-Fi.
±4.5%
I3 infusion accuracy
±1.8%
S3 infusion accuracy
3.5 in
Color touchscreen
IP44
Water protection
Overview
The Mindray AniFM I3/S3 pairs an infusion pump (I3) and a syringe pump (S3) built for animals. Both have a 3.5-inch color touchscreen, IP44 protection against water, and built-in Wi-Fi for connection to a central monitoring system (CMS).
The I3 uses a suspension floating pump that holds infusion accuracy at ±4.5% over long infusions and across consumable variations. The S3 is rated at ±1.8% and has an automatic brake that stops an accidental bolus if the pump is dropped or bumped.
A rotating mounting cube on the back of each pump attaches to cages or to horizontal or vertical poles with one button press. The Dynamic Pressure System dashboard shows occlusion pre-alarms, helps with troubleshooting, and restarts infusion automatically.
Key Features
Suspension system
The I3 floating pump applies even force to the infusion line and keeps accuracy at ±4.5% over long infusions.
Automatic brake
The S3 stops instantly to prevent an accidental bolus from a dropped pump or outside force.
Rotating mounting cube
Press one button to rotate the cube and mount the pump on a cage or a horizontal or vertical pole.
Dynamic Pressure System
A speedometer-style dashboard pre-alarms on rising line pressure and restarts automatically.
Built-in Wi-Fi
Connects to the CMS, so staff can track infusions across isolation wards, infusion rooms, and inpatient areas.
Modes and drug library
11 infusion modes on the I3 and 9 on the S3, with a library of at least 5000 drug names.

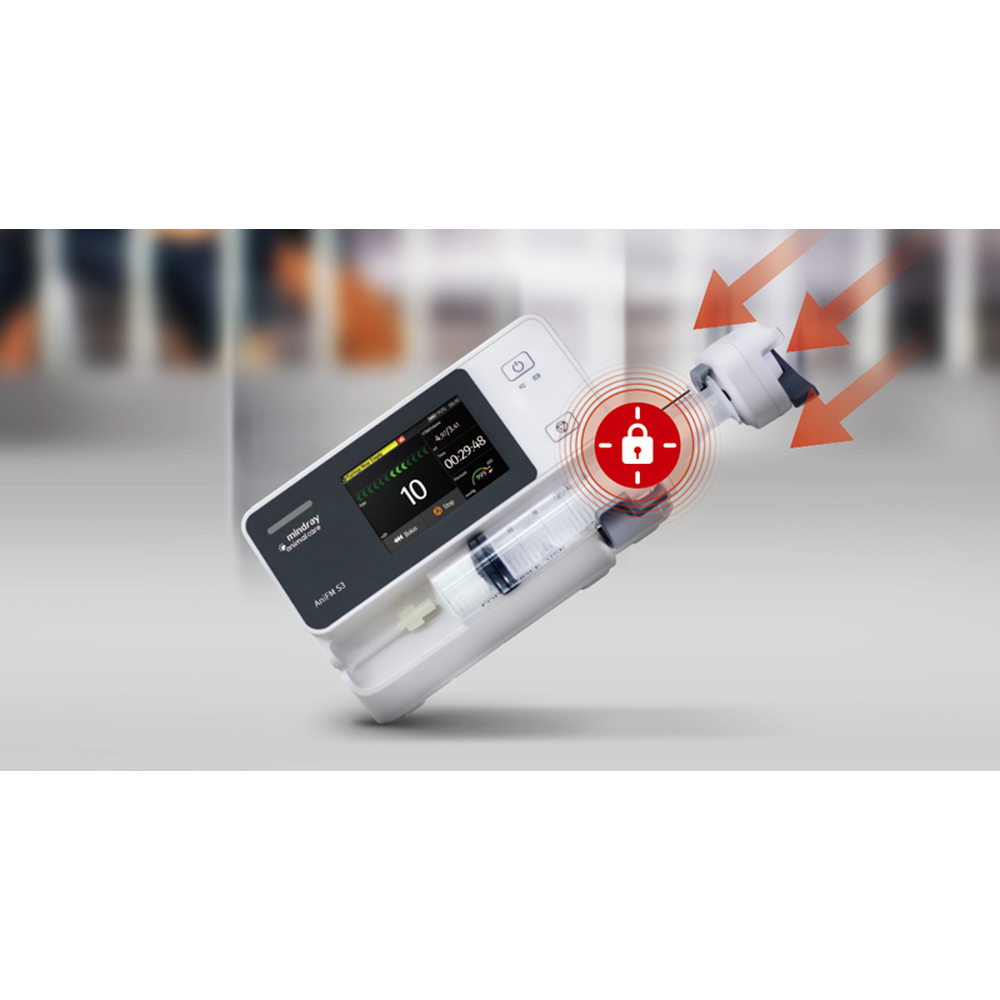

Screen and automatic brake
Pressure pre-alarms and a brake against accidental bolus
The speedometer-style dashboard tracks infusion line pressure and pre-alarms on changes before an occlusion alarm.
On the S3, the automatic brake stops instantly to prevent an accidental bolus if the pump is dropped or hit by an outside force.

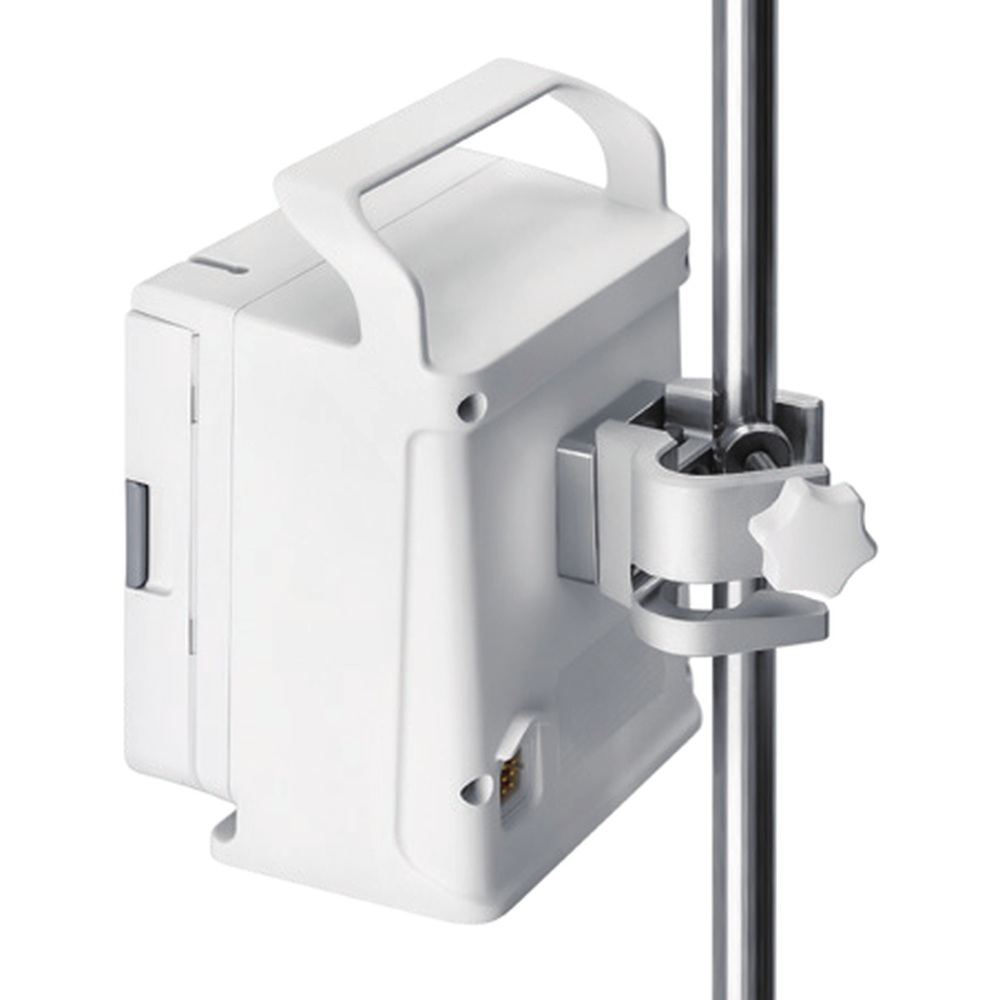

Rotating mounting cube
Cage, horizontal pole, or vertical pole
The mounting cube on the back of the AniFM pump rotates and locks with one button press, so the same pump fits cage fronts and IV poles in either orientation.
Available options
- AniFM I3: infusion pump, 0.1 to 2000 mL/h
- AniFM S3: syringe pump for 2 to 60 mL syringes, 0.01 to 2300 mL/h
- CMS: built-in Wi-Fi connection to a central monitoring system
Veterinary Applications
Mindray lists these AniFM I3/S3 application settings for veterinary hospitals.
- Emergency and critical care
- Isolation wards
- Owner-accompanied infusion
- Exotic pets
- Dose-sensitive drugs
- Enteral feeding with the I3
