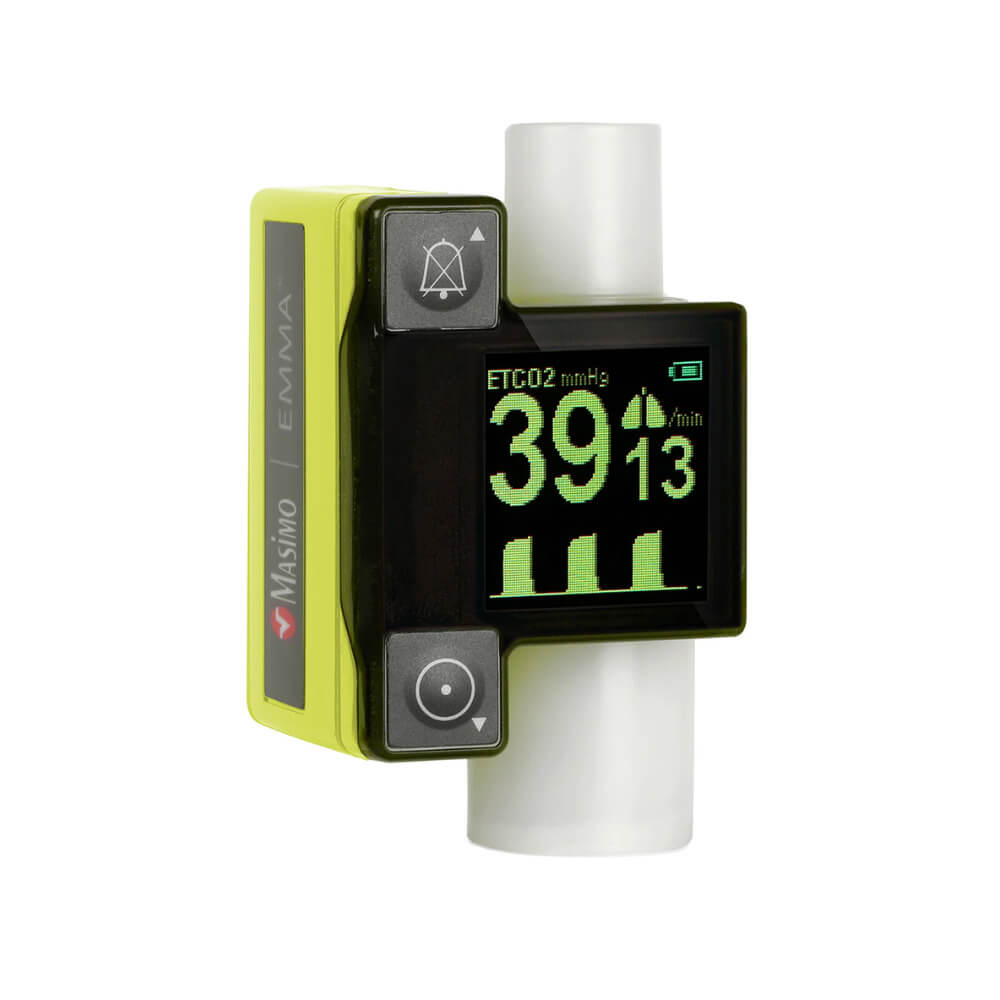

Masimo Emma II® Portable Real Time Capnograph

Web ID:

19681

Masimo Emma II® Portable Real Time Capnograph

The Masimo Emma is a portable, durable, rapid response, easy-to-use, EtCO2 and respiratory capnometer.  It is ideal for multiple points of care including pre-hospital, emergency medicine, operating room, intensive care unit, and long-term acute care.

Description

The Masimo Emma is a portable, durable, rapid response, easy-to-use, EtCO2 and respiratory capnometer.

Features

  • Immediate results — minimal warm-up time, with end-tidal carbon dioxide (EtCO2) and respiration rate (RR) measurements and real-time EtCO2 waveform displayed in 15 seconds
  • Small, portable capnograph — lightweight design fits in the palm of your hand for mobility and convenience during short-term EtCO2 monitoring of adult, pediatric, and infant patients
  • Designed to fit easily onto a breathing circuit — flexible use at multiple points of care including pre-hospital, emergency medicine, operating room, intensive care unit, and long-term acute care
  • Rugged design for reliable operation in challenging environments
  • Easy to maintain — no routine calibration required
  • Clear, continuous capnograph of carbon dioxide values
  • Simple, easy-to-use interface for quick set-up and one-touch programming
  • Audible and visual alarm system for No Adapter, Clogged Adapter, No Breath (Apnea), Low Battery and adjustable High and Low EtCO2 alarm

Technical Specifications

Ranges

  • CO2: 0-99 mmHg
  • RR: 3-150 bpm

Accuracy (Standard Conditions)

  • CO2: 0-40 mmHg +2 mmHg; 41-99 mmHg 6% of reading
  • RR: +1 bpm

Batteries

  • Type: 2 (two) AAA Cell Alkaline or Lithium
  • Battery life: 6 hours (Alkaline), 10 hours (Lithium)

Environmental

  • Operating temperature: -5 to 50º C (23 to 122º F)
  • Operating Humidity: 10-95%, non-condensing
  • Storage temperature: -30 to 70º C (-22 to 158º F)

Physical Characteristics

  • Dimensions: 2.1 x 1.5 x 1.5” (5.2 x 3.9 x 3.9 cm)
  • Weight: 2.1 oz (59.5 g)

Adapter Information

  • Dead Space Adult/Pediatric: 6 ml
  • Dead Space Infant:1 ml

Warranty Information

  • 1-Year Warranty
