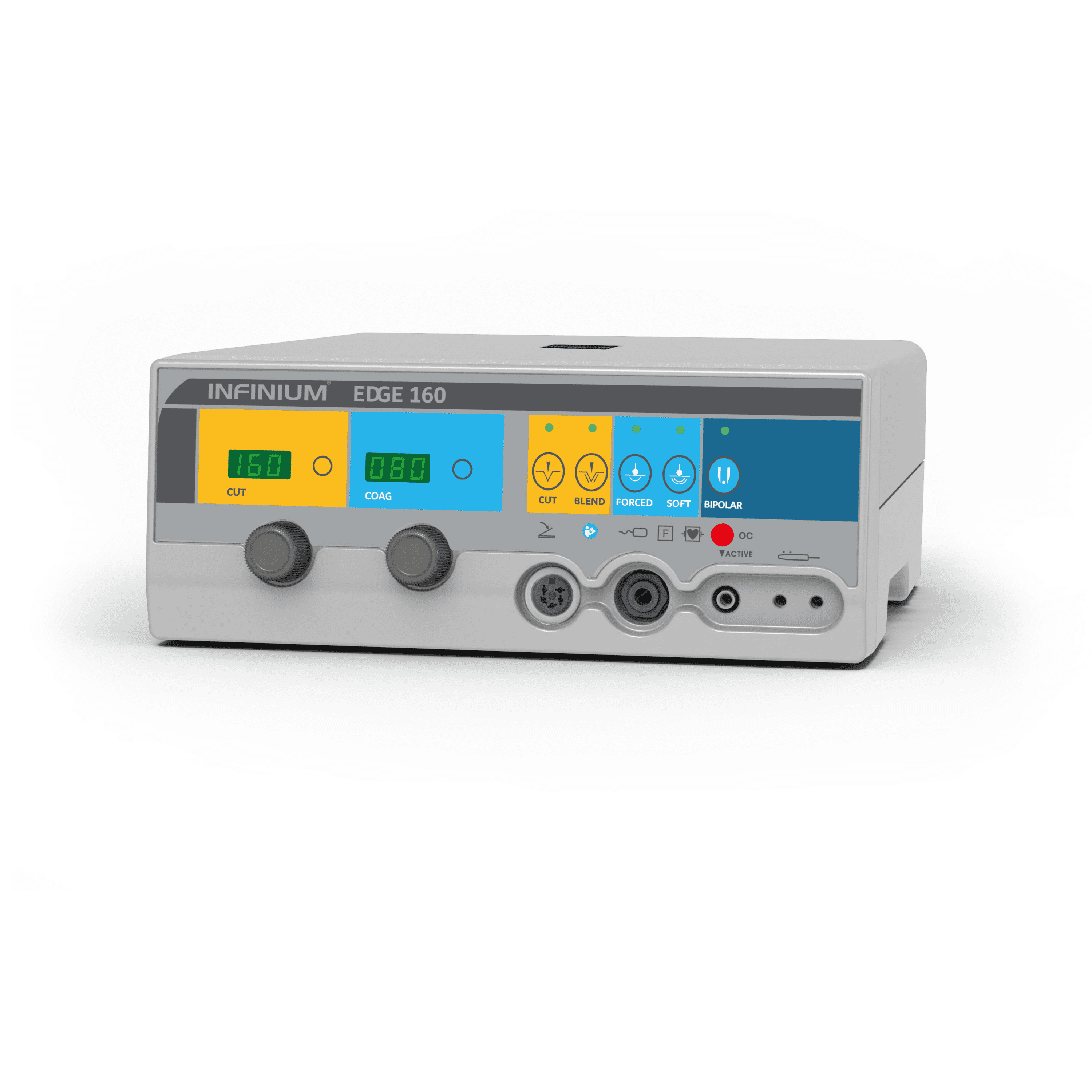

The Infinium EDGE 160 is a high-frequency electrosurgical generator (ESU) ideal for monopolar and bipolar veterinary surgery procedures. The system is engineered to execute minimally invasive surgical procedures with resection, evaporation, and coagulation.
The Infinium EDGE 160 is a high-frequency electrosurgical generator (ESU) ideal for monopolar and bipolar veterinary surgical procedures. The system is engineered to execute minimally invasive surgical procedures with resection, evaporation, and optional coagulation.
The EDGE 160 allows for professional surgery thanks to advanced user-friendly and safety solutions. The connection of the split neutral electrode and plate is automatically monitored for patient safety. For ease of use and focus, power output can be adjusted from the hand control to allow surgeons to have a continuous focus on the surgical field.
| Max Output Power CUT | 160W – 250Ω |
| Max Output Power ENHANCED | 120W – 250Ω |
| Max Output Power BLEND | 120W – 200Ω |
| Max Output Power FORCED COAG | 100W – 150Ω |
| Max Output Power SOFT COAG | 80W – 100Ω |
| Max Output Power BIPOLAR COAG | 60W – 100Ω |
| Working Frequency | 600 KHz |
| Patient Circuit | F |
| Mains Voltage | 115-230 Vac |
| Mains Frequency | 50-60 Hz |
| Electrical Input Power | 350 VA |
| Size WxHxD | 254x104x288 Mm |
| Weight | 5 Kgs |
 | This rugged mobile electrosurgical cart fits most types and sizes of esu generators and has amply storage space below in a secure shelf configuration. The table top includes a easy to grab full width stainless handle for mobility. The top dimensions are 24in deep x 20.5in wide. The unit top sits at a height of 30 inches. The base includes high grade castors for easy position and room to room movement. The entire steel surface is powder coated for a long lasting easy to clean finish. | |
 | This reusable autoclavable electrosurgical pencil handle with a finger switch is a reliable part of your everyday procedures. | |
 | This disposable electrosurgical pencil handle with a finger switch comes sterile and is a reliable part of your everyday procedures. | |
 | ||
 | This disposable electrosurgical generator neutral electrode cable is compatible with many industry standard units and fits the Infinium EDGE Series generators. | |
 | This disposable bipolar forcep cable is compatible with a wide range of electrosurgical generators. It fits applicable Infinium EDGE Series units. | |
 | This disposable twin bipolar forcep / artery sealing cable is compatible with a wide range of electrosurgical generators. It fits applicable Infinium EDGE Series units. | |
 | This reusable flexible steel neutral electrode plate comes with a cable and is compatible with a wide range of electrosurgical generators. It fits all Infinium EDGE Series units. | |
 | These reusable 11.5cm curved bipolar forceps with a very fine .5mm tip are autoclavable and compatible with a variety of industry-standard electrosurgical units. | |
 | These reusable 20cm straight bipolar forceps with 1mm tip are autoclavable and compatible with a variety of industry-standard electrosurgical units. | |
 | These reusable 20cm straight bipolar forceps have a wide 2mm tip, are autoclavable, and are compatible with a variety of industry-standard electrosurgical units. | |
 | These reusable 20cm curved bipolar forceps with 1mm tip are autoclavable and are compatible with a variety of industry-standard electrosurgical units. | |
 | These reusable 20cm curved bipolar forceps have a thicker 2mm tip, are autoclavable and are compatible with a variety of industry-standard electrosurgical units. | |
 | These reusable 20cm angled bipolar forceps have a 1mm tip, are autoclavable, and are compatible with a variety of industry-standard electrosurgical units. | |
 | These reusable 20cm angled bipolar forceps with a 2mm tip are autoclavable and are compatible with a variety of industry-standard electrosurgical units. | |
 | These reusable 20cm angled curved bipolar forceps angle inward, are autoclavable, and are compatible with a variety of industry-standard electrosurgical units. | |
 | This reusable steel neutral electrode plate is compatible with a wide range of electrosurgical generators and fits all Infinium EDGE Series units. | |
 | This reusable electrosurgical generator neutral electrode cable is compatible with many industry standard units and fits the Infinium EDGE Series generators. |
