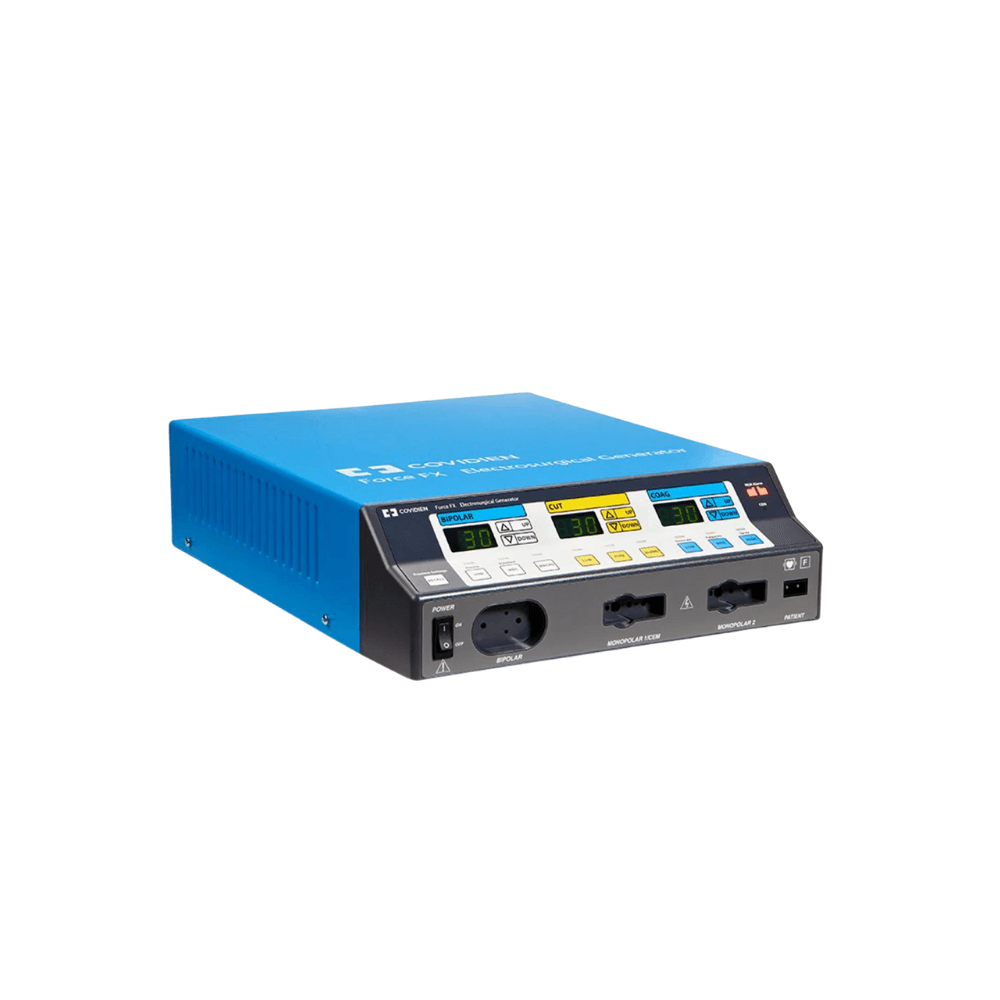

Technical Specifications
Dimensions
- Height: 4.38” (11.1 cm)
- Width: 14” (35.6 cm)
- Depth: 17” (43.9 cm)
- Weight: < 18 lbs. (< 8.1 kg)
Electrical
- Power PER: 98
- Input Power Requirements: Operating range is 85 to 132 AC volts. Maximum current is 7 amperes in Cut and 4 amperes in Coag. High-Frequency Leakage Bipolar: Less than 60 mArms Monopolar: Less than 150 mArms Output Waveforms
- Bipolar Precise: 470 kHz sinusoid Standard: 470 kHz sinusoid
- Macro: 470 kHz sinusoid
- Monopolar Cut Low: 390 kHz sinusoid. Similar to the Pure Cut mode except the maximum voltage is limited to a lower value.
- Pure: 390 kHz sinusoid
- Blend: 390 kHz bursts of a sinusoid, recurring at 27 kHz intervals. 50% duty cycle envelope.
- Monopolar Coag Desiccate: 240 kHz sinusoid repeated at 39 kHz. 8% duty cycle.
- Fulgurate: 390 kHz damped sinusoidal bursts with a repetition frequency of 30 or 57 kHz into 500 ohms Spray: 390 kHz damped sinusoidal bursts with a randomized repetition centered at 28 kHz. Frequencies include 21kHz < f < 35 kHz. The output is further modulated by a random 250 Hz envelope with a variable duty cycle. Output power changes by less than 15% or 5 watts, whichever is greater, as the line voltage varies from 104-132 volts and 208-264 volts (at rated load)
Operating Parameters
- Ambient Temperature Range: 10° to 40° C (50° to 104° F)
- Relative Humidity: 30 % to 75%, noncondensing
- Atmospheric pressure: 700 to 1060 millibars
- Warm-up time: If transported or stored at temperatures outside the operating temperature range, allow one hour for the generator to reach room temperature before use.
Transport and Storage
- Ambient Temperature range: -40° to 70° C (-40° to 158°F)
- Relative humidity: 25% to 85% noncondensing
- Atmospheric Pressure: 500 to 1060 minibars REM
Contact Quality Monitoring System Measurement
- Frequency: 80 kHz ± 10 kHz
- Measurement Current: Less than 10 μA Acceptable
- Resistance Ranges: REM pad — 5-135 ohms; Non-REM pad — less than 20 ohms Acceptance range is 5-135 ohms after REM PolyHesive II return electrode is applied.
- Adaptive REM: REM trip is baseline impedance plus 40%. For example, if the baseline impedance is 30 ohms, the upper-level trip is approximately 42 ohms. If the pad-patient impedance falls below the baseline impedance, a new baseline is established.
