Triumph IP12 Veterinary Infusion Pump

Technical Specifications

• Display: 4.3-inch water-resistant color touchscreen
• Weight: 3.086 lbs (1.4 kg)
• Power Supply:
  • AC Power: 100-240V, 50/60Hz
  • DC Power: 12V
  • Battery: Dual 7.4V, 2500mAh rechargeable batteries
  • Battery Life: Over 9 hours at 25 ml/h flow rate (fully charged, 25°C environment)
  • Charging Time: Approximately 5 hours (in OFF state)
• Flow Rate: 0.1–1500 ml/h (increments of 0.01 ml/h)
• Volume to Be Infused (VTBI): 0–9999.99 ml
• Infusion Modes:

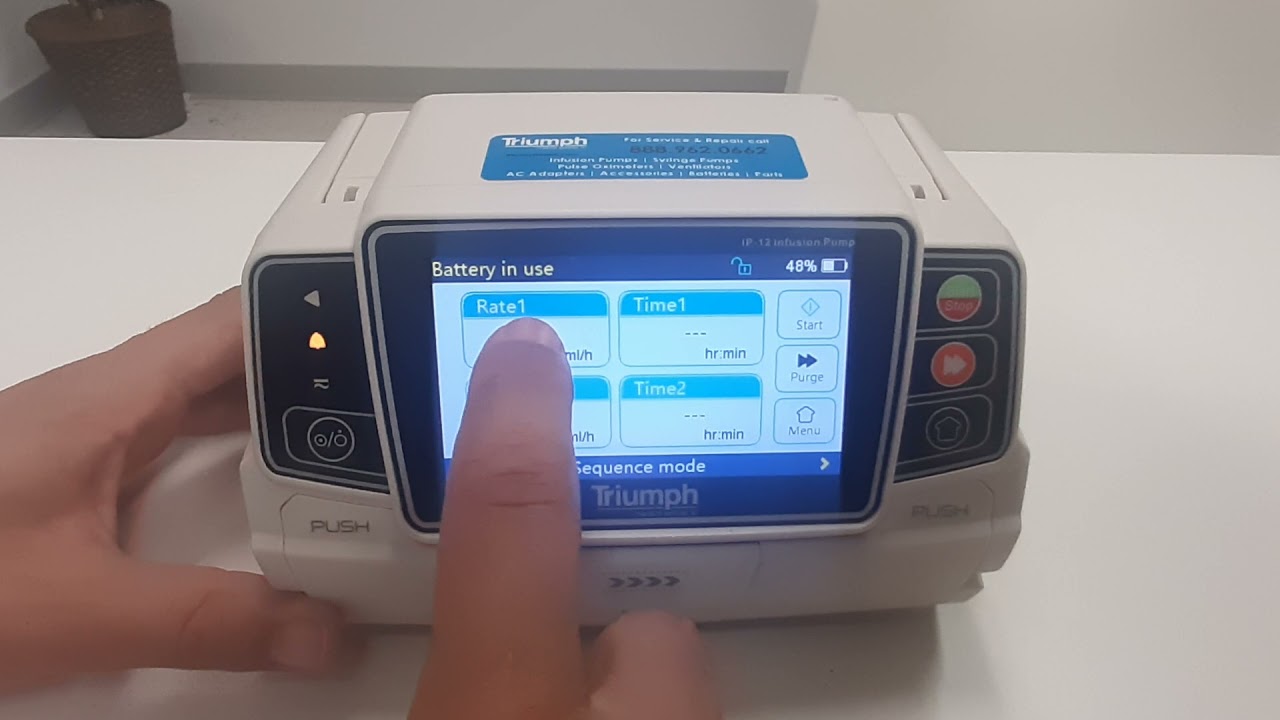

  • Rate Mode
  • Time Mode
  • Body-Weight Mode

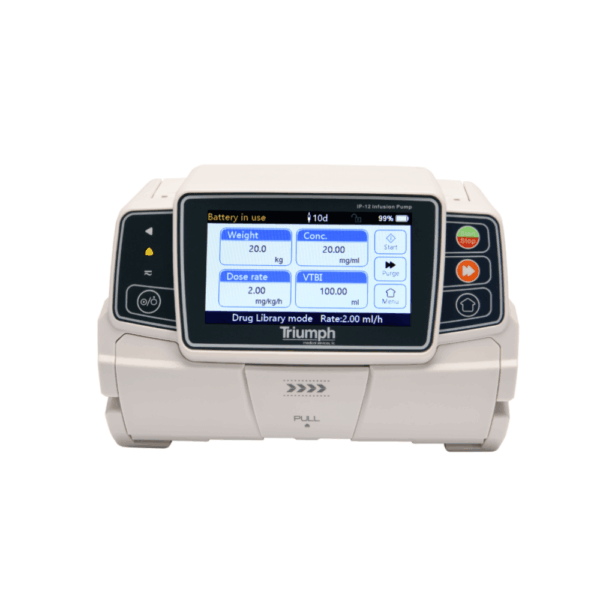

  • Drug Library Mode
  • Drip Mode
• Preloaded IV Sets: 14 brands, including Baxter, ICU Medical, VetOne A and B Series, Covetrus A and B Series, Mvet A and B Series, Zoetis A and B Series, Pivetal A and B Series, Ecomed B Series
• Safety Features:
  • Full-screen color-coded alarms for low battery, air-in-line, high pressure, VTBI completion, and more
  • Anti-free-flow clamp
  • Upstream and downstream pressure sensors
  • Air-in-line sensor
  • Fully customizable drug library with password protection
• Safety Standards:
  • IEC 60601-1:2005+A1:2012
  • IEC 60601-2-24:2012
  • IEC 60601-1-8:2006+A:2012
  • EN 60601-1-2:2007+AC:2010
• Ingress Protection: IP34 (protection against solid objects >2.5mm and water splashes from all directions)
• Alarm Sound Level: ≥50 dB(A) at the lowest setting
• Operating Conditions:
  • Temperature: 5°C to 40°C
  • Humidity: 15% to 95% (non-condensing)
• Additional Features:
  • Folding carry handle for easy transport
  • Stackable design for space efficiency
  • Pole/cage clamp for vertical or horizontal mounting
  • Manual and programmed bolus functions
  • Purge function for line priming
