Description
Veterinary Surgical and Exam Tables
Panno-Med PURE Surgery and Exam Table Platform
Electric lift table for surgery, exam, and treatment. A footswitch sets the height, the top can be fixed or tilt up to 12°, and the platform comes free-standing or wall-mounted.
4.3 to 46.9 in
Electric height (11 to 119 cm)
264.6 lb
Lifting capacity (120 kg)
12°
Top tilt
14
Tie-down hooks
Overview
The Panno-Med PURE is an electric lift table for surgery, exam, and treatment work in veterinary practices. It stands on a floor stand or mounts to the wall, and a footswitch raises and lowers the top. The wall-mounted model adjusts from 4.3 to 44.1 in (11 to 112 cm). The free-standing model adjusts from 7.1 to 46.9 in (18 to 119 cm).
Panno-Med co-developed the PURE with experts in veterinary medicine. The frame is powder-coated European steel, and the 51.2 x 23.6 in (130 x 60 cm) top plate comes in stainless steel or synthetic, fixed or tilting. The tightly sealed design has minimal parts and protected lip gaskets for easier cleaning, and the modular build allows later changes.
Key Features
Footswitch height control
Electric lift from 4.3 to 44.1 in (11 to 112 cm) wall-mounted, or 7.1 to 46.9 in (18 to 119 cm) on the floor stand.
Tilts up to 12°
Tilting tops angle up to 12° with one-hand gas spring operation. Fixed tops are also available.
264.6 lb lifting capacity
Lifts up to 264.6 lb (120 kg) with the load spread evenly across the top.
Top plate with drain
51.2 x 23.6 in (130 x 60 cm) stainless steel or synthetic plate with an edge, a drain, and 14 tie-down hooks.
Sealed for cleaning
Tightly sealed design with minimal parts and protected lip gaskets, on a powder-coated European steel frame.
Floor stand or wall mount
Free-standing and wall-mounted models. The modular build allows the platform to be adjusted later.
Available options
- Mounting: free-standing on a 41.3 x 21.3 x 2.8 in (105 x 54 x 7 cm) floor stand, or wall-mounted with no floor stand
- Top movement: fixed, or tilting up to 12° with one-hand gas spring operation
- Top plate: stainless steel or synthetic, 51.2 x 23.6 in (130 x 60 cm), with edge, drain, and 14 tie-down hooks
- Six tops for both models: fixed or tilting stainless steel, fixed or tilting synthetic, and fixed stainless steel or fixed synthetic with integrated scale

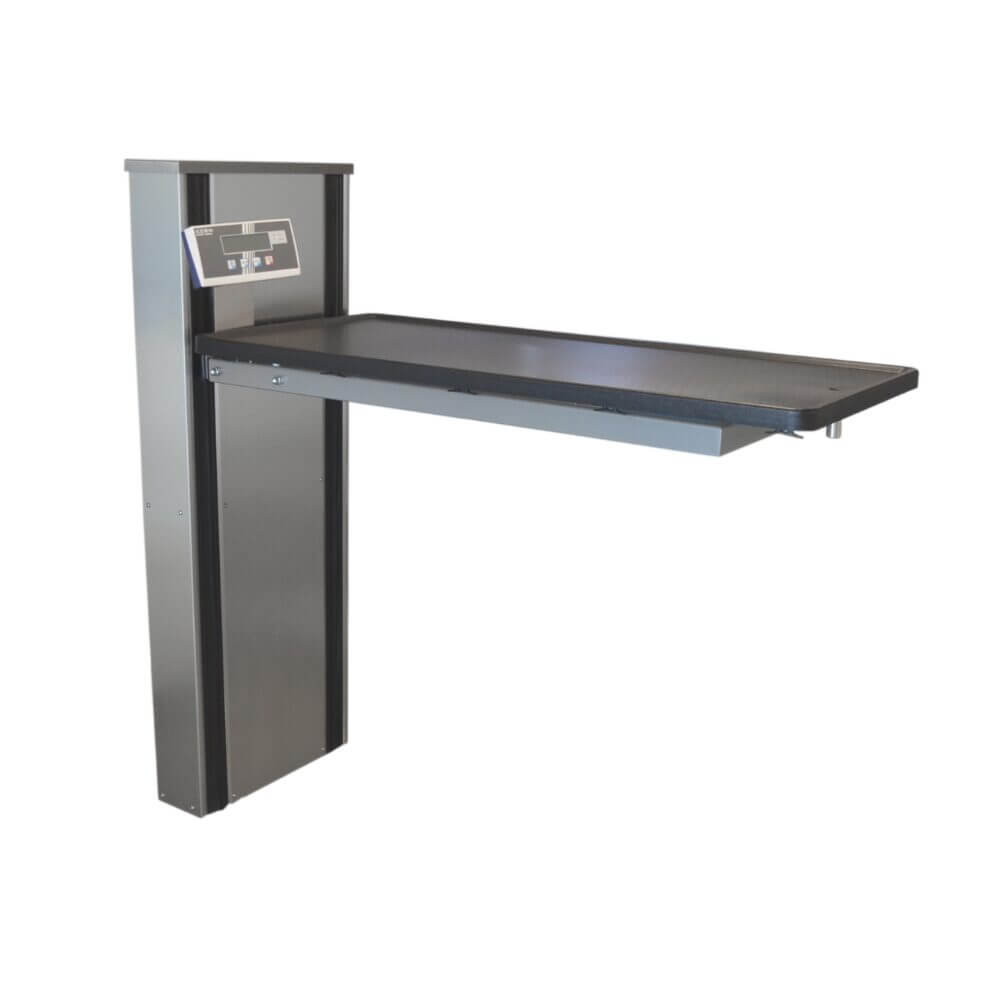

- Integrated scale (fixed tops only):
- Weighs 0 to 220 lb (0 to 100 kg) in 0.1 lb steps
- Animal weighing function (averaging method)
- Battery operated, 220 working hours
- Automatic shutoff after 3 minutes
- Uses 6 AA batteries (not included)
- Top set with scale: 51.2 x 23.6 x 5.9 in (130 x 60 x 15 cm)
Veterinary Applications
Use the PURE for surgical procedures in the operating room, physical exams in exam rooms, and treatments in the treatment area. The top lowers to 4.3 in (11 cm) on the wall-mounted model and 7.1 in (18 cm) on the free-standing model for loading patients, the 14 tie-down hooks secure patients on the top, and scale-equipped tops weigh patients on the table.
