Description

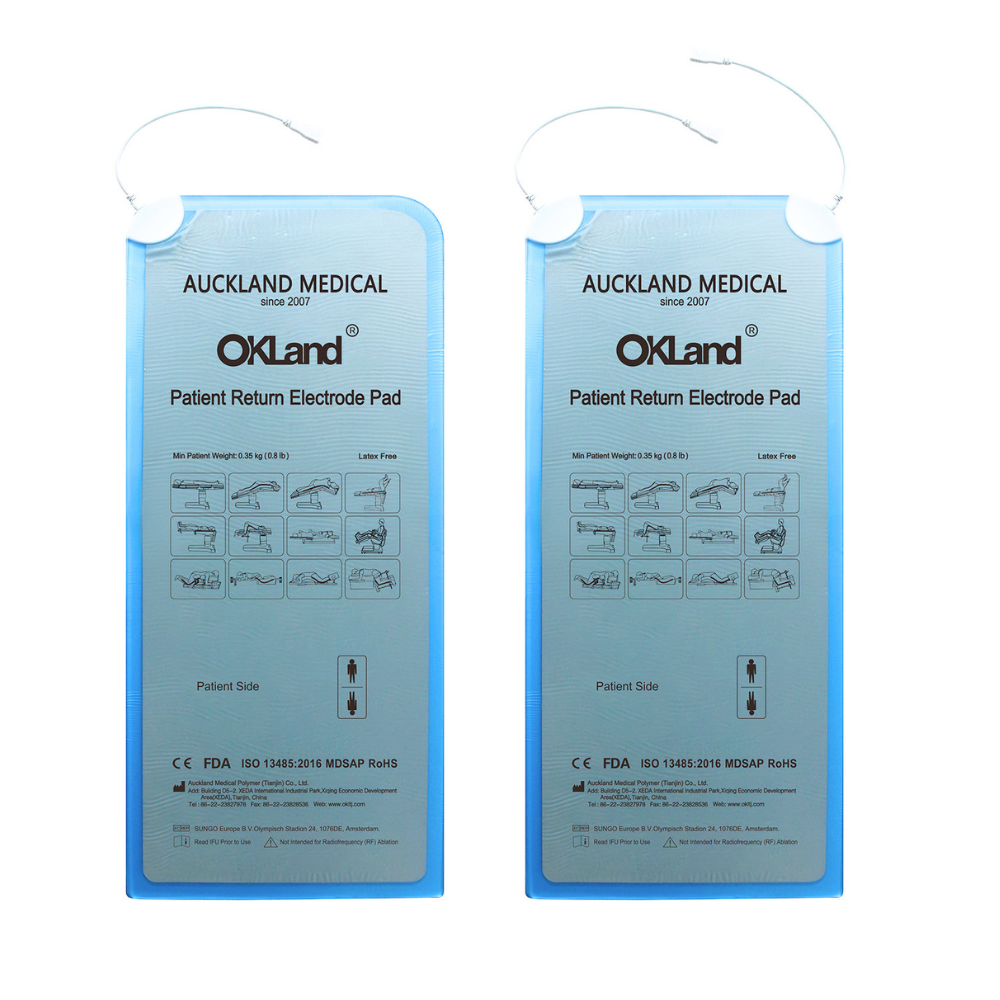

The OKLand® Reusable Veterinary Patient Return Electrode Pad provides a reliable, non-adhesive grounding solution that completes the electrical circuit for monopolar electrosurgical units in animal health settings. Designed as a direct replacement for discontinued reusable systems, this heavy-duty pad disperses return current evenly across a large surface area, minimizing risks associated with tissue heating while supporting a wide range of patient sizes.

Key Features

Enhanced Safety Profile: 0.5-inch viscoelastic polymer construction ensures uniform skin contact and current dispersion for reduced alternate-site risks.
Non-Adhesive Design: Position under drapes without direct skin contact, ideal for patients with sensitive or compromised skin.
Reusable Durability: Robust build supports multiple procedures, delivering cost efficiency in high-volume veterinary surgical suites.
Patient Comfort: Extra thickness provides cushioning support during extended anesthesia cases.
Flexible Configurations: Available in multiple sizes with single- or dual-cord options to accommodate various ESU setups.

Features & Benefits

Uniform Current Dispersion: Large surface area and consistent thickness promote even energy return, supporting procedural safety in diverse veterinary cases.
Cost-Effective Reuse: Engineered for repeated sterilization cycles, reducing per-procedure expenses compared to single-use alternatives.
Workflow Integration: Includes high-quality connecting cables; optional storage case protects pads between uses.
Broad Compatibility: Works with most common veterinary electrosurgical generators via appropriate single- or dual-pole cables.

Veterinary Applications

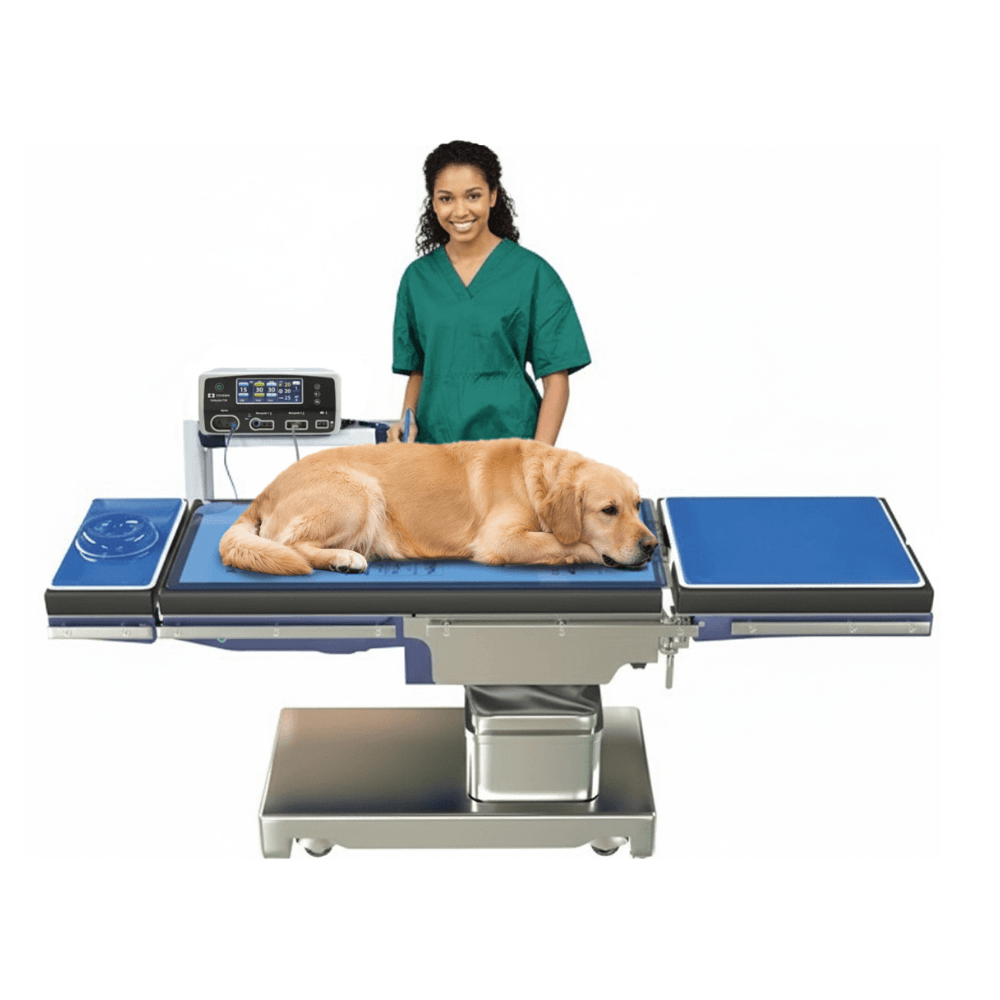

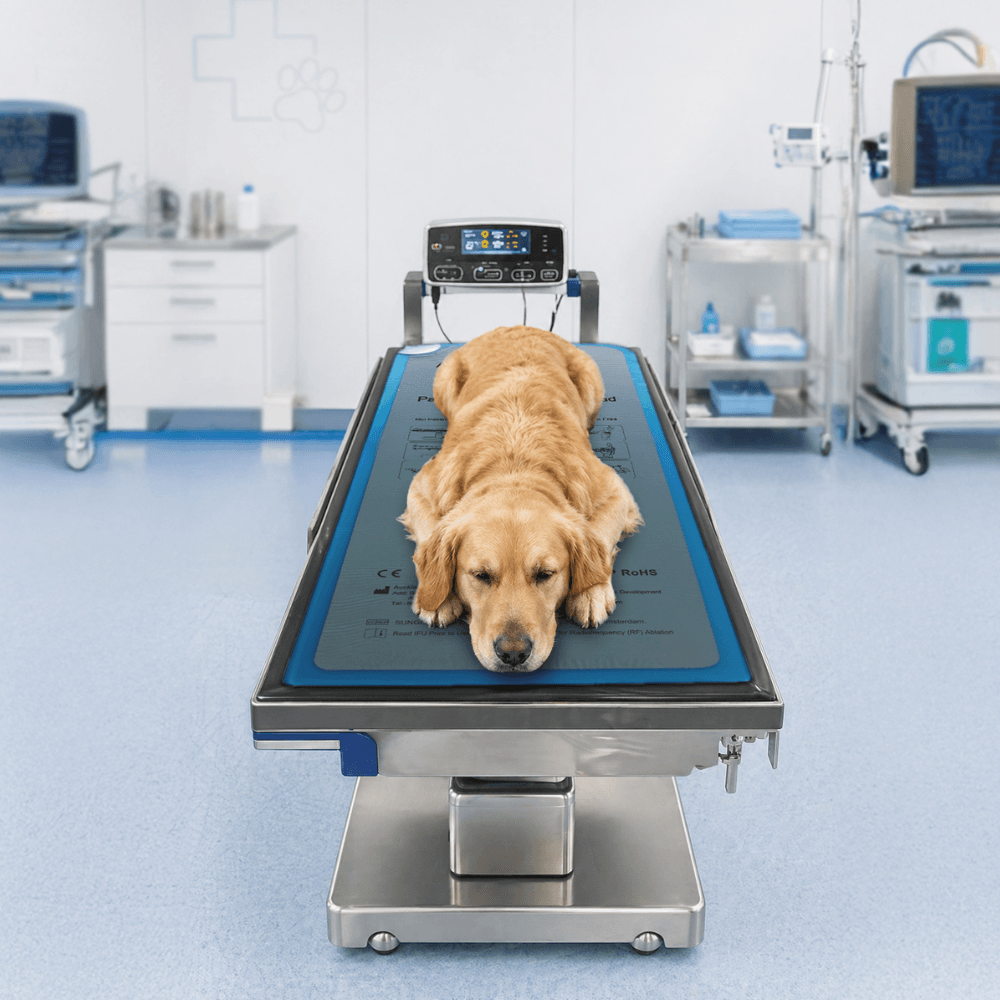

These pads excel in small-animal surgical suites for procedures requiring monopolar electrosurgery, including soft-tissue resections, spays, neuters, and orthopedic interventions. The non-adhesive format supports patients of varying sizes and skin conditions, making them suitable for specialty referral centers focused on animal health and safe energy delivery.

Model Variations

Model	Size	Cord Type	Key Advantage
AHD-001	47″ x 20″	Single	Standard large-pad coverage
AHD-004	47″ x 20″	Dual	Supports two ESUs simultaneously
AHD-005	39″ x 20″	Single	Medium-size versatility
AHD-003	33″ x 16″	Single	Pediatric/small-patient fit
AHD-002	16″ x 16″	Single	Compact mini option

Technical Specifications

Parameter	Value
Thickness	0.5 in (1.3 cm)
Construction	Viscoelastic polymer gel, heavy-duty reusable
Cable Length	13 ft (410 cm) standard
Design	Non-adhesive, radiolucent, latex-free
Storage Option	Heavy-duty case (22" x 9" x 6")

ESU Compatibility

Manufacturer	Compatible Models	Recommended Cable
Valleylab	Force FX, Force Triad, FT10, FX8	CC-06 (Flat, Dual Pole)
Erbe	VIO 300D, ICC 350	CC-05 (Flat, Single Pole)
ConMed	System 5000, Sabre 2400	CC-03 / CC-05
Bovie	Specialist Pro, Aaron 1250	CC-06
Olympus	ESG-400, UES	CC-05

Recommended Accessories

Connecting Cables: CC-01 to CC-08 series (single/dual pole, 13 ft) – select by ESU connector type.
Storage Case: AHD-SC heavy-duty protective case (22" x 9" x 6") for pad longevity.
Complimentary Cable: One cable included with each pad purchase.
