Description

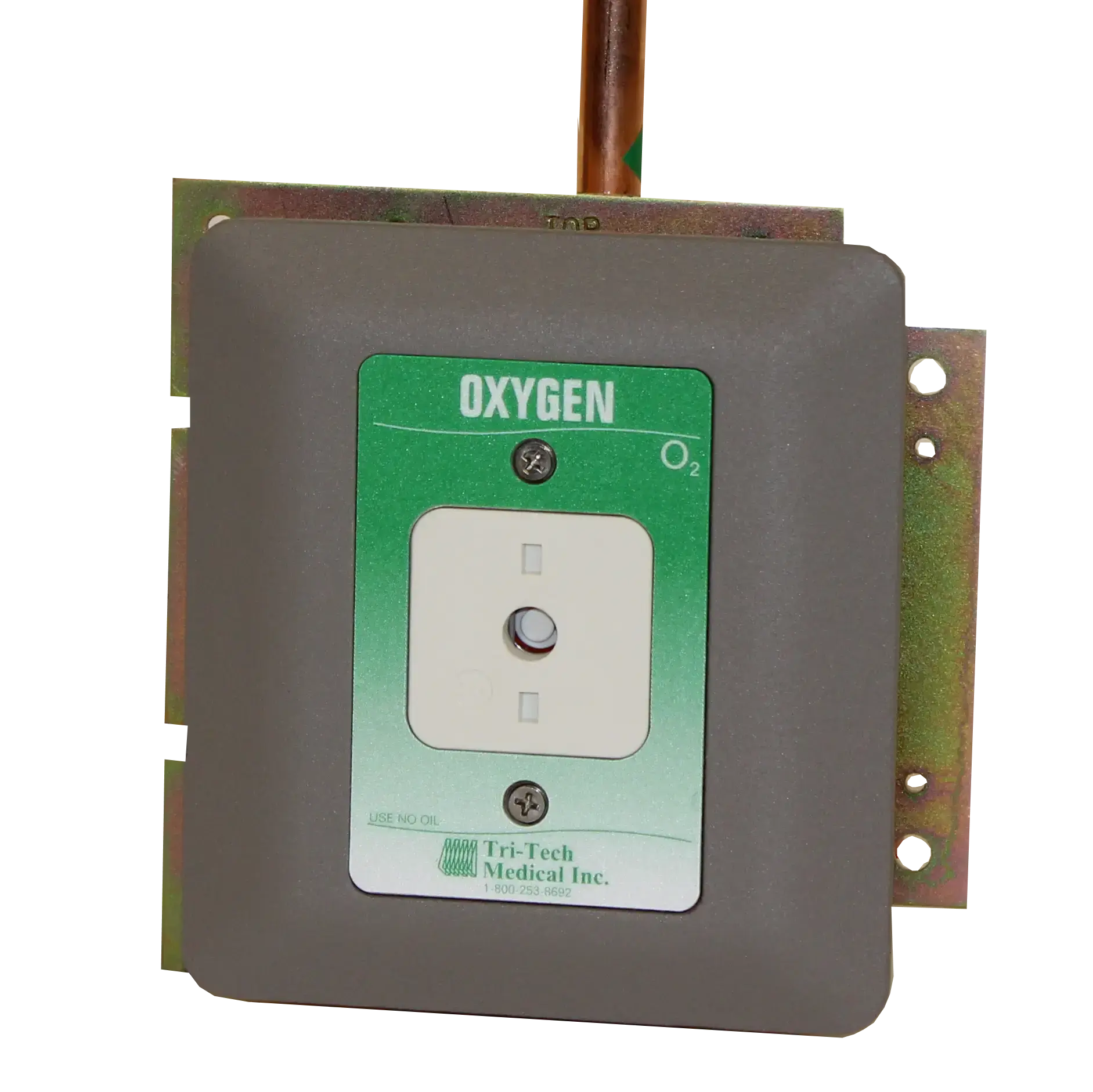

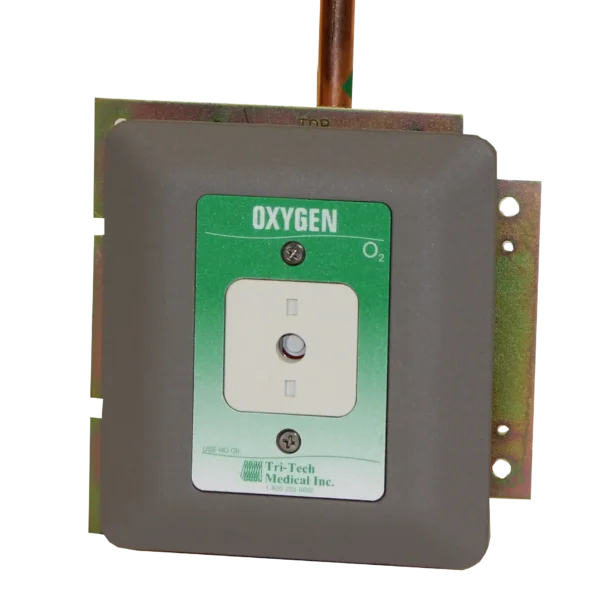

Infinium Veterinary offers Ohmeda/Ohio style quick connect medical gas outlets, designed for seamless integration into veterinary facilities. These outlets ensure dependable delivery of medical gases essential for anesthesia, respiratory support, and surgical procedures in animal health settings. Compatible with Ohmeda/Ohio gas-specific male adaptors, they prioritize safety, modularity, and compliance with industry standards, supporting veterinary professionals in delivering precise care to animal patients.

Advantages

These outlets provide versatile installation options tailored to diverse veterinary spaces, from compact clinics to advanced operating rooms and mobile units. Their modular design allows for easy ganging into multiples, compensating for wall thickness variations and offering automatic plaster adjustments for a secure fit. Enhanced safety features, including secondary check valves and double O-ring seals, prevent leaks and support equipment weight without compromising integrity. Built with durable materials like metal backs and chrome-plated components, they offer long-term reliability in demanding veterinary environments. The 360° swivel inlet tubes and gas-specific indexing reduce errors, while full testing for flow and leaks ensures consistent performance. MRI-compatible models expand usability in specialized diagnostic settings, making them a valuable addition to any animal health infrastructure.

Key Features

• Accepts Ohmeda/Ohio gas-specific compatible male adaptors for secure connections.
• Gas-specific indexing and nameplate color coding per NFPA 99 to prevent mix-ups.
• Modular design for ganging rough-in plates, with 5-inch centers for multiples.
• Secondary check valve activates upon nameplate removal to stop positive pressure gas flow (no secondary check for vacuum or WAGD).
• Double O-ring seal serviceable without shutting off gas, capable of supporting 10 pounds at 2 inches from nameplate without leaking.
• 360° swivel inlet tube for flexible positioning.
• 7-inch length of 1/2-inch O.D. copper Type K rough-in supply tube, labeled with gas service.
• 100% tested for flow and leaks, cleaned for oxygen service per CGA G-4.1.
• Metal back and nameplate for durability, with strength to support dispensing equipment without additional brackets.
• MRI-compatible models available, made with non-ferrous materials.
• Conforms to NFPA 99 and CGA standards, UL Listed to UL 1331 and CSA Z9170-1 where applicable.
• Available for gases including oxygen, medical air, nitrous oxide, vacuum, WAGD, and carbon dioxide.

Product Variations

Recessed Wall Mount: Compensates for wall thicknesses from 1/2 to 1-1/4 inches, with options for plastic white, die-cast white, or pewter trim plates; MRI-compatible versions available for most gases.

Console/Headwall: Removable front assembly for easy access, optional trim plates in plastic white, die-cast white, or pewter; suitable for centralized setups in veterinary operating areas.

Surgical Arm/Ambulance: Features pin-indexed faceplate and back, with 90° or 180° back bodies and hose barb connections (1/4-inch for positive gases, 5/16-inch for vacuum/WAGD); optional trim plate for adjustment from 1/8 to 3/4 inch.

Surface Mount: Exposed installation with durable scratch-resistant plastic housing; includes optional slide bracket for added support.

Veterinary Applications

In veterinary practices and hospitals, these Ohmeda/Ohio style outlets are integral for delivering precise gas flow to anesthesia machines, ventilators, and suction devices, supporting procedures in small animal clinics, equine facilities, and emergency transport. Their robust construction and safety features handle the rigors of daily animal health operations, promoting efficiency and reducing risks during critical care. Whether in fixed installations or mobile setups, they enhance workflow, ensuring reliable gas access that aligns with the unique demands of veterinary medicine.
