Description

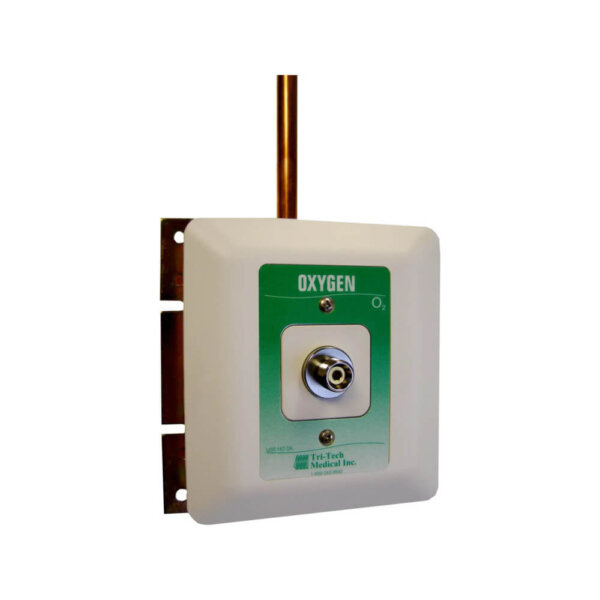

Infinium Veterinary offers Medical DISS gas outlets, featuring the advanced Frontall™ design for seamless integration into veterinary medical gas systems. These outlets utilize the Diameter Index Safety System (DISS) to prevent cross-connections, supporting a range of gases including oxygen, medical air, vacuum, nitrous oxide, carbon dioxide, nitrogen, WAGD, and instrument air. Engineered for ease of maintenance and durability, they are ideal for veterinary hospitals and clinics where precise gas delivery is crucial for anesthesia, respiratory support, and surgical procedures. With options for various mounting styles, these outlets adapt to space-constrained or mobile setups, enhancing workflow efficiency in animal health settings.

Advantages: The Frontall™ DISS outlets offer superior safety through their double O-ring seal and automatic secondary check valve, minimizing leaks and supporting equipment without additional brackets, which is particularly beneficial in busy veterinary practices handling diverse animal cases. Their modular design allows for easy ganging and customization, providing flexibility for expanding or reconfiguring gas systems in clinics or mobile units, ultimately reducing downtime and maintenance costs. Built with robust materials like brass and metal components, they ensure long-term reliability and corrosion resistance, delivering excellent value by extending service life in demanding veterinary environments. Compliance with NFPA 99 and CGA standards, along with ETL listing, assures veterinary professionals of consistent performance and adherence to industry best practices for animal care.

Primary Variations

Recessed Wall/Ceiling (XF11xx/XF12xx series) with automatic plaster adjustment from 1/2 to 1-1/4 inches

Console/Headwall (XF56xx/XF57xx) with optional trim plates

Surface Mount (XF21xx) for exposed installations

Surgical Arm/Ambulance (XF51xx/XF52xx) with hose barb connections and optional trim plates

Key Features

• Front-loaded valve cartridge for easy repair without removing nameplate or gas-specific parts, using a cartridge insertion tool.
• Double O-ring seal capable of supporting 10 lbs at 2 inches without leaking, serviceable without shutting off gas supply.
• Automatic secondary check valve for pressure gases to prevent free flow during primary valve service; no secondary check for vacuum or WAGD.
• Permanently color-coded nameplate with durable, scratch-resistant label for quick gas identification per NFPA 99.
• Accepts DISS gas-specific nut and nipple sets, pin-indexed for safety.
• 360° swivel inlet tube for flexible installation.
• Robust construction with brass poppet, Viton O-rings for extended life, and metal back and nameplate.
• All outlets 100% tested for flow and leaks, cleaned for oxygen service per CGA G-4.1.
• Modular design with 5-inch centers for ganging multiple outlets.
• Available in MRI-compatible versions made with non-ferrous materials (not UL listed for some models).
• Supports dispensing equipment without slides or brackets due to strong connections.
• Lab Air and Vacuum versions (TLN91XF series) with specific DISS adapters for laboratory applications in veterinary settings.
• AGSS passive scavenging outlets for waste gas disposal with 19mm and 30mm connections.

Veterinary Applications

In veterinary practices, these Medical DISS outlets are indispensable for delivering controlled medical gases during surgeries, dental procedures, and critical care for animals ranging from small pets to large livestock. They integrate seamlessly with anesthesia machines, ventilators, and suction systems in hospitals, clinics, and ambulatory services, ensuring precise oxygen and air supply while facilitating waste gas evacuation through WAGD options. Their reliability supports high-volume caseloads, reducing risks in emergency responses and routine check-ups, making them a trusted choice for enhancing animal health outcomes and operational efficiency.
