Dual hose retractor kits designed for managing medical gas hoses in veterinary settings, ensuring tidy storage and easy access.

• Features: Stainless steel spring construction for durability; stainless steel chain 24″ (610 mm) long; heavy-duty 8-10 oz retraction force for reliable pull-back.
• Materials: Stainless steel (spring and chain).
• Compatibility: Compatible with 1/4″ ID and 5/16″ ID hoses for various medical gases.
• Available Sizes/Lengths: Chain length: 24″ (610 mm).
• Connection Types: Integrates directly with hose ends.
• Part Numbers: 88-0211 (for 1/4″ ID hoses); 88-1117 (for 5/16″ ID hoses).
• Typical Usage: Used with hose assemblies to keep hoses organized and retracted in surgical or treatment areas, preventing tangling and improving workflow in clinics.

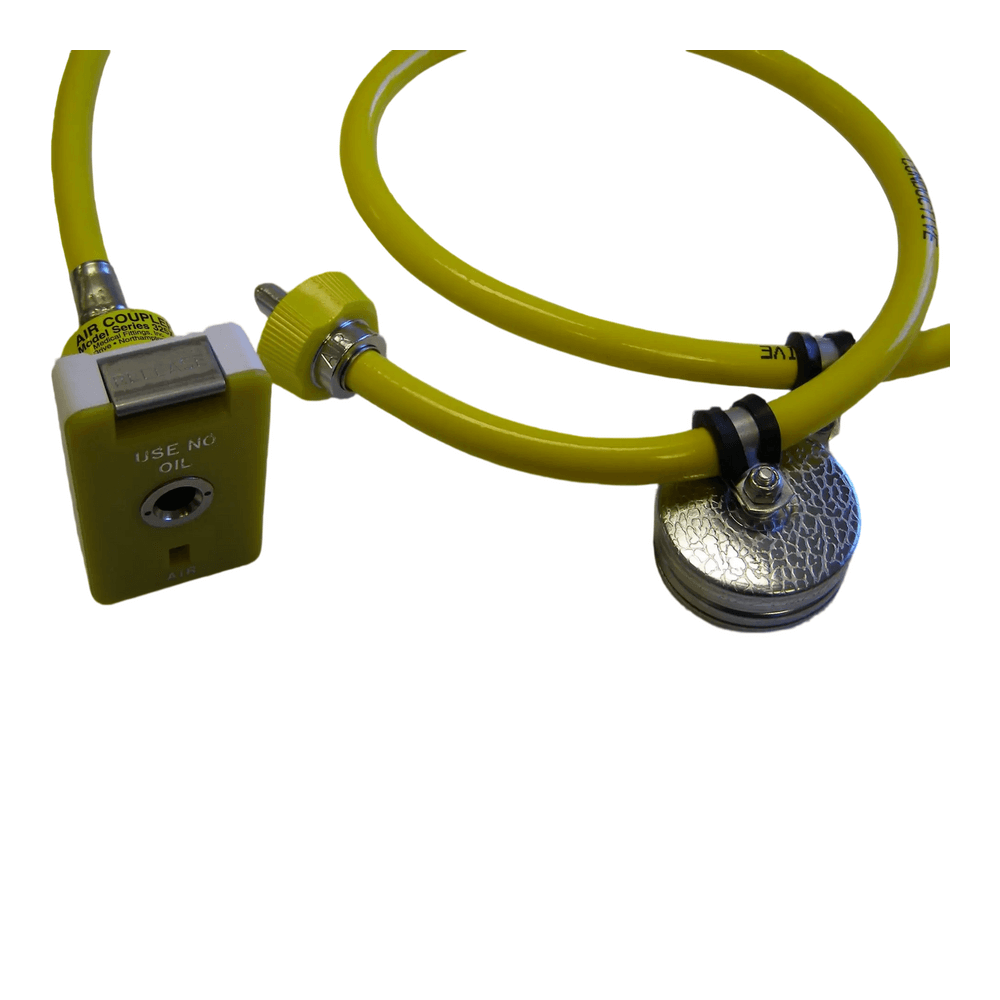

Flexible, customizable hose assemblies for transporting medical gases from sources to equipment in veterinary anesthesia and respiratory systems.

• Features: Modular for custom orders; conductive (except non-conductive for WAGD); optional 90-degree angles; NFPA color-coding for gas identification.
• Materials: Durable, flexible tubing suitable for medical-grade use (specifics not detailed).
• Compatibility: Supports Nitrous Oxide (blue), Carbon Dioxide (gray), Nitrogen (black), Medical Air (yellow), Medical Vacuum (white), Oxygen (green), WAGD (purple).
• Available Sizes/Lengths: Inner diameters: 1/4″ or 5/16″; lengths customizable in inches (e.g., 96″); calculated based on installation (floor-to-ceiling minus 4′-8″ with retractors or 6′-4″ without).
• Connection Types: Inlet/outlet options: Allied Chemetron female coupler (AF), Oxequip male adaptor (RM), Allied Chemetron male adaptor (AM), Schrader female coupler (SF), DISS male body adaptor (BA), Schrader swivel male adaptor (SM), DISS male demand valve (DV), DISS wrench tight female nut & nipple (WT), Oxequip “07” male adaptor (EM), blank end (XX), DISS hand tight nut & nipple (HT), 1/8” female/male pipe thread (2F/2M), Ohmeda female coupler (MF), Ohmeda male adaptor (MM), 1/4” female/male pipe thread (4F/4M), Puritan female coupler (PF), Puritan male adaptor (PM).
• Part Numbers: Format: H S GG LLL II OO (e.g., H4296WTMM for 1/4″ ID green oxygen hose 96″ long with DISS wrench tight on one end and Ohmeda male on the other).
• Typical Usage: For delivering gases in post-operative recovery, anesthesia, and waste gas evacuation; ideal for ceiling-mounted systems in high-volume veterinary practices.

Y couplers (assemblies) that split one gas source into two outlets for simultaneous connections in veterinary gas systems.

• Features: Provides two check unit outlets from one adapter; safe and effective for expanding connections without compromising flow.
• Compatibility: Oxygen, Medical Air, Vacuum.
• Connection Types: Ohmeda-style (one male adapter to two female check unit couplers); Chemetron-style (one male adapter to two female check unit couplers); DISS (one female hand-tight nut & nipple to two male check units).
• Part Numbers: YCM-24, YCM-16, YCM-22 (Chemetron-style for oxygen, air, vacuum); YCA-24, YCA-16, YCA-22 (Ohmeda-style); YCD-24, YCD-16, YCD-22 (DISS).
• Typical Usage: Allows multiple devices (e.g., ventilator and suction) to connect to a single hose or outlet, useful in emergencies or multi-patient setups.

Male quick connect adapters for fast, secure probing and connection in medical gas systems (details limited; based on general adapter usage).

• Features: Quick snap-in functionality; gas-indexed to prevent mismatches.
• Materials: Chrome-plated brass or similar for corrosion resistance.
• Compatibility: Various gases including oxygen, air, vacuum; compatible with quick connect styles like Ohmeda, Chemetron, Puritan.
• Available Sizes/Lengths: Connection ends: 1/8″ NPT male, 1/4″ NPT male, 1/4″ or 5/16″ hose barbs.
• Connection Types: Male quick connect mating; compatible with female couplers.
• Part Numbers: Not specified in sources (refer to style-specific like MM for Ohmeda male, PM for Puritan male in hose assemblies).
• Typical Usage: Enables rapid equipment swaps in clinics, such as connecting probes to hoses for gas verification or delivery.

DISS male probe adapters, including demand check valves, for mounting sensors or gauges in pipelines without interrupting gas flow.

• Features: Allows removal for repair without shutdown; max pressure 200 psi; cleaned for oxygen per CGA G4.1; complies with CGA and NFPA 99.
• Compatibility: Nitrous Oxide, Carbon Dioxide, Nitrogen, Medical Air, Medical Vacuum, Oxygen, WAGD, Instrument Air.
• Available Sizes/Lengths: Adapters for 1/8″ or 1/4″ NPT connections.
• Connection Types: DISS male demand valve x 1/4″ NPT male; DISS female nut & nipple x 1/8″ NPT male with o-ring; adapters like 1/4″ NPTM x 1/4″ NPTF.
• Part Numbers: Complete kits: PS-04 (Nitrous Oxide), PS-08 (Carbon Dioxide), PS-12 (Nitrogen), PS-16 (Medical Air), PS-22 (Vacuum), PS-24 (Oxygen), PS-32 (WAGD), PS-2080 (Instrument Air); components like 17-0100 (DISS male demand valve in Oxygen).
• Typical Usage: For installing pressure switches, sensors, or gauges in gas pipelines; essential for maintenance in veterinary facilities without disrupting services.

Female quick connect couplers with check units for controlled gas flow and probing (details inferred from related quick connect components).

• Features: Check unit for automatic flow stop; quick connect for easy attachment; color-coded.
• Materials: Chrome-plated brass or equivalent.
• Compatibility: Various gases; matches male quick connect adapters in styles like Ohmeda, Chemetron.
• Connection Types: Female quick connect with check unit; mates with male adapters.
• Typical Usage: Used in adapters or Y assemblies for secure, leak-free connections to probes or equipment in anesthesia setups.

DISS female probe adapters for connecting secondary equipment to DISS terminal outlets in veterinary gas systems.

• Features: Hand-tight knobs for easy installation; color-coded for gas identification; available in ISO color code options.
• Materials: Chrome-plated brass.
• Compatibility: Oxygen (green), Air (yellow), Vacuum (white), Nitrous Oxide (blue), Nitrogen (black), WAGD/EVAC (purple), Carbon Dioxide (grey), Instrument Air (red).
• Connection Types: DISS female hand-tight nut & nipple x 1/8″ NPT male, 1/4″ NPT male, 1/4″ hose barb, 5/16″ hose barb.
• Part Numbers: HT-124-2 (Oxygen, 1/8″ NPT male), HT-124-4 (Oxygen, 1/4″ NPT male), HT-124-4B (Oxygen, 1/4″ hose barb); similar for other gases like HT-116-2 (Air), HT-122-5B (Vacuum, 5/16″ hose barb), etc.
• Typical Usage: Connects hoses or devices to wall outlets for gas access; ideal for quick setups in intensive care or surgical environments.
