Description
Pulse Oximetry

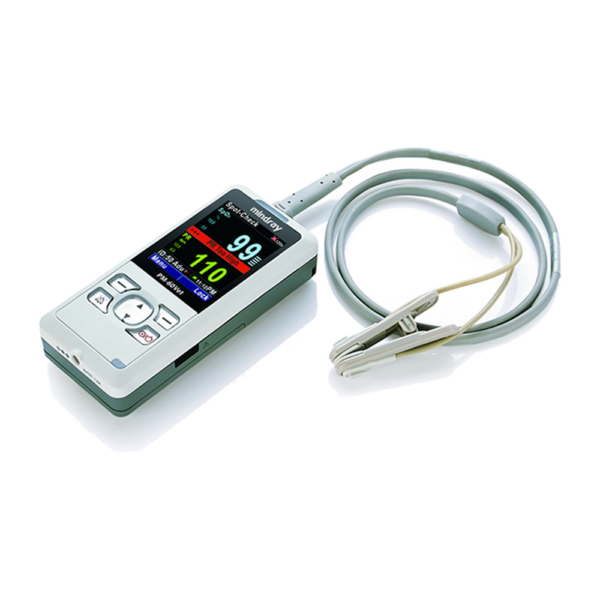

Mindray PM60 Vet Portable Pulse Oximeter
A pocket-sized pulse oximeter for large and small animals, with spot-check and continuous monitoring modes.
2.4 in
Color TFT screen
0 to 100%
SpO2 range
18 to 300
Pulse rate, bpm
36 h
Run time on 3 AA cells
Overview
The Mindray PM60 Vet is a pocket-sized pulse oximeter for veterinary use. Mindray lists it for large and very small animal patients. It measures SpO2 and pulse rate, shows a plethysmogram waveform, and works in two modes: spot check and continuous monitoring.
Readings show in large type on a 2.4 in color TFT screen (320 x 240), with a standard screen or a waveform screen. Alarm limits for high and low values are user adjustable, with 3-level audible and visual alarms. Screen brightness adjusts to save battery power.
The PM60 Vet runs on a lithium-ion battery (24 h of continuous use, 2 h to charge) or on 3 AA batteries (36 h). In continuous mode it stores up to 96 h of trends; in spot-check mode it keeps up to 4,000 records across up to 99 patients. An infrared link sends real-time patient data to a computer.
Key Features
2.4 in color TFT
SpO2 and pulse values show in a large font, with a standard screen or a plethysmogram waveform screen.
Two working modes
Spot check for quick readings, or continuous monitoring with trend storage up to 96 h.
Adjustable alarms
User-set high and low limits with 3-level audible and visual alarms.
Lithium or AA power
24 h on the lithium-ion battery or 36 h on 3 AA batteries.
Spot-check memory
Stores up to 4,000 spot-check records for up to 99 patients.
Infrared data link
Sends real-time patient data to a computer over infrared.

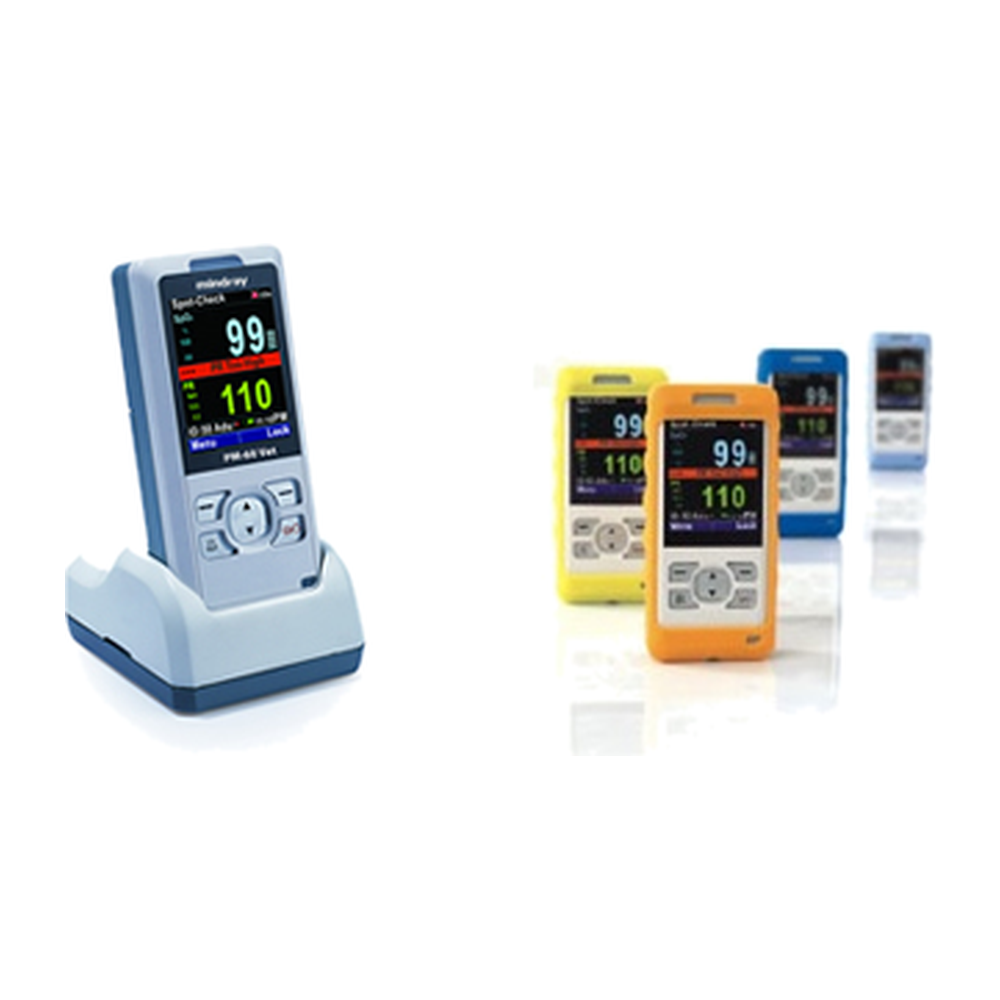

Charging stand and covers
Lithium-ion or AA power
The lithium-ion battery charges in the charger stand in about 2 h and runs about 24 h of continuous monitoring. With 3 AA batteries, the PM60 Vet runs about 36 h.
Protective covers and a carrying case are available for portable use.
Available options
- Main unit with standard reusable SpO2 sensor
- Charger stand and battery charging kit for the lithium-ion battery
- Protective cover
- Carrying case
- Pole mounting kit
- Data management kit
Veterinary Applications
Mindray lists the PM60 Vet for large and very small animal patients, for quick spot checks or continuous SpO2 and pulse monitoring.
- Exam room spot checks
- Continuous SpO2 monitoring
- Large animal patients
- Small animal patients
