Veterinary Pulse Oximetry

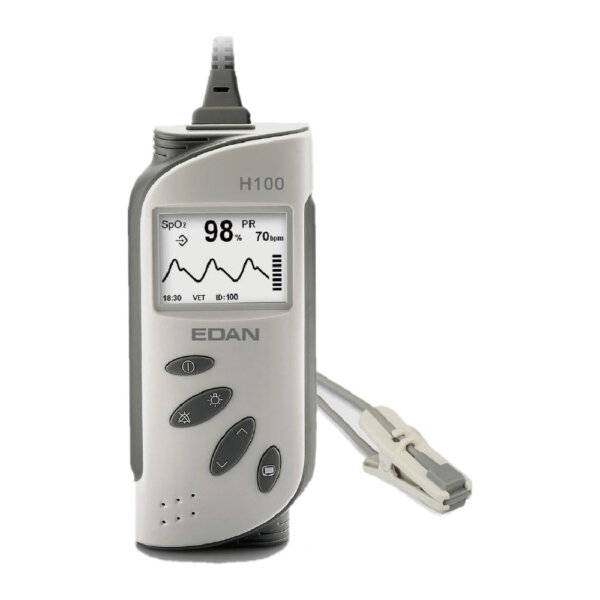

Veterinary Handheld Pulse Oximeter with Y-Site Probe
Pocket-size SpO2 and pulse rate monitor for spot checks and continuous monitoring, supplied with a Y-site probe and large and small lingual clips.
0 to 100%
SpO2 range
48 h
On 4 AA alkaline batteries
30 h
On the Ni-MH rechargeable pack
165 g
Without batteries
Overview
This veterinary handheld pulse oximeter measures SpO2 and pulse rate in a pocket-size unit that is easy to carry and use anywhere in the practice. It works in monitoring mode or spot check mode, and the backlit LCD shows readings as large numbers or with a live plethysmogram.
Trend tables and trend graphs are available on screen, and the unit stores up to 300 hours of SpO2 data for 100 patient IDs. It runs up to 48 hours on 4 AA alkaline batteries or up to 30 hours on a Ni-MH rechargeable battery pack, with an optional charger stand. Automatic power-off saves power when the unit is not in use.
Key Features
SpO2 and pulse rate
Measures SpO2 from 0% to 100% and pulse rate, with SpO2 pulse-tone modulation (pitch tone).
Two display modes
Backlit 128 x 64 LCD. Big Numeric Mode shows SpO2, PR, and a bar graph. Waveform Mode adds the plethysmogram.
Monitoring or spot check
Two work modes cover quick spot checks and continuous monitoring. Real-time clock on the display.
Trend review and storage
Trend table and trend graphs on screen. Stores up to 300 hours of SpO2 data and 100 patient IDs.
Two power options
Up to 48 hours on 4 AA alkaline batteries, or up to 30 hours on the Ni-MH rechargeable pack. Automatic power-off saves battery.
Adjustable alarms
Audible and visual alarms with adjustable settings for SpO2 and pulse rate.
Sensor setup
Supplied with this veterinary sensor setup:
- Y-site probe
- Standard lingual sensor clips, large and small
Veterinary Applications
A pocket-size pulse oximeter for veterinary teams that need SpO2 and pulse rate at hand.
- Spot checks of SpO2 and pulse rate
- Continuous SpO2 and pulse rate monitoring
- Plethysmogram and trend review at the patient
- Battery-powered use between rooms
- Dogs, cats, and other animals
