Description

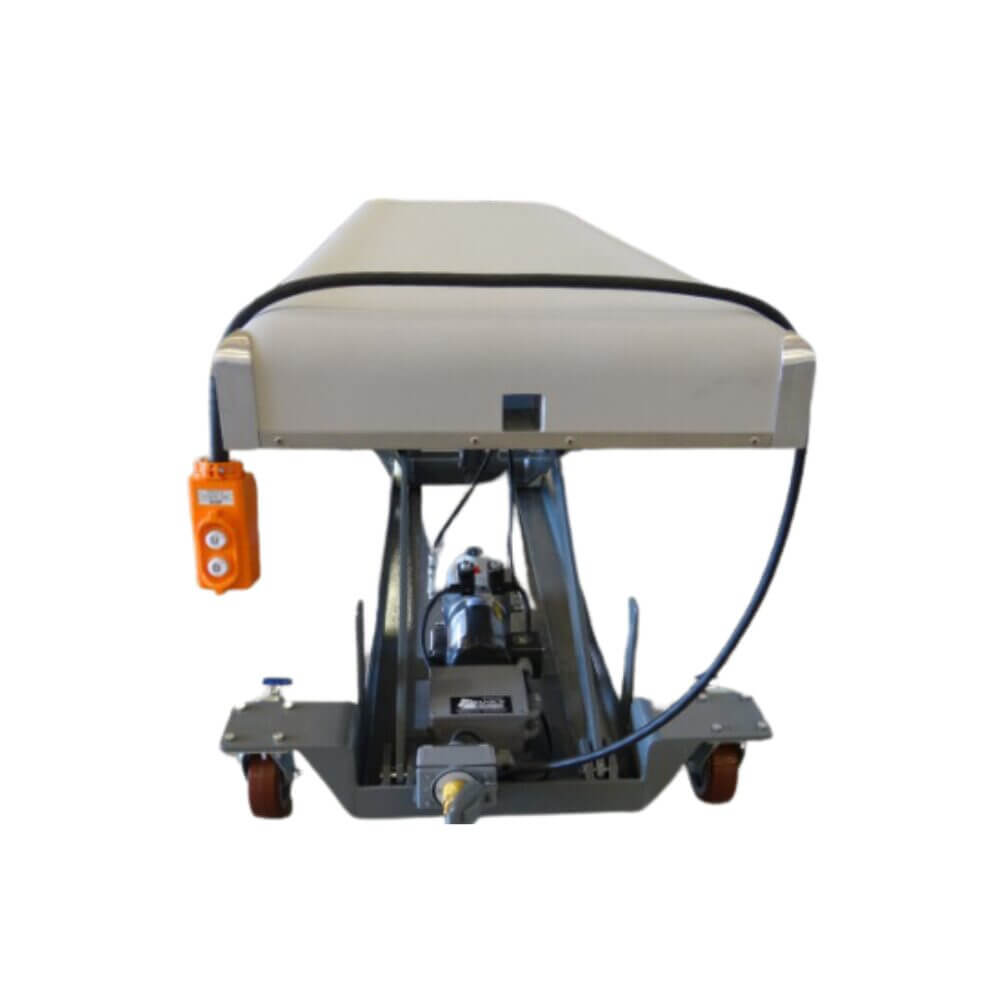

The Endura SL is designed for surgery on medium sized farm animals, goats, sheep and large domestic pets weighing up to 1,000 lbs.

Technical Specifications

• 24” x 84” lateral surface (61cm x 213cm)
• Affixed padding (approximately 2”/5cm
  thick) – gray in color
• 6” swivel casters (2 rigid, 2 swivel with
  brakes)
• Self-contained power unit with hand control
  push button solenoid pendant
• Halter ties at various locations
• Hot dip galvanized/painted structural frame
• Lowered height 15” (38cm)
• Raised height 44” (112cm)
• Rated for 1,000 lbs. (454 kg)
• Optional Table Top Size:  Table top can also be 32” x 72” (81cm x
  183cm)

Hydraulic System and Operation

The Table is user friendly and merely requires access to power for operation. The hydraulic system is controlled by a hand pendant control with simple UP and DOWN functions. The table
can be stopped at any position during raising and lowering.

Electrical Details/Amps

The electrical system can be wired for US/North American NEMA electrical requirements, or for country specific requirements for tables exported out of North America. Details for different
electrical configurations and the amp usage are listed below:

• 115V / 60 hz – 8.2 amps
• 230V / 50 hz – 4.1 amps
