Petlift LowMax Surgery ES Electric Lift Table

Web ID:

18732

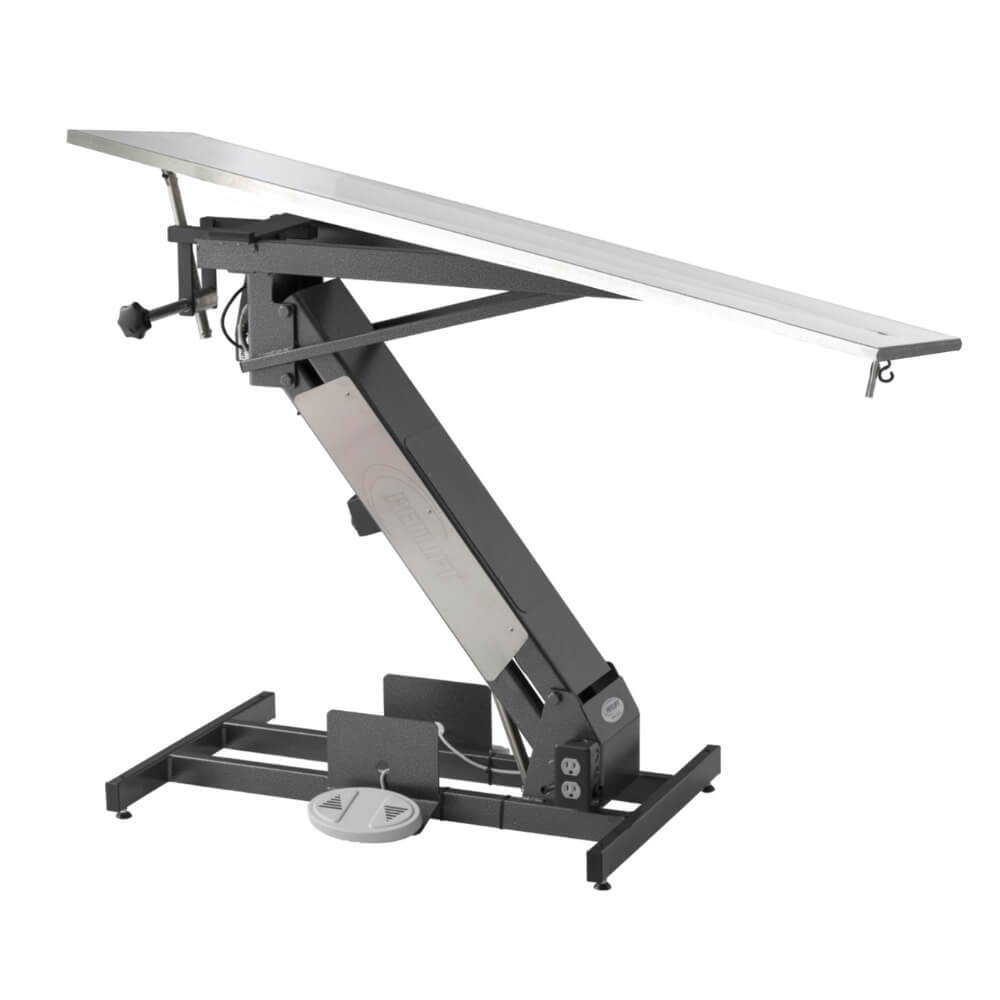

Petlift LowMax Surgery ES Electric Lift Table

A great economy surgery table with electric operation for graceful raising and lowering of the patient. Designed with a tilt-top mechanism to ease your surgical procedures, this high-quality table boasts a smooth electric operation and raises to 41″ high.

SKU 000.946.0003 Category Tag

Description

A great economy surgery table with electric operation for graceful raising and lowering of the patient. Designed with a tilt-top mechanism to ease your surgical procedures, this high-quality table boasts a smooth electric operation and raises to 41″ high. For added versatility, we have added a convenient duplex electric outlet on the base, for easy plug-in of electrically operated implements. The heavy duty stainless steel top has raised-edges and channels, to direct fluids to the drain outlet and comes equipped with a hook for an optional collection pail. This table provides complete surgery functions, with a sleek, slimline look, and a powerful lift capacity.

  • Surgery top is fabricated with 304-grade, 16-gauge stainless steel

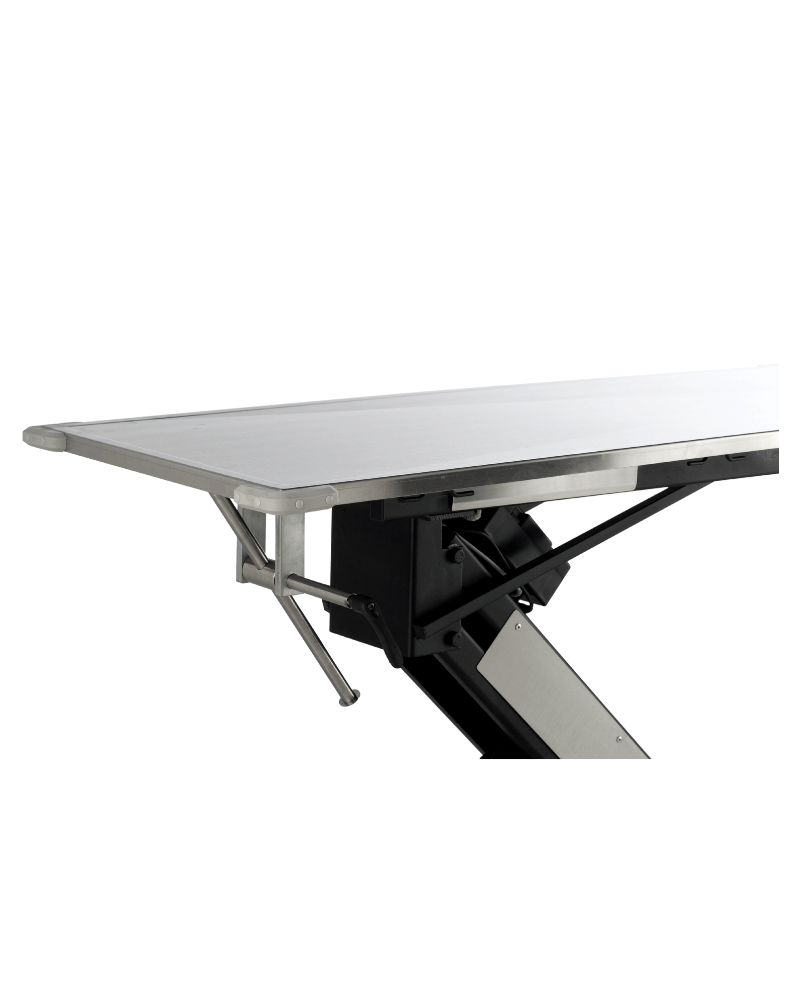

  • Top measures 22″W x 58″L with raised edge to prevent dripping
  • Channels in top to direct fluids to the drain outlet with pail hook
  • Top has four tie-down restraint cleats

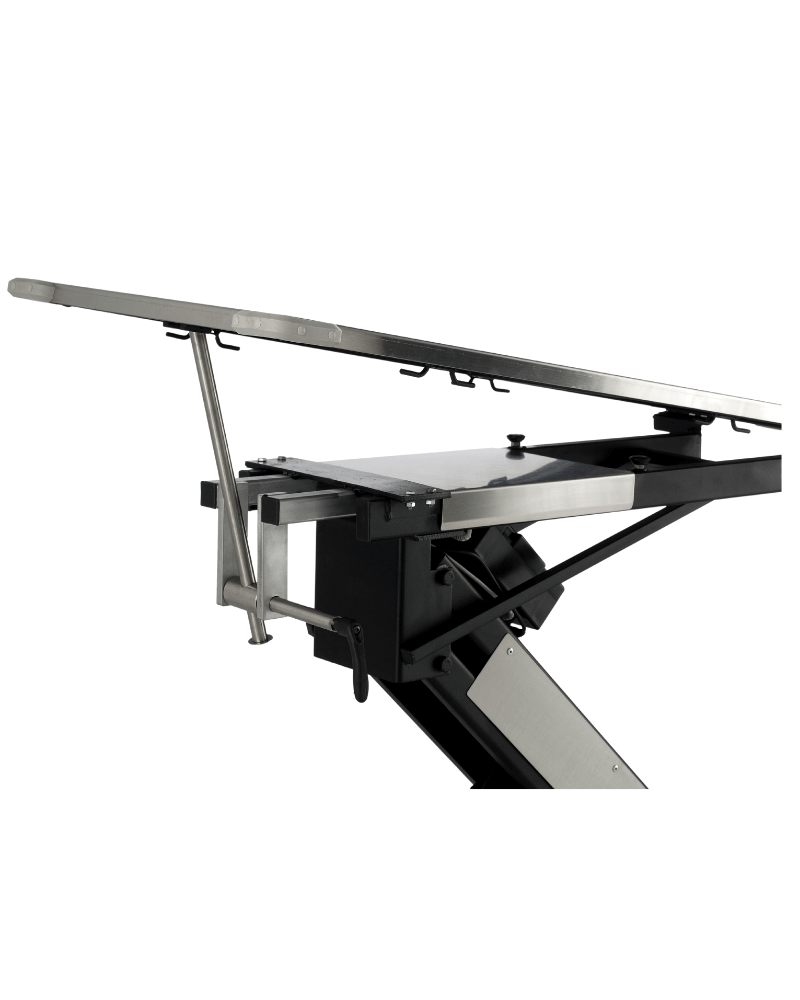

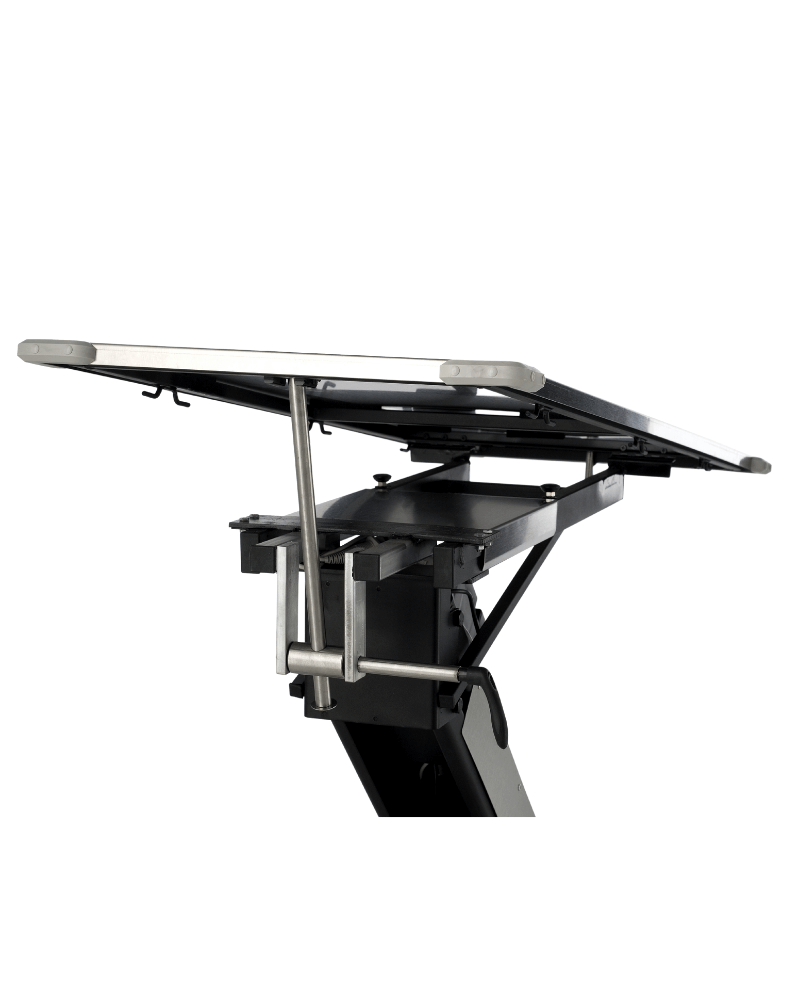

  • Easy, hand-adjustable tilt-top mechanism
  • The base is double powder coated and will stand up to cleaning and disinfecting solutions
  • Foot operated pedals on both sides, raises from 13 1/2″ to 41″ high
  • Smooth lowering and lifting function capacity up to 300 lbs.
  • A stationary table with plug-in electric operation
  • Duplex electric outlet on base
  • Adjustable leveling feet on base
Manufacturers Part:  TSZ-9090E


Accessories Included

  • Tilt Mechanism
  • Top w/Drain Hole & Pail Hook
  • Tie Downs
  • Adjustable Floor Levelers

Optional Accessories

  • SS Collecting Pail 13 Qt. A11-230
  • Table Topper A70-TP1
  • LowMax Surgery ES Electric Lift Table A70-FLX-RED

Specifications

Base Info

Lowers to: 13 1/2″
Raises to: 41″
Capacity: 300 lbs.
Power: Electric
Material: 7 ga.
Finish: Powder Coated

Top Specs

Width: 22″
Length: 58″
Material: 16 ga ss
Type: Tilt-Top & Drain Hole
Shape: Rectangular

Product Dims & Weight

Width: 22″
Length: 58″
Weight: 197 lbs.

Shipping Dims & Weights

Width: 40″
Length: 64″
Height: 30″
Weight: 300 lbs.

Additional information

Manufacturers Part

TSZ-9090E

Warranty

2 Year Warranty for the original buyer against defects in material or workmanship under normal use in the service for which the product is intended. Includes table top and hydraulic pump. 5 Year Warranty for the Table Frame for the original buyer against defects in material or workmanship under normal use in the service for which the product is intended.
