Name: VXR Veterinary Table Top X-Ray Radiography System
Brand: Infinium
Availability: InStock

Description

The VXR is an advanced veterinary digital x-ray system capable of seamless generator integration with veterinary imaging software. This compact VXR system offers conventional or full digital x-ray capabilities with a 4-way moveable table table top, x-ray control system, and built-in generator. The system has optional: foot pedal control, compression belt, tabletop urine trap, and mobile casters. The touch-screen generator and power table veterinary X-ray system is ideal for practitioners focused on value, practical features and reliability.

Convenient & Flexible with Multiple Table Sizes & Control Displays

Adjustable 4-way top 59.1”x 28.2” x 1.8”, VXR-E32, 32kw, 125kV, 230V Single Phase +/- 10%, 75A, 400mA
Powerful Digital Radiography System: Fully integrated DR system; Seamless workflow; DICOM 3.0
Compatible; VHS, Animal Positioning Guide.
Intuitive Touch Screen Control Console: Angle adjustment of control console available for easy viewing; Simple knob type controller for exposure parameter control(kV, mA, Time, mAs); Graphical User APR (Anatomically programmed radiography) optimizes workflow; Touch friendly GUI design.
Convenient Maintenance: Easy to use generator is low maintenance and built to last; Robust self-calibration & easy self-diagnosis for X-ray generator and tube.
Support Specialized Measurement: VHS (Vertebral Heart Scale) to find potential heart issues; TPLO(Tibial Plateau Angle) to find joint issues.
Animal Positioning Guide: Provides an animal positioning guide in graphical and textual format; Useful as both learning supplement and reference book.
Low Dosage & High Image Quality: Optimal image quality at a low exposure, to protect the staff and animal patients.
Customer Service Center: 24/7 Support, 365 days a year via email or Skype; Remote Diagnosis.
Flexible for small offices with generator housed inside table platform.
47.2″, 59.1″, 70.9″, & 78.7″ table width options.
All table tops are 28.2″ Deep X 1.8″ Thick

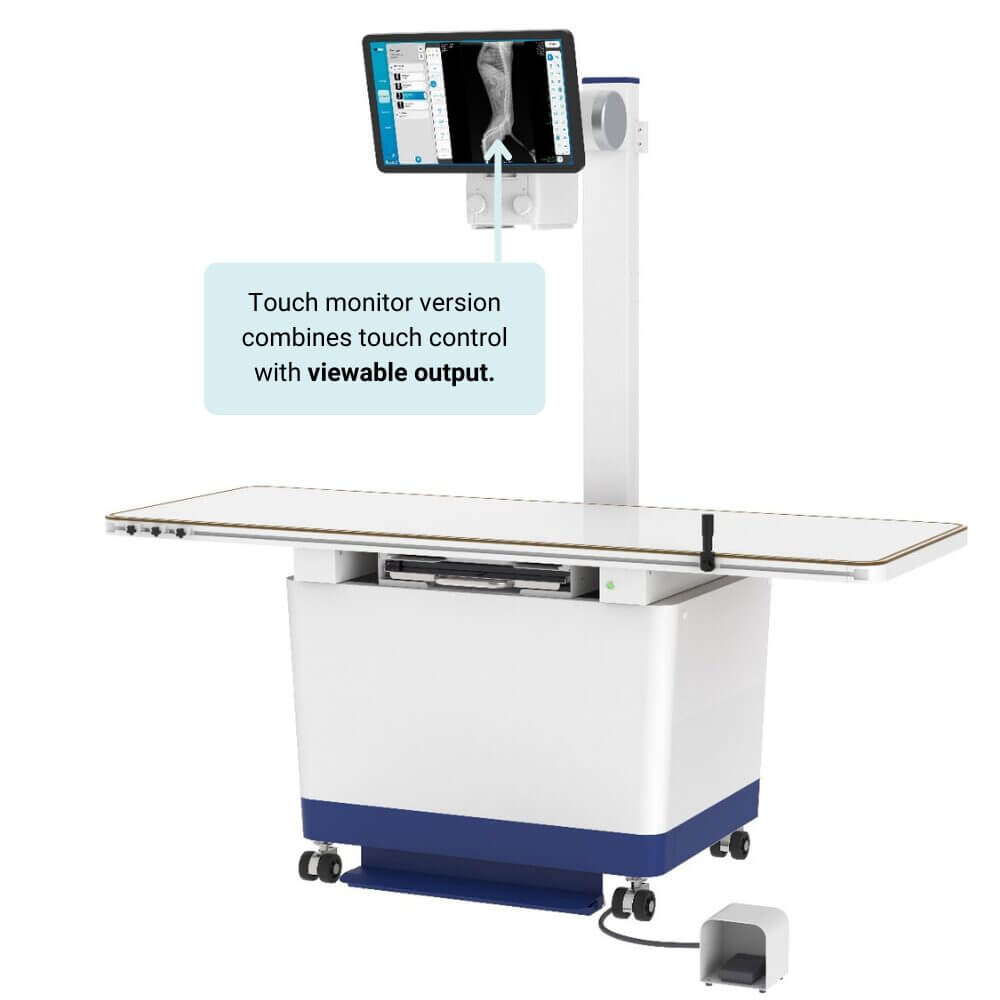

Standard touch controls AND/OR HD Monitor Display Control

Powerful Digital Radiography System

Fully integrated DR system
Seamless workflow
DICOM 3.0 Compatible
VHS, Animal Positioning Guide

Supports Specialized Measurement & Animal Positioning

VHS (Vertebral Heart Scale) to find potential heart issues
TPLO(Tibial Plateau Angle) to find joint issues
Provides an animal positioning guide in graphical and textual format
Useful as both learning supplement and reference book

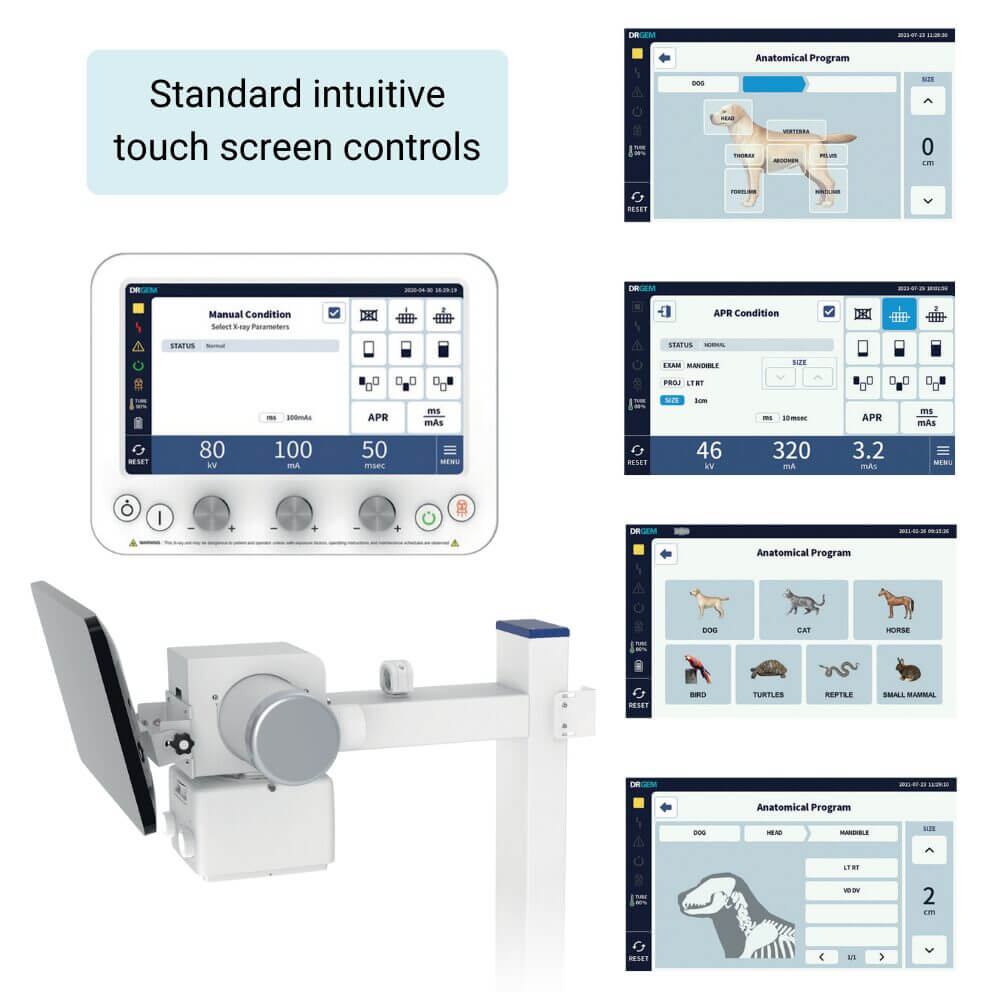

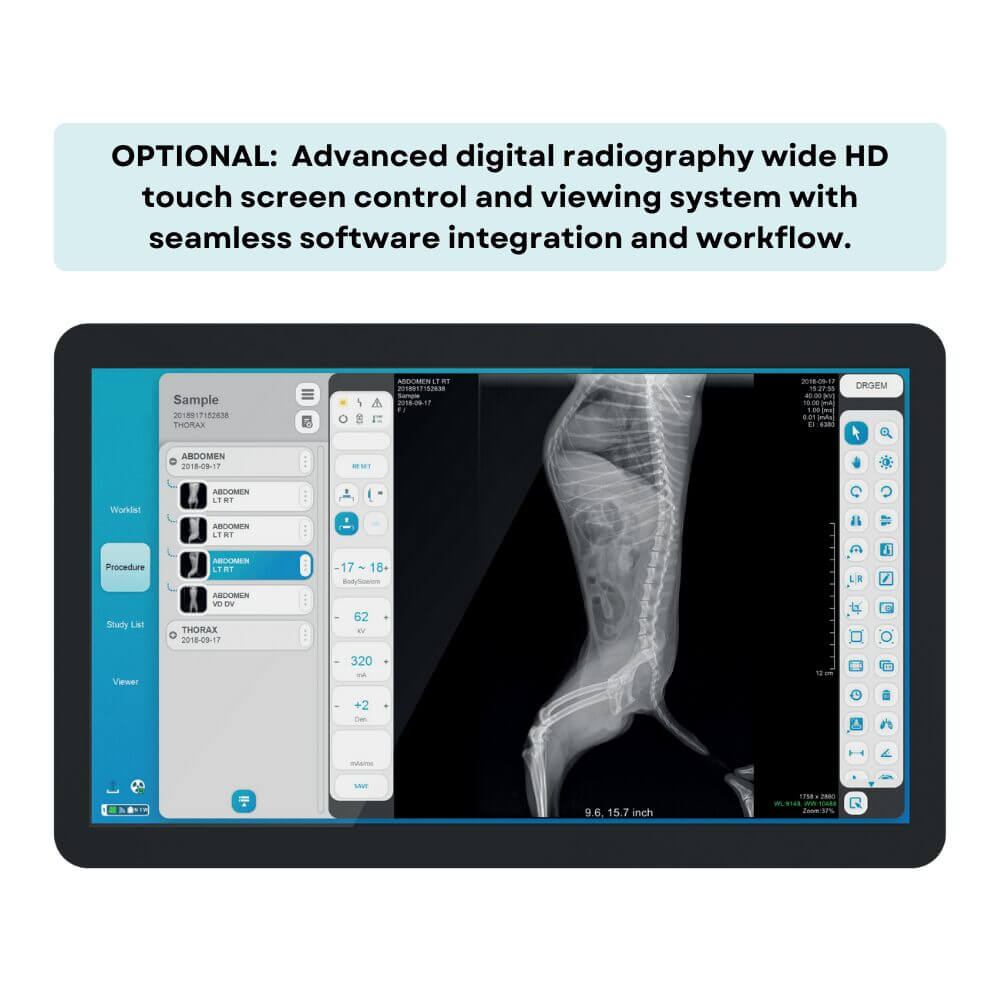

Intuitive Touch Screen Control Console or Optional 23″ Touch Monitor

Angle adjustment of control console available for easy viewing
Simple knob type controller for exposure parameter control(kV, mA, Time, mAs)
Graphical User APR (Anatomically programmed radiography) optimizes workflow
Touch friendly GUI design

Convenient Maintenance

The easy-to-use generator is low maintenance and built to last
Robust self-calibration & easy self-diagnosis for X-ray generator and tube

Standard Configuration

Veterinary X-Ray System, Stationary Table, Adjustable 4-way top 59.1”x 28.2” x 1.8”, VXR-E32, 32kw, 125kV, 230V Single Phase +/- 10%, 75A, 400mA

VXR-E is compact and powerful veterinary X-ray system, combining space-efficient hardware with powerful imaging software. This innovative touch screen generator and power table veterinary X-ray system is ideal for practitioners focused on value, practical features and reliability.
Powerful Digital Radiography System: Fully integrated DR system; Seamless workflow; DICOM 3.0 Compatible; VHS, Animal Positioning Guide.
Intuitive Touch Screen Control Console: Angle adjustment of control console available for easy viewing; Simple knob type controller for exposure parameter control(kV, mA, Time, mAs); Graphical User APR (Anatomically programmed radiography) optimizes workflow; Touch friendly GUI design.
Convenient Maintenance: Easy to use generator is low maintenance and built to last; Robust self-calibration & easy self-diagnosis for X-ray generator and tube.
Support Specialized Measurement: VHS (Vertebral Heart Scale) to find potential heart issues; TPLO(Tibial Plateau Angle) to find joint issues.
Animal Positioning Guide: Provides an animal positioning guide in graphical and textual format; Useful as both learning supplement and reference book.
Low Dosage & High Image Quality: Optimal image quality at a low exposure, to protect the staff and animal patients.
Customer Service Center: 24/7 Support, 365 days a year via email or Skype; Remote Diagnosis.

Standard Veterinary X-ray System, 32kW, 125kV, 400mA

GXR-E32: High Frequency X-ray Generator

Output: 32kW, 125kVp, 400mA,
Input: 1Ø 220-230VAC+/-10%

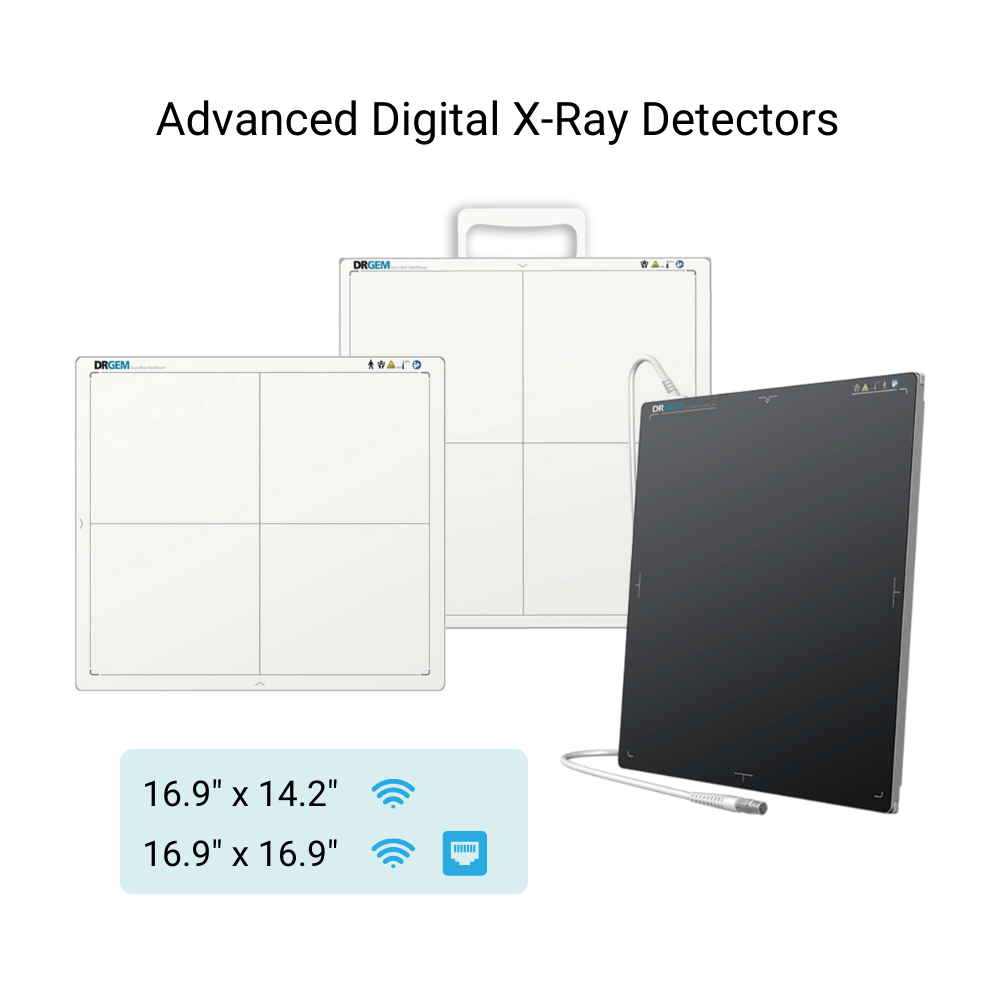

Mano4343W: Flat panel detector

17×17 wireless, portable, CsI including S/W
DXT-8M: X-ray Tube, 1.0/2.0mm, 140kHU
Table: 4-way Table with Tube stand

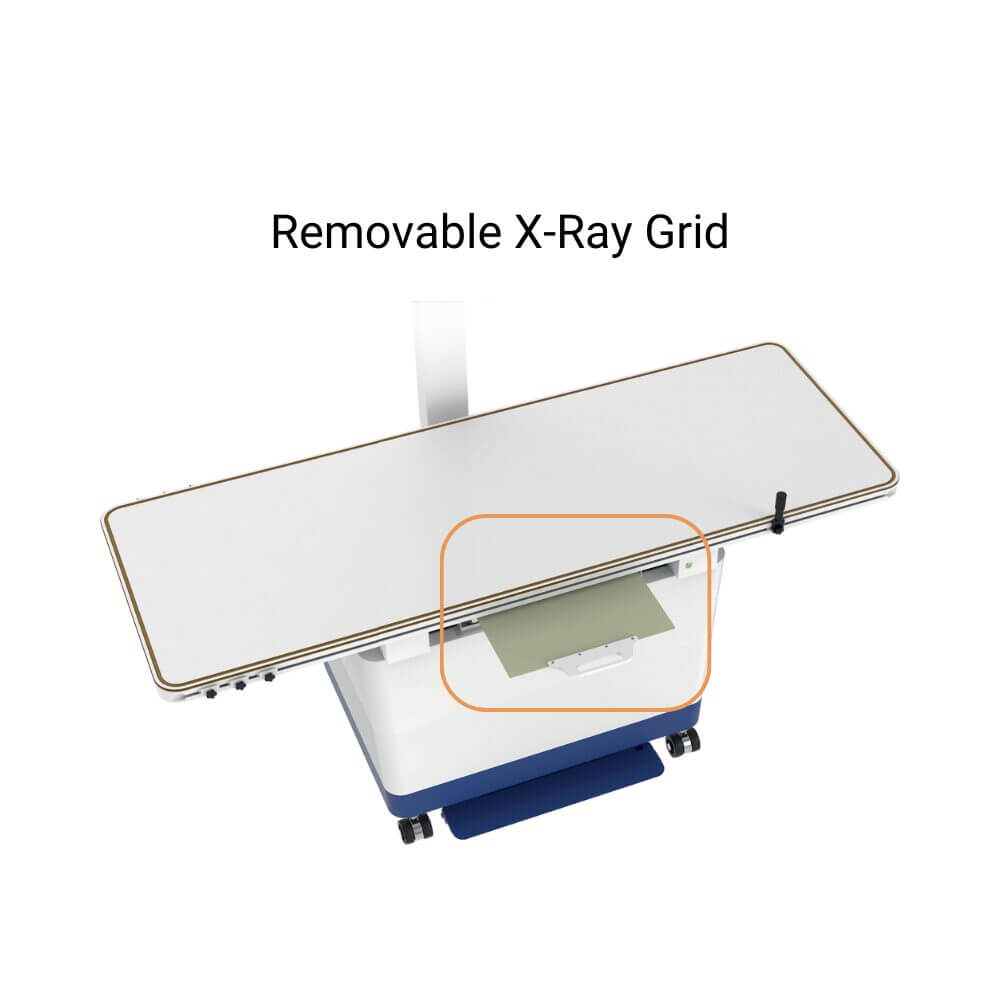

FD 100cm, 103lpi, 10:1, Removable

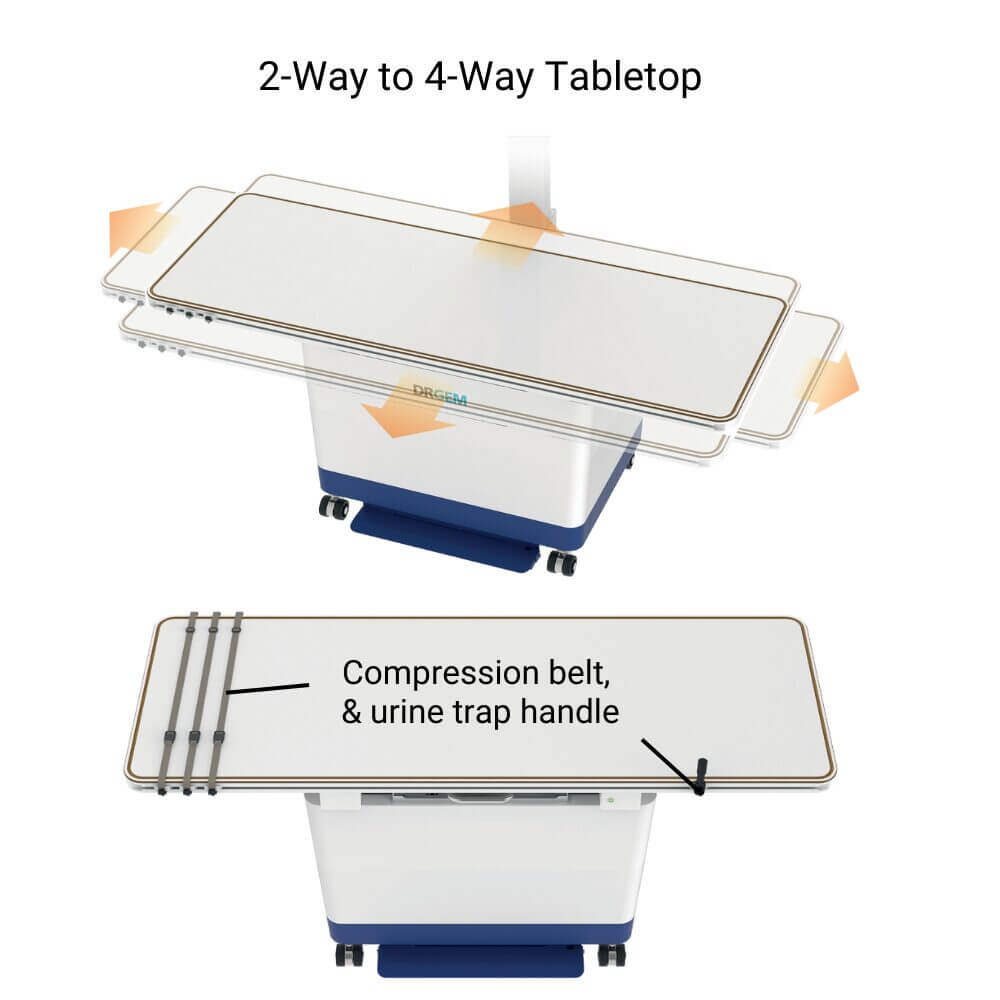

Tabletop 1,500 mm with Compression belt

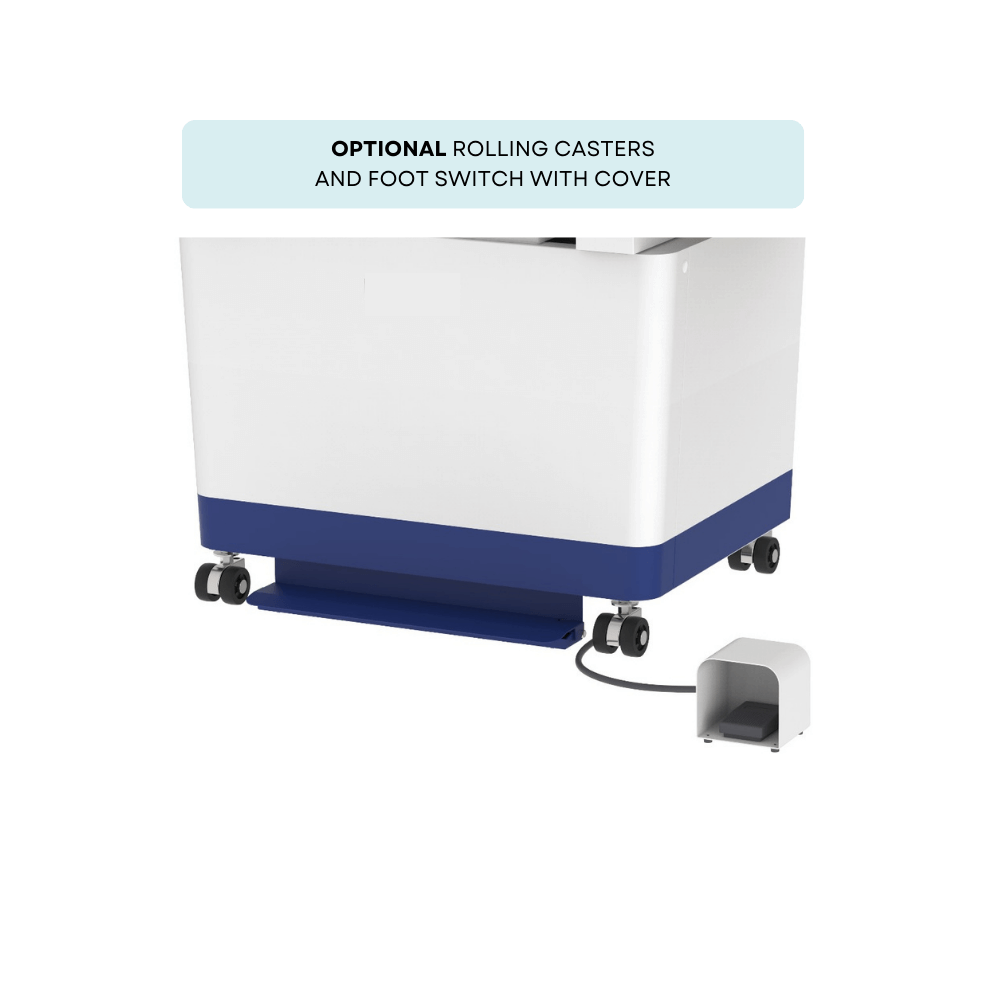

Urine trap, Handle, Caster and Exposure Foot Switch Cover

DXC-RML: Manual Collimator, LED Lamp

HVC-8: 8 meter HV Cable, Pair 1
Built-in PC and Touch Monitor

Generator Options

Low Dosage X-Ray Generator Model Options

Optimal image quality at a low exposure, to protect the staff and animal patients
Generator Power Options: 20kW, 25kW, 32kW, 40kW
Line Power Rating: 200V-240V, 1Φ, ±10% (50/60Hz) / 100-120V, 200V-240V, 1Φ, ±10% (50/60Hz)
Reproducibility: Coefficient of Variation: kV < 0.005, Time < 0.005, mAs < 0.01, mR < 0.01
Accuracy: kV < ±(1%+1kV), mA < ±(3%+1mA), Time < ±(1%+0.5ms), mAs < ±(3%+0.1mAs)
Linearity: Coefficient of Linearity < 0.01 : CL = (X1-X2)/(X1+X2), where X is mR/mAs
