Medical Illumination MI-750 Surgical Lights

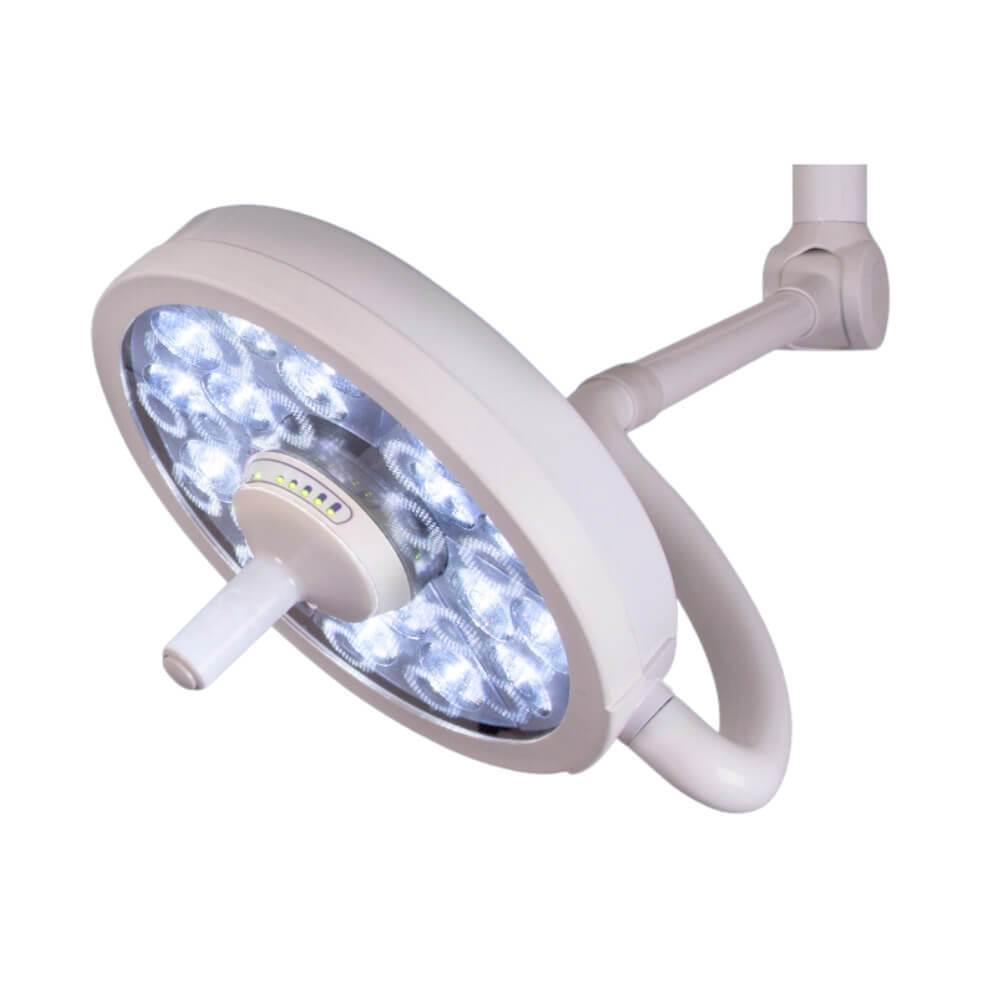

Medical Illumination MI750 Single Head Surgical Light
Medical Illumination MI750 Dual Head Ceiling Mount Surgical Light
Medical Illumination MI-750 single veterinary surgical light on a rolling stand

Web ID:

19716

Medical Illumination MI-750 Surgical Lights

This mid-sized light is designed for surgery and procedures, the MI-750 delivers maximum brightness, sharpness and color accuracy. This allows you to visualize your work precisely. 3-stage dimming lets you easily control brightness within the illumination field.  The MI Series features long arms that provide an 11-foot circle of reach, along with smooth movement, maneuverability, and an advanced mounting system.

Category
Quote Cart

Description

This mid-sized light is designed for surgery and procedures, the MI-750 delivers maximum brightness, sharpness and color accuracy. This allows you to visualize your work precisely. 3-stage dimming lets you easily control brightness within the illumination field.



The MI Series features long arms that provide an 11-foot circle of reach, along with smooth movement, maneuverability, and an advanced mounting system.



  • Very low heat
  • Output rated at 75,000 LUX at 1 meter
  • 4,300° K pure white illumination
  • CRI (Color Rendering Index) of 97
  • High efficiency with half the electric consumption of standard halogen lights
  • Three-stage dimming and on/off switch controlled from a unique sterilizable handle
  • Long-life LEDs, rated at 50,000 hours
  • Superior shadow control
  • Near-zero radiated heat
  • Lower overall maintenance costs
  • 50,000 hour-rated LED life
  • Wide array of mounts for flexibility of needs

Specifications

Weight & Dimensions

  • Light Head Weight: 9 lb (4.1 kg).
  • Light Head Diameter: 14.5” (37 cm)
  • Shipping Weight: (2 packages): 64 lb (29.03 kg) / 17 lb (7.7 kg).
  • Shipping Dimensions: (2 packages):
    36” (L) x 23” (W) x 18” (H) (91.4 cm x 58.4 cm x 45.7 cm).
    80” (L) x 6” (W) x 6” (H) (203.2 cm x 15.2 cm x 15.2 cm)

Rotation

  • Arm Rotation: 540°.
  • Light Head Rotation:300°.

Power & Light Output

  • Power Supply Circuit: 100 – 240 VAC, 50 / 60 Hz.
  • Power Handling Capacity: 65 W.
  • Light Intensity Output: 75,000 lux (6,968 footcandles).
  • Light Source: Light Emitting Diode (LED) (27 W).
  • Rated LED Lifespan: 50,000 hours.
  • Number of LED: 18.
  • Light Color Temperature: 4,300° Kelvin.
  • Color Rendering Index: 97.
  • Light Field Diameter: 7.7” (20 cm).
  • Focal Length: 39.4” (1 m).
  • Depth of Illumination: 26.5” (67 cm).

Dimming Levels

  • Level 3 (100%): 75,000 lux (6,968 footcandles).
  • Level 2 (75%): 56,200 lux (5,221 footcandles).
  • Level 1 (50%): 37,500 lux (3,484 footcandles).
