Description

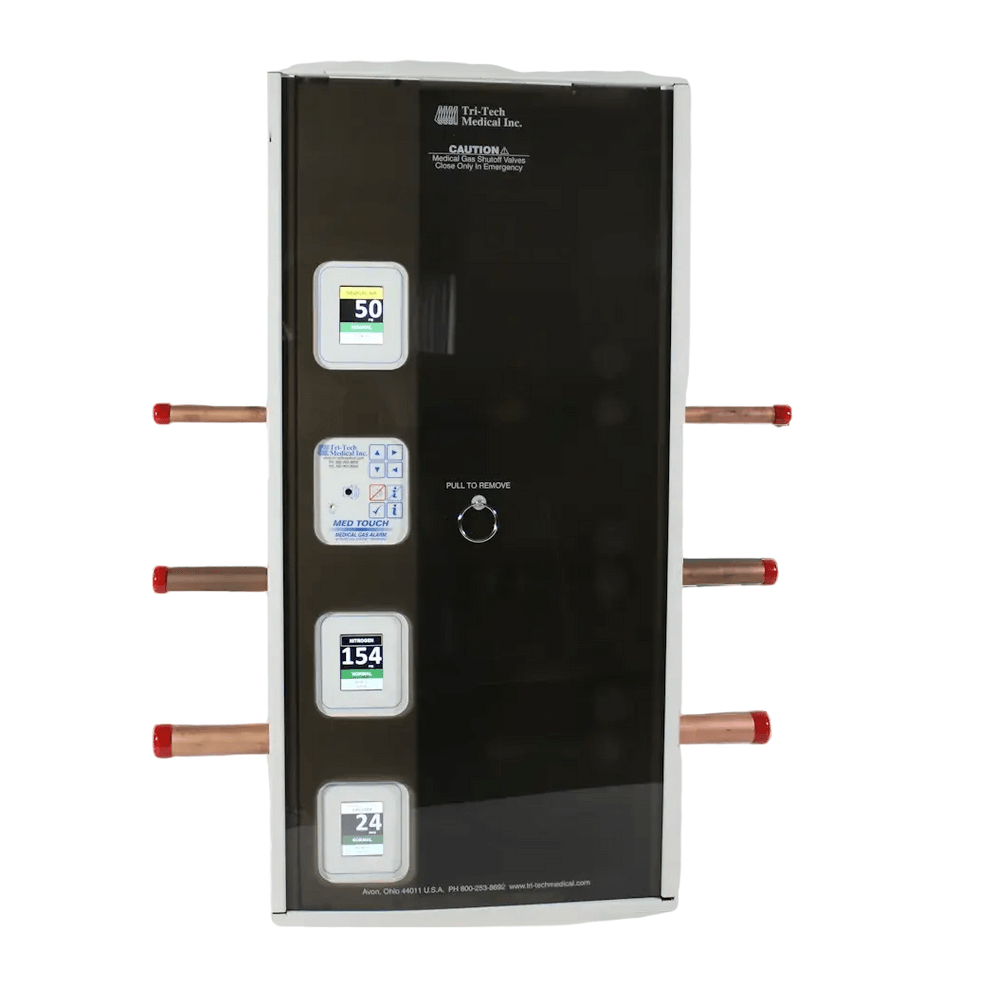

The Z T Series Integra Med Touch Area Alarm/Zone Valve Box provides veterinary professionals with a reliable, integrated system for medical gas management, combining area alarm functionality with zone valve control in a single, space-efficient panel. Designed to meet NFPA 99 standards, this microprocessor-controlled unit digitally displays gas pressures in 1 psi increments and offers customizable alarm conditions for up to 7 gases, supporting seamless operations in animal health settings where precise gas delivery is critical for procedures like anesthesia and critical care.

Advantages

This integrated alarm and valve box optimizes space in veterinary facilities by housing both monitoring and control components in one unit, simplifying installation and reducing maintenance demands. Veterinary teams benefit from its self-diagnostic capabilities and no-need-for-recalibration design, ensuring long-term reliability and cost savings. The system’s ability to provide customized emergency instructions and last event history enhances response times during gas pressure anomalies, promoting patient safety for animals undergoing surgery or respiratory support. With options for text/email notifications and Ethernet integration, it facilitates remote monitoring, allowing busy animal hospitals to maintain uninterrupted gas supply and comply with animal health regulations efficiently. Its durable construction, including blow-out proof stems and oxygen-cleaned valves, offers peace of mind in high-stakes veterinary environments.

Key Features

• Individual 2.85” LCD touch screen displays for each gas service, showing pressures in 1 psi increments with green (normal) or red (alarm) indicators.
• Supports up to 7 medical gases, with transducers included and gas-specific sensors featuring DISS nut & nipple.
• Microprocessor-controlled, ETL listed to UL 1069 and CSA C22.2 #205, compliant with NFPA 99.
• User-programmable high/low set points, with display capabilities in PSI, kPa, BAR, inHg, or mmHg.
• Emergency preparedness instructions customizable for each alarm signal, alternating with room/area monitored.
• Last event history per gas board/signal point, with audio and visual alarm indicators.
• Self-diagnostic error message display and no requirement for re-calibration.
• Dry contacts for remote monitoring of all alarm conditions.
• Pre-loaded NFPA and ISO gas labels, languages (English, English/French, English/Spanish), and editable text/alarm labels.
• All valves are dual gauge port full port ball valves, 3-piece in-line repairable with adjustable packing and blow-out proof stem design.
• Accommodates valve sizes from 1/2” to 2”, with working pressure ratings up to 600 psi (29 inHg vacuum) depending on size.
• Valves cleaned for oxygen service, provided with 1 ½” diameter gauges (0-100 psi, 0-300 psi, or 0-30 inHg scales).
• Gas alarm repeat feature factory set at 10 minutes, adjustable or turn-off capable.
• Hinged frame for easy accessibility, enclosed in 18-gauge steel box with adjustable plaster flange.
• “Smoked” translucent flexible plastic window (NFPA models) or white opaque (ISO English/French models) with caution silk-screening.
• Optional text/email notification of alarm events to up to 5 addresses.
• Optional Ethernet module for webserver access, event/history log (up to 1,000 events), Modbus interface, and building automation integration.
• Available in NFPA color code (English) or ISO color code (English/French) variants.
• Model variations based on number of valves (1-7), gas types (e.g., Oxygen, Nitrous Oxide, Medical Air), and sizes, customizable via modular ordering system.

Veterinary Applications

In veterinary practices and animal hospitals, the Z T Series Integra Med Touch Area Alarm/Zone Valve Box is essential for managing medical gas systems that support a wide range of animal health procedures. It is frequently utilized to monitor and control gases such as oxygen, medical air, nitrous oxide, and vacuum, ensuring stable pressures during anesthesia administration, surgical interventions, and intensive care for companion animals, exotic species, and livestock. By integrating alarm notifications with zone valve isolation, this equipment helps veterinary teams quickly address pressure deviations, preventing disruptions in multi-room facilities and maintaining compliance with animal health safety standards. Its customizable features, like programmable alerts and emergency instructions, empower veterinarians to tailor the system to specific needs, ultimately improving outcomes in critical care scenarios and enhancing overall operational efficiency in veterinary medicine.
