Description
Ultrasound Tables
Product Summary

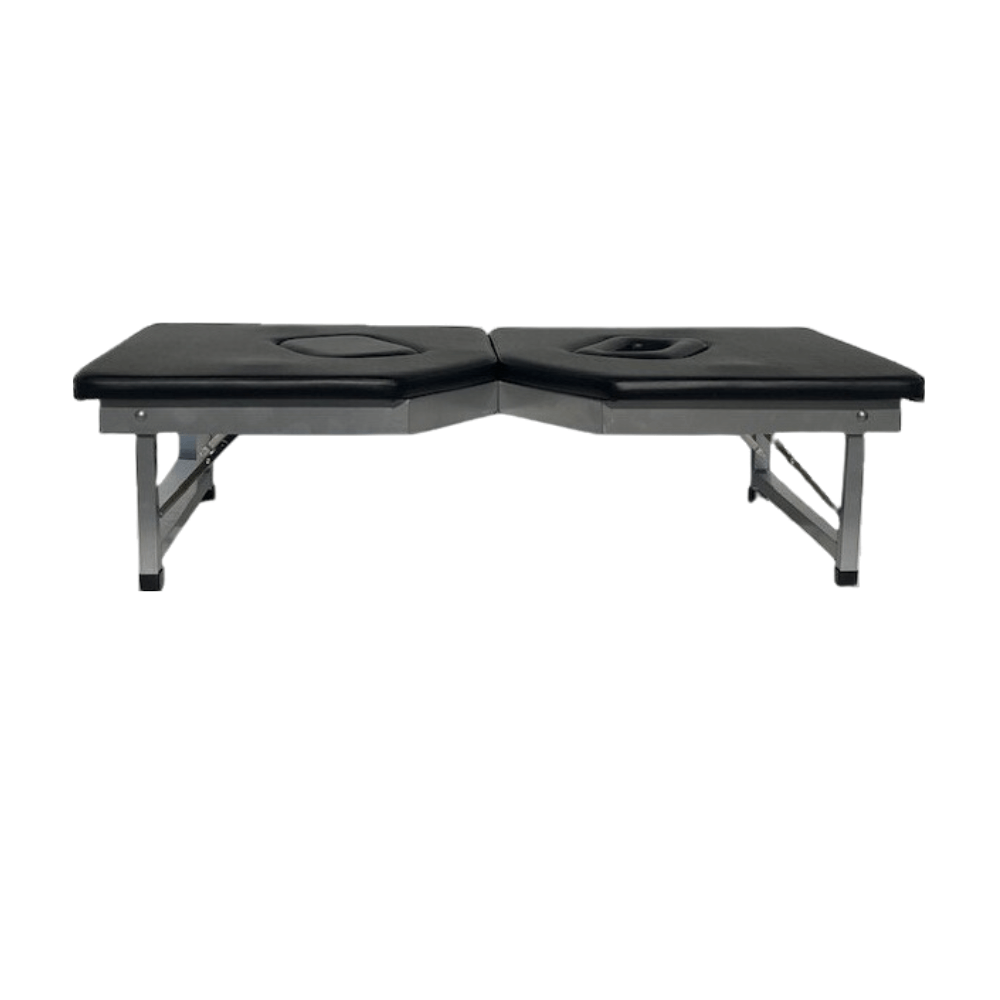

Portable tabletop ultrasound table with a comfortable padded top on a strong, lightweight aluminum frame. Straight or angled openings.
The Infinium UP500 pairs a comfortable padded top with a strong, lightweight aluminum frame. The padded work surface is about 24 inches by 48 inches (60.96 cm × 121.92 cm) and stands about 11 inches (27.94 cm) tall. The padded tabletop uses black marine vinyl over 1 inch (2.54 cm) foam on a ¾ inch (1.905 cm) plywood top. The table folds into a suitcase-style carrying configuration for transport between rooms or sites. The leg design allows use on a work surface as small as about 41 × 21 inches (104.14 × 53.34 cm).
Choose straight body pads (UP500-S) or angled cut-out pads (UP500-A). Table openings are 7 × 9 inches (17.78 × 22.86 cm) and ship with a reducer pad (3.5 × 5.5 inches / 8.89 × 13.97 cm) plus a solid filler pad so an unused opening stays a solid work surface. An optional removable head-rest extension adds about 8 inches of length for larger dogs; optional leg support is available with that path.
24″ × 48″
Padded work surface
~20 lb
Table weight
27×27×11 in
Ship dims
26 lb
Ship weight
Key Features
24″ × 48″ Padded work surface
Comfortable padded work surface over a strong, lightweight aluminum frame for companion-animal ultrasound exams.
Suitcase-style fold
Folds into a carrying configuration for moving the table between procedure rooms.
Straight or angled openings
Select straight body pads (UP500-S) or angled cut-out pads (UP500-A) to match your scan approach.
7″ × 9″ openings with pads
Openings include a reducer pad (3.5″ × 5.5″) and a solid filler pad so unused openings stay a solid work surface.
Lightweight portable build
About 20 lb table weight with a strong light-weight aluminum structure and padded tabletop.
Optional 8″ head-rest extension
Removable head-rest extension and leg support for larger dogs when extra length is needed.
Veterinary Applications
Use the UP500 for companion-animal ultrasound in clinics that need a portable tabletop surface rather than a fixed wet table: general practice imaging rooms, specialty ultrasound suites, and multi-room hospitals where the table moves with the caseload. Straight or angled openings support different probe approaches; the optional head-rest extension helps larger dogs that need extra length.
Available options
- Straight body pads (UP500-S)
- Angled cut-out pads (UP500-A)
Optional accessories
- Removable head-rest extension (adds about 8″ for larger dogs)
- Leg support for the head-rest extension path
