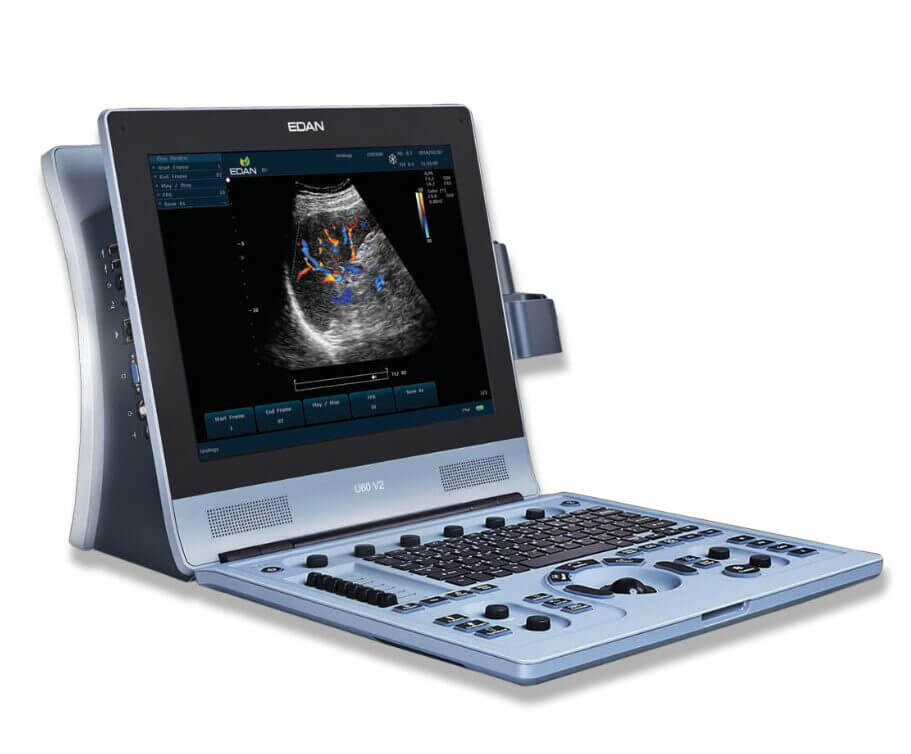

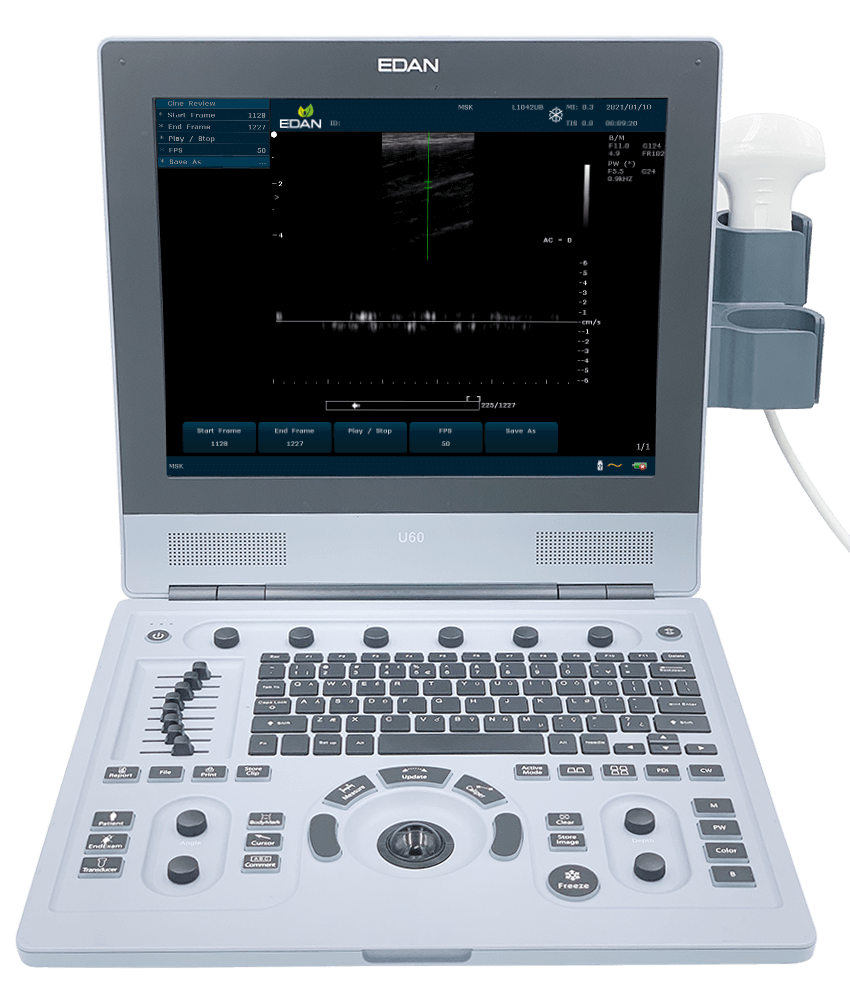

U60 Portable Laptop Veterinary Ultrasound

Technical Specifications

System Architecture

• Physical Channels: 64
• System dynamic range: 0-166dB
• Beam forming: Dual beam 2
• Memory: 504MB
• Hard drive: 500GB
• Operation System: Linux

Dimension and Weight

• Height: 35cm
• Width: 37cm
• Depth: 22cm
• Weight: < 8.5kg (without probe and battery)

Monitor

• 15 TFT-LCD monitor 15 TFT-LCD
• Resolution: 1024 x 768
• Imaging field size: 640*512
• Video out size: 800 * 600
• Capture size: BMP, JPG, AVI, DCM 1024 * 768; FRM, CIN 640 * 512
• View angle: Up 85, Down 85, Left 85, Right 85
• Brightness and Color Temp adjustable
• Angle adjustable: 0, 15, 3001530
• Built-in stereo speaker

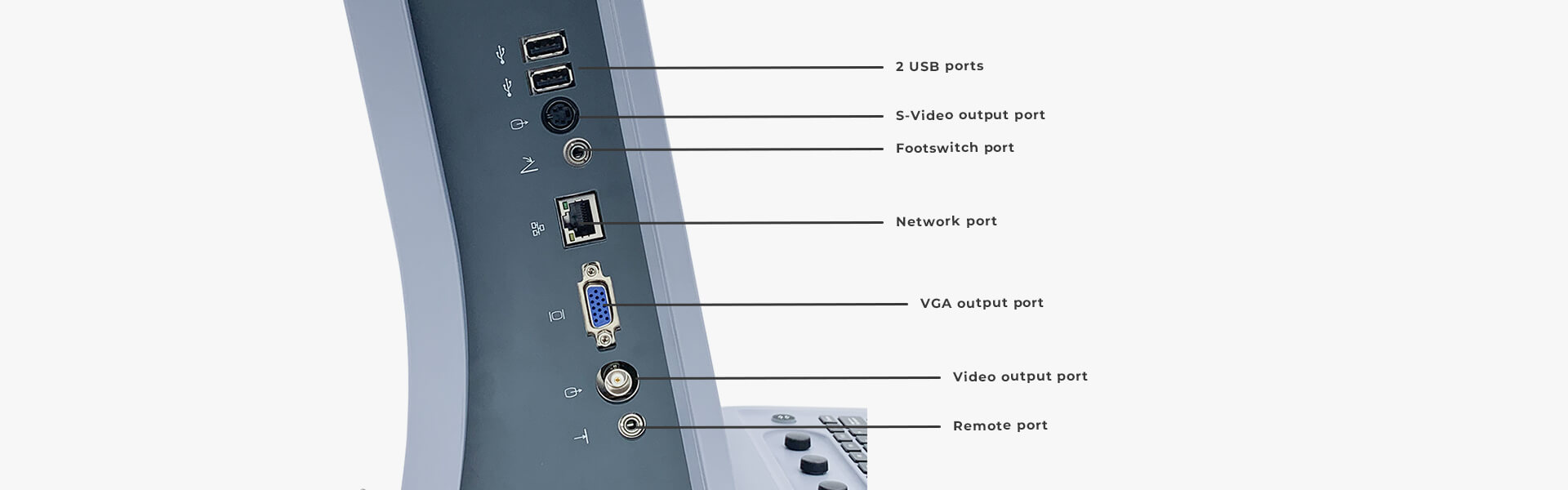

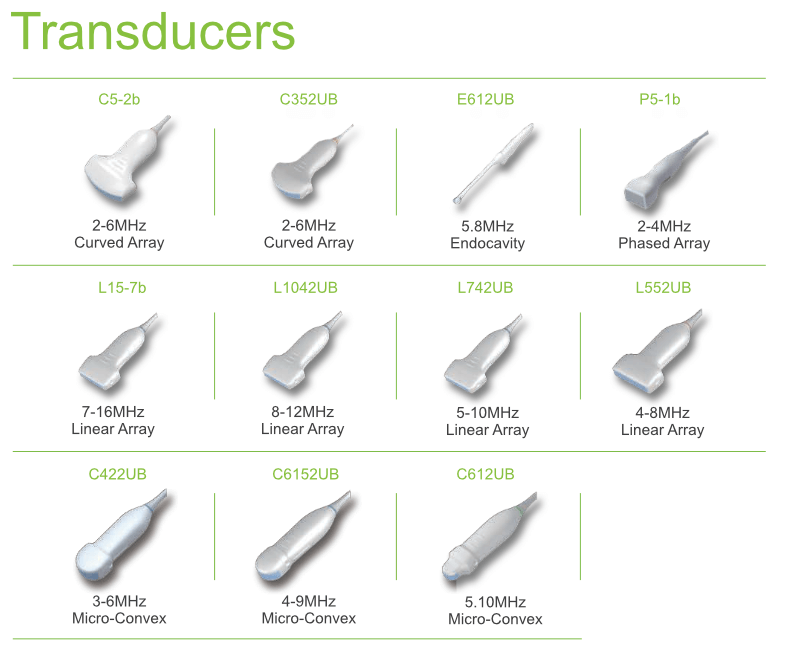

Transducer Port and Holder

• 2 active ports 2
• 2 holders 2

Electrical Power

• Voltage: 110V-240VAC
• Frequency: 50/60 Hz
• Power: 97.4w

Battery

• Rechargeable lithium-ion battery
• Capacity: 5000mAh
• Removable
• Approximately 80 minutes of typical ultrasound exam use
• Max charging time: 8 hours

Environmental Operating Requirements

• Ambient temperature: 0 to 40C
• Relative Humidity: 15%~95% (no condensation)
• Atmospheric pressure: 86kPa-106kPa

Environmental Storage Requirements

• Ambient temperature: -20 to 55C
• Relative Humidity: 15%~95% (no condensation)
• Atmospheric pressure: 70kPa-106kPa
