- High-Performance Portable Console System
- Variety of Veterinary Imaging Applications
- Precise Imaging at Various Depths
- Simplified Procedures from Advanced Technology
Advanced Capabilities
Imaging Technology: The system utilizes two different types of ultrasound, one for tissue and another for metal, aiding in distinguishing the needle during procedures, and enabling separate control of the needle appearance. The imaging engine, derived from GE Healthcare's flagship console systems, delivers crisp images in a compact package, catering to point-of-care-specific applications
Transducers: A wide range of transducers including a 1-5 MHz curved transducer for imaging deep structures, even in obese patients, and other transducers imaging up to 22 MHz for detailed superficial imaging
Portability: Compact design with battery operation for ease of movement between patients
User Interface: The system features a programmable "button probe" with four buttons that can be programmed to various functions such as depth, freeze, and save, thereby enhancing operational ease
Applications: Designed for general imaging, musculoskeletal, anesthesiology, interventional, emergency, and critical care applications
Security: Enhanced cybersecurity measures derived from the Windows® 10 operating platform, and an adhesive keyboard cover for protection against spills, sprays, and drops
Diagnostic Capabilities: High-Res PDI for visualizing flow in neovascularization, Easy3D for intuitive display of anatomical relationships, and PDI quantification to provide a numeric representation of blood flow associated with inflammation, tumors, and synovitis
Specialized Software: The system is designed to work with anesthesia-specific, musculoskeletal-specific, and rheumatology-specific software and transducers to address the varying needs of different medical specialties

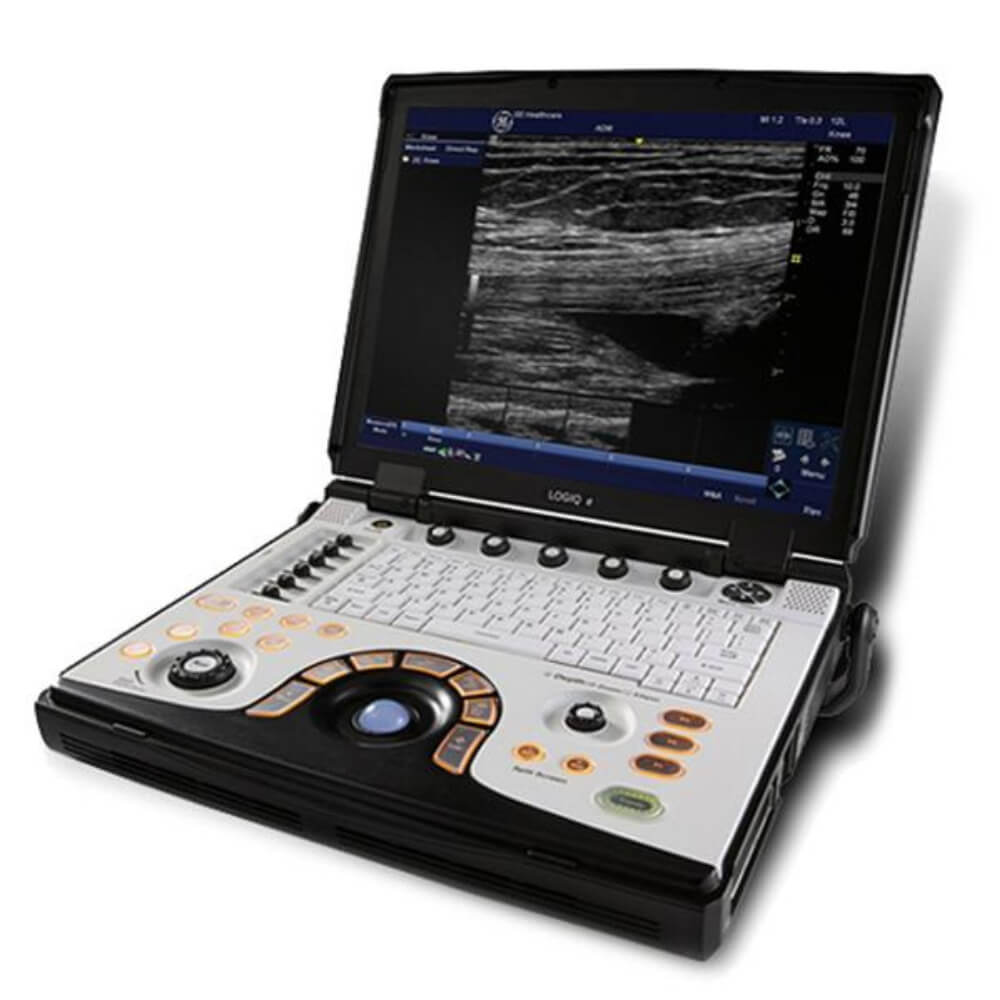

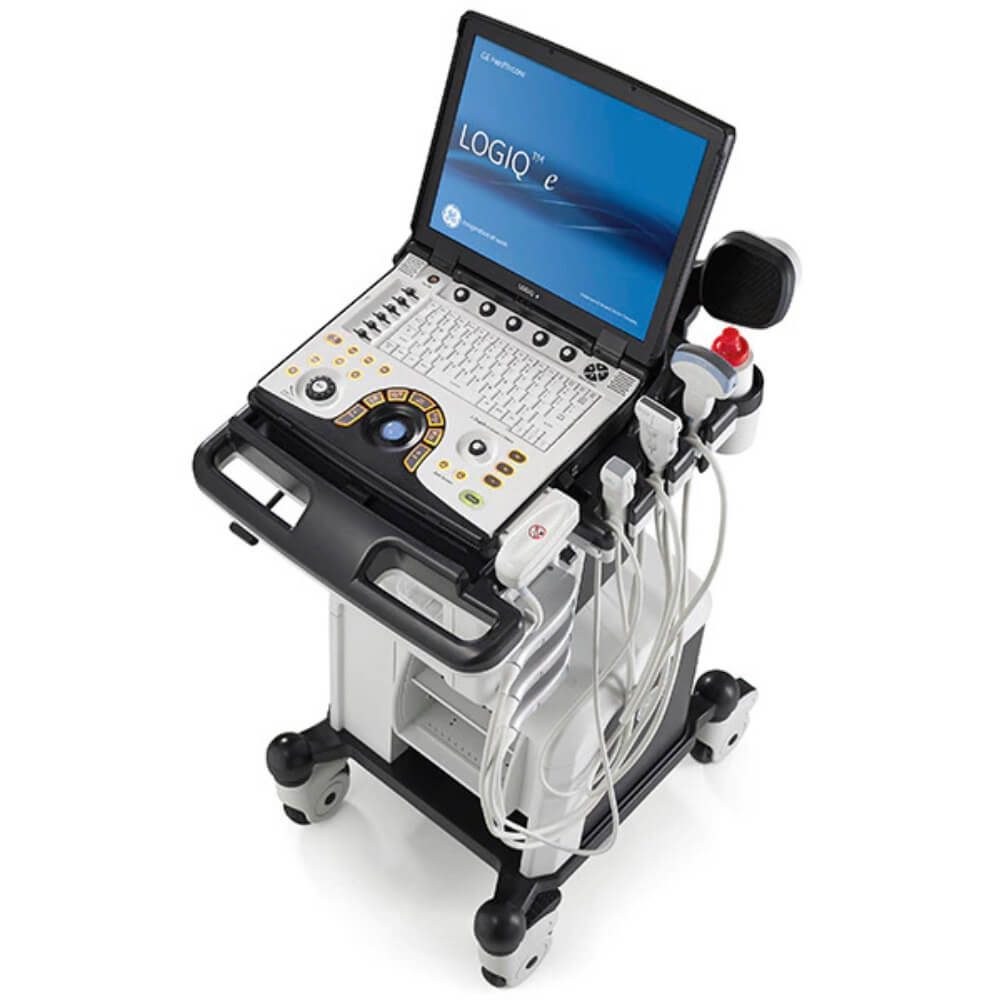

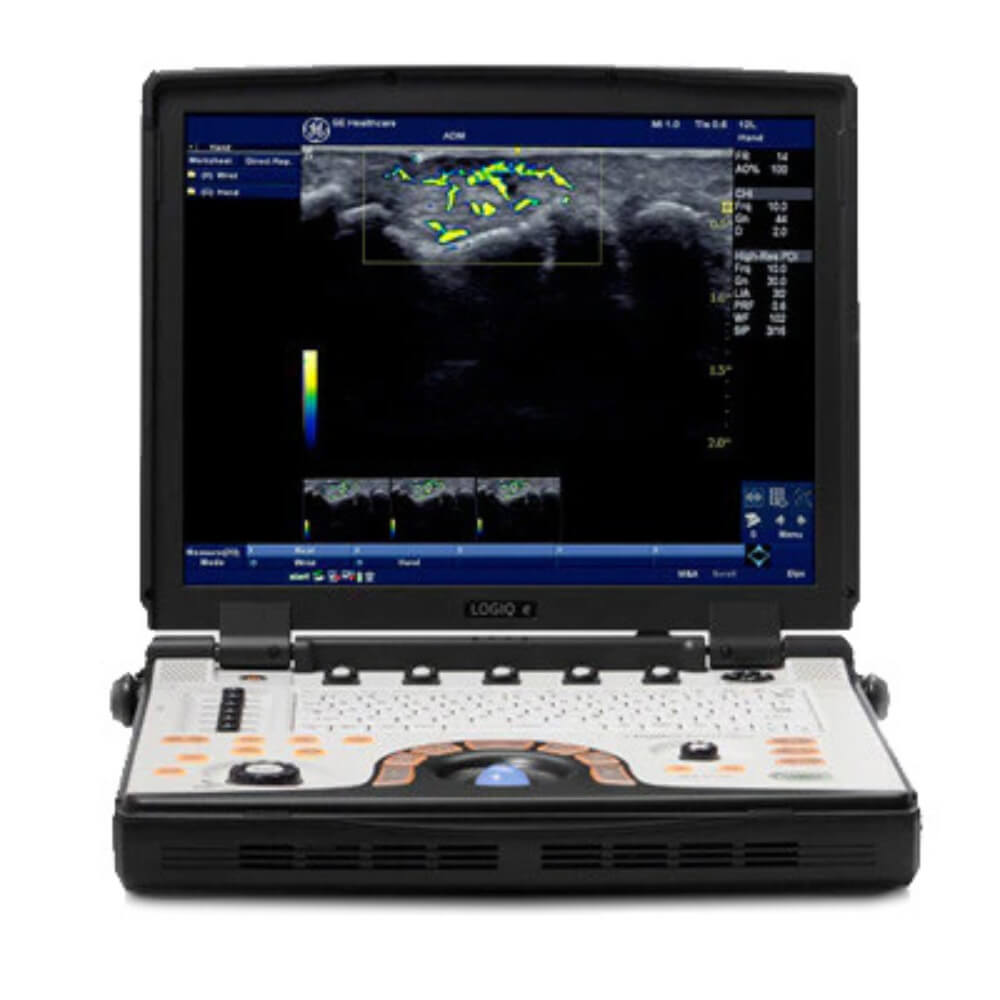

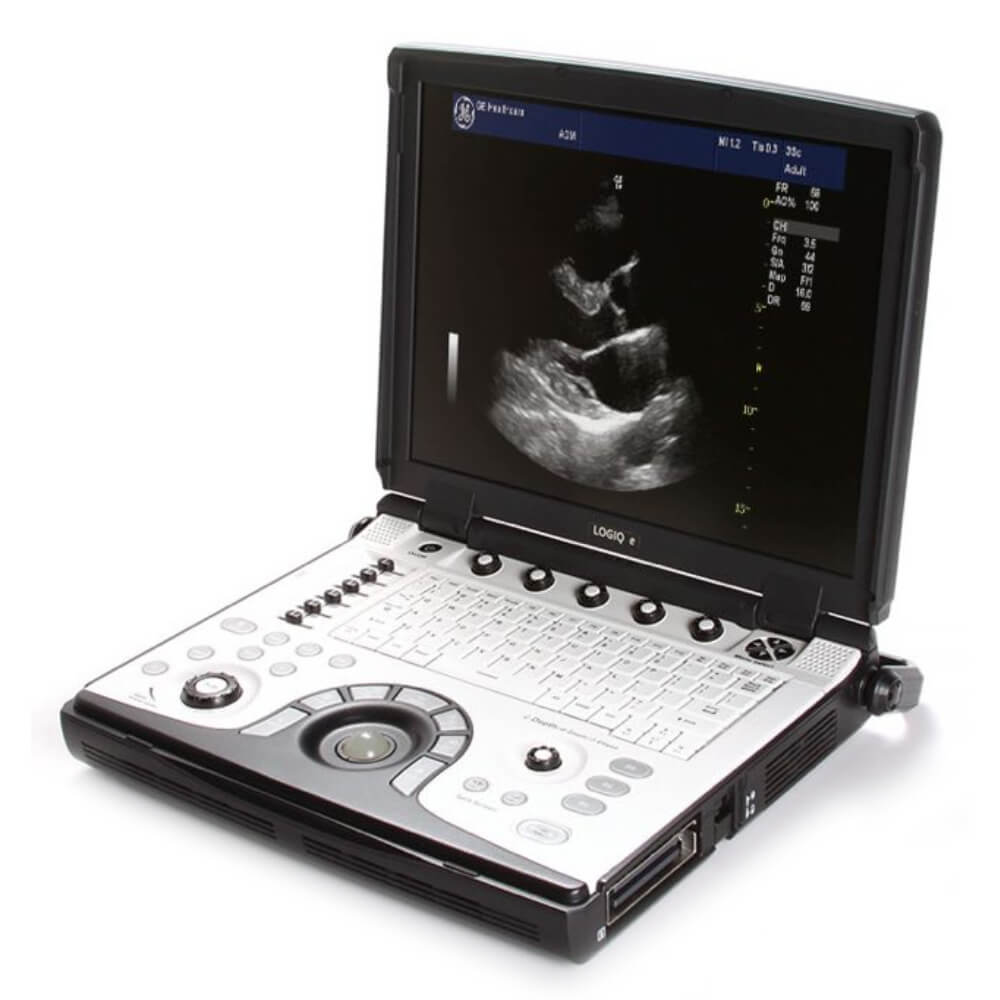

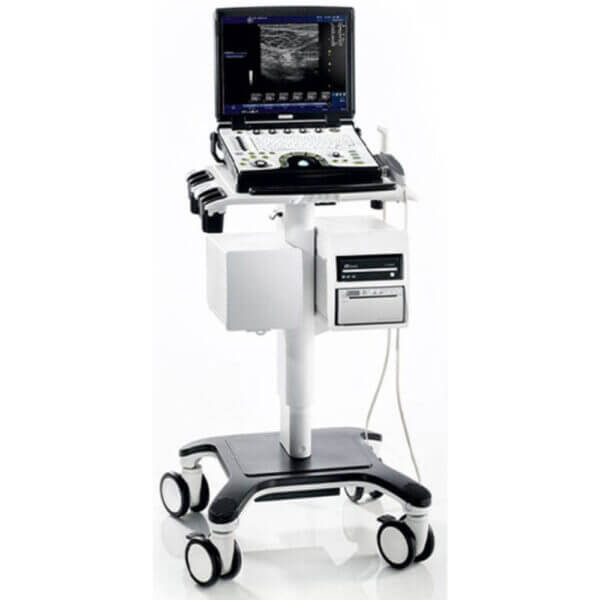

The GE NextGen LOGIQ e Ultrasound System embodies a blend of portability and high-performance imaging, making it a reliable choice for medical professionals in various specialties. Its user-friendly interface, coupled with advanced imaging technologies, aims to simplify and expedite diagnostic and interventional procedures, providing a dependable tool for point-of-care veterinary medicine.
