Acclarix AX Series Compact Veterinary Ultrasound System

Web ID:

22700

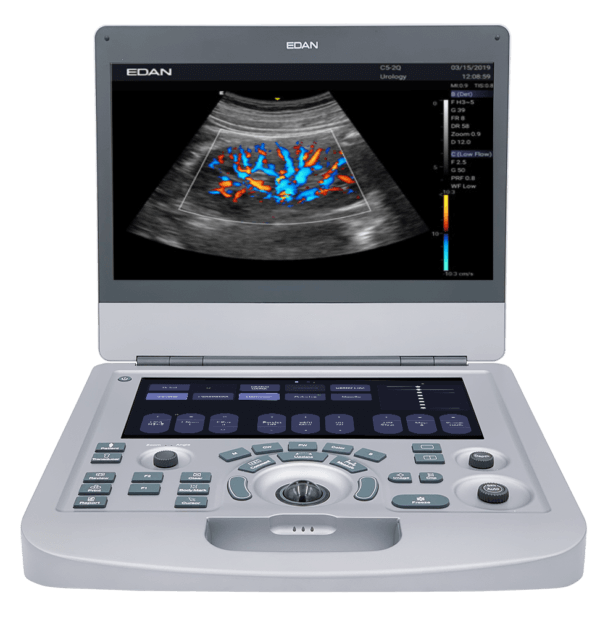

Acclarix AX Series Compact Veterinary Ultrasound System

The remarkable Acclarix AX2/AX3 series Veterinary Compact Ultrasound System delivers a powerhouse combination of features to meet the demands of point-of-care and general imaging applications.  The Acclarix AX2/AX3 series has been designed from the ground up with a relentless focus on delivering unexpected levels of innovation and performance at an equally surprising price point.

Description

The remarkable Acclarix AX2/AX3 series Veterinary Compact Ultrasound System delivers a powerhouse combination of features to meet the demands of point-of-care and general imaging applications.  This series has been designed from the ground up with a relentless focus on delivering unexpected levels of innovation and performance at an equally surprising price point. One active transducer port design enables switching transducer seamlessly at a fingertip Dual batteries extend the imaging scanning. Extremely light body embodied with brand new EIS operating system empowers smooth system operation and fast system response.

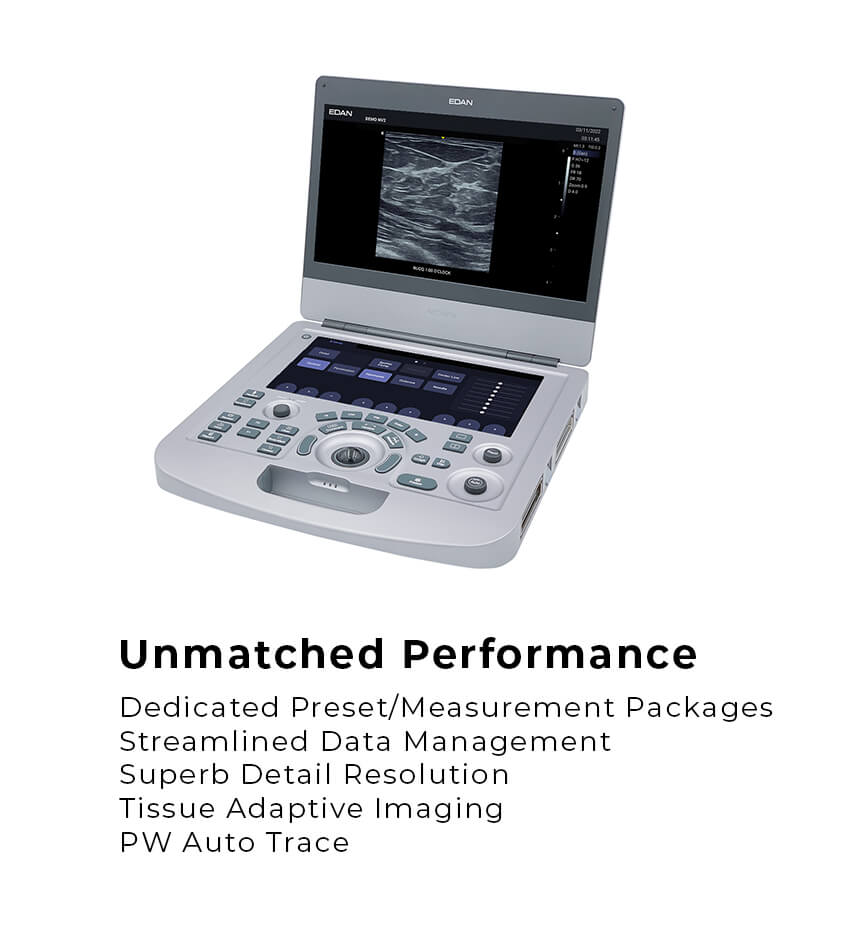

Advanced Technique & Features

  • TAI Tissue Adaptive Imaging
  • eSRI Adaptive Speckle Reduction Imaging
  • Frequency Compounding Imaging
  • Adaptive Spatial Compounding Imaging
  • Harmonic Imaging
  • B mode Auto Optimization
  • Digital Multi-Beam forming
  • Trapezoid Imaging
  • Adaptive Doppler imaging
  • Spectrum Enhancement
  • B Steer
  • Digital Zoom
  • Auto Doppler trace
  • 1 and 2 Transducer Port Options

Technical Specifications

System Architecture

  • Physical Channels: 64
  • Beam Forming: Quad beam
  • Processor: ARM
  • Memory: 2 GB
  • Hard Drive: 120G SSD
  • Operating System: Android
  • System Boot-up: About 30s
  • Boot-up from sleep: 5s
  • Shutdown: 3s

Dimensions & Weight

  • Dimension: 375 mm×380 mm×58 mm
  • Net Weight (No Battery): 4.2kg (1 transducer port)
  • Net Weight (1 battery): 4.65 kg (1 transducer port)

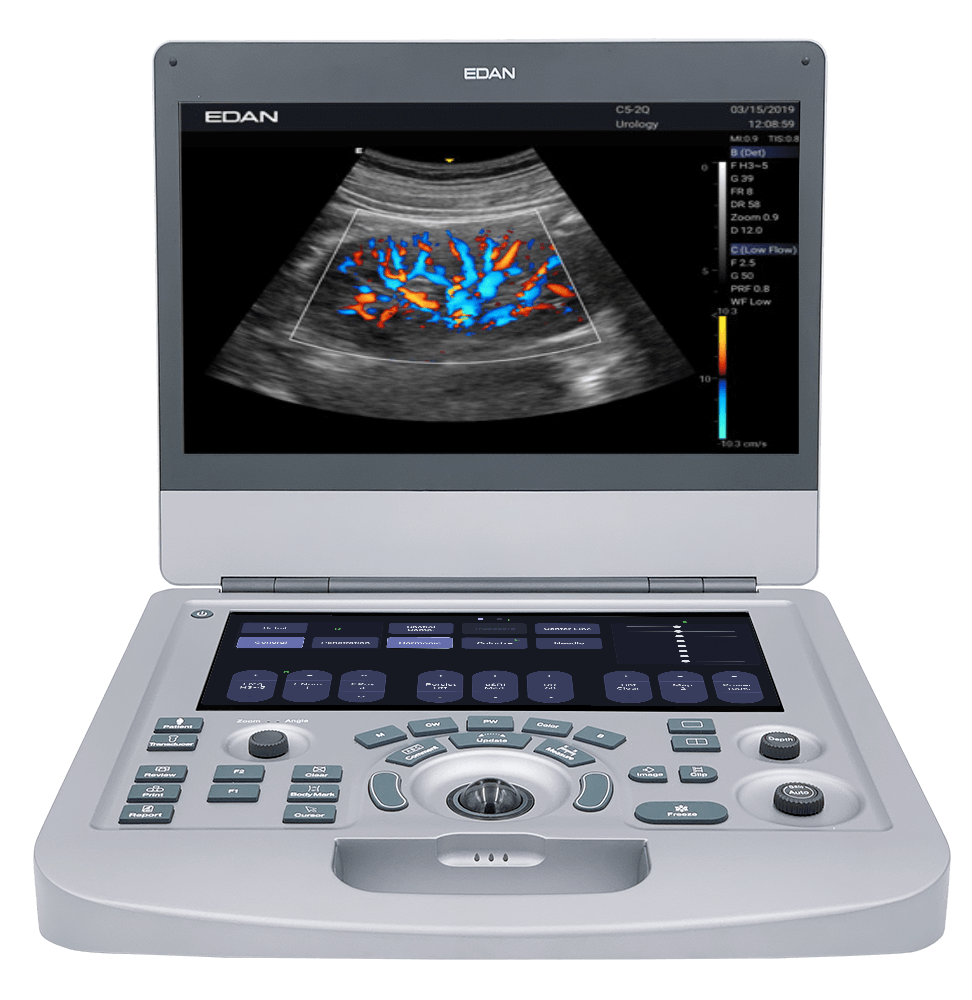

Monitor Specs

  • 15.6’’ high resolution LCD monitor
  • Resolution: 1920 x 1080
  • Image Size: 1040 780
  • Open angle: 0° – 180°
  • Magnetic latch closure
  • Built-in stereo speaker
  • Brightness and Contrast adjustable

Control Panel Touch Screen

  • 10.1” Touch screen
  • Gesture-control
  • Virtual TGC sliders
  • Support QWERTY keyboard for text input
  • Brightness adjustable

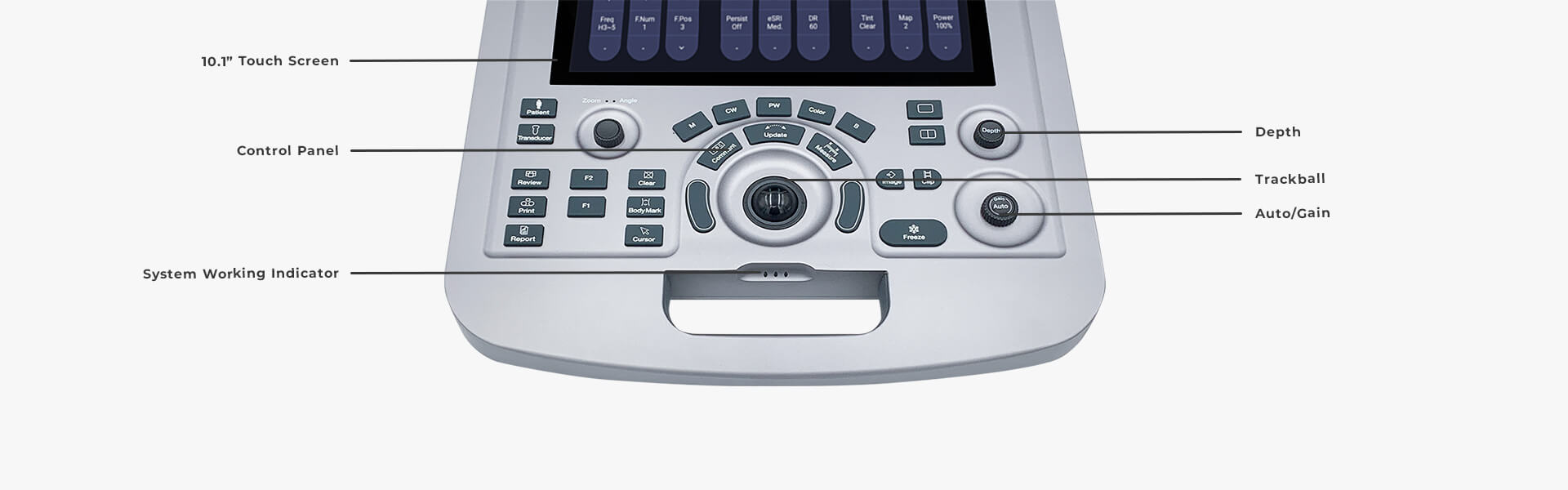

Control Panel Keyboard

  • Interactive back-lighting
  • Hard Keys provides tactile feedback
  • User-defined keys

Transducer Port

  • One active transducer port
  • Single transducer port configurable

Battery

  • Rechargeable
  • Max. two batteries configurable
  • 5000mAh capacity for each battery
  • Removable
  • Approximately 1 hour of typical ultrasound
    exam use for one fully charged battery.
  • Approximately 2 hours of typical ultrasound
    exam use for two fully charged batteries.
  • Standby time: > 4 hours (two batteries)
  • One battery fully charged in about 2.5 hours
  • Two batteries fully charged in about 5 hours
  • Battery indicator on the console near the handle
  • Battery level icon displayed on the main screen

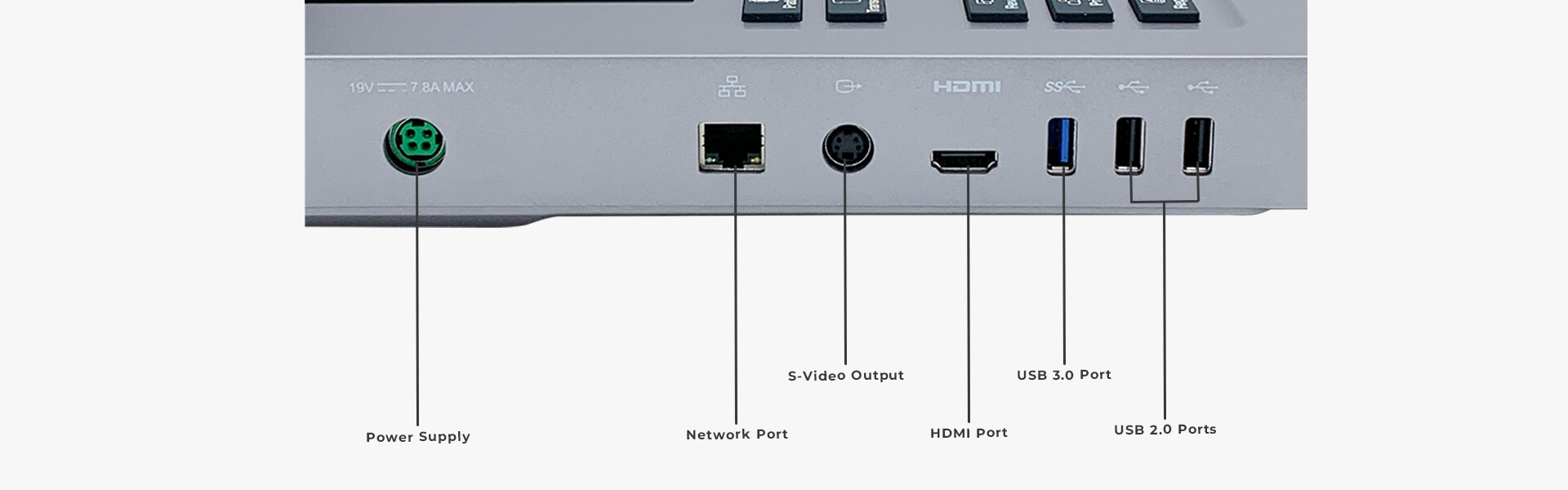

I/O Ports

  • S-Video
  • USB 3.0
  • HDMI
  • Ethernet

AC Power Requirements

  • Voltage: 100-240 V~
  • Frequency: 50Hz/60 Hz

Optional Accessories

  • Transducers
  • Needle Guide Bracket Kits
  • Printers
  • Battery
  • USB Disk
  • WiFi
  • Footswitch
    – Single button/Double buttons
    – User-defined Functions (Freeze, Save, Print)
  • Simple Cart: MT-808
    – Height Variable
    – A drawer for glossary storage
    – A shelf for Video printer
    – 4 transducer holders and 2 gel holders with removable silicon cover
    – Cable manager
    – Drawer height and position adjustable
  • Suitcase

Transducer Options

Acclarix AX Series Transducer Options



Acclarix AX Series Transducer Options



Acclarix AX Series Transducer Specifications



Acclarix AX Series Transducer Specifications

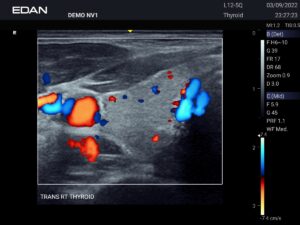

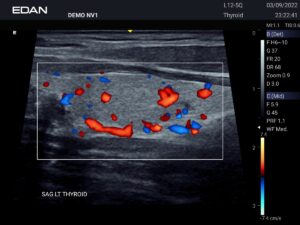

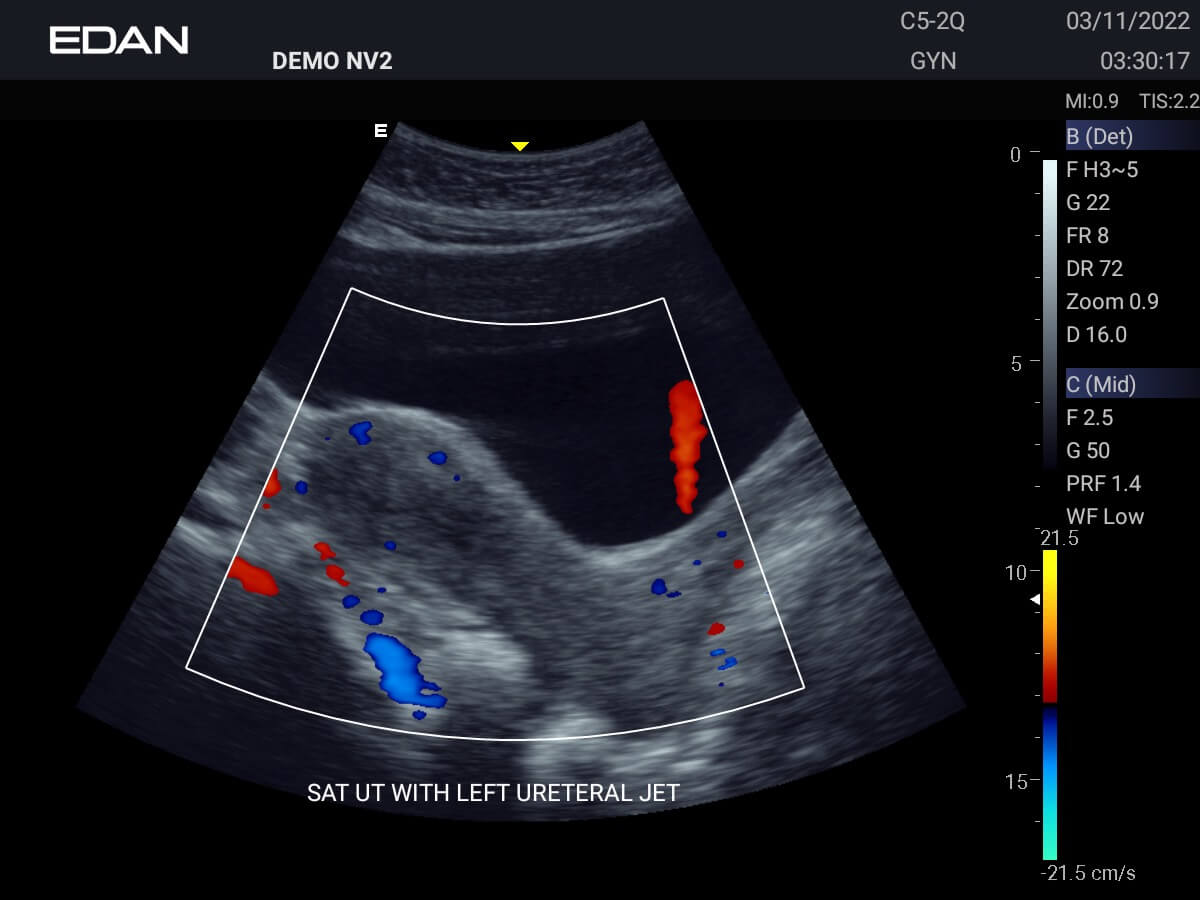

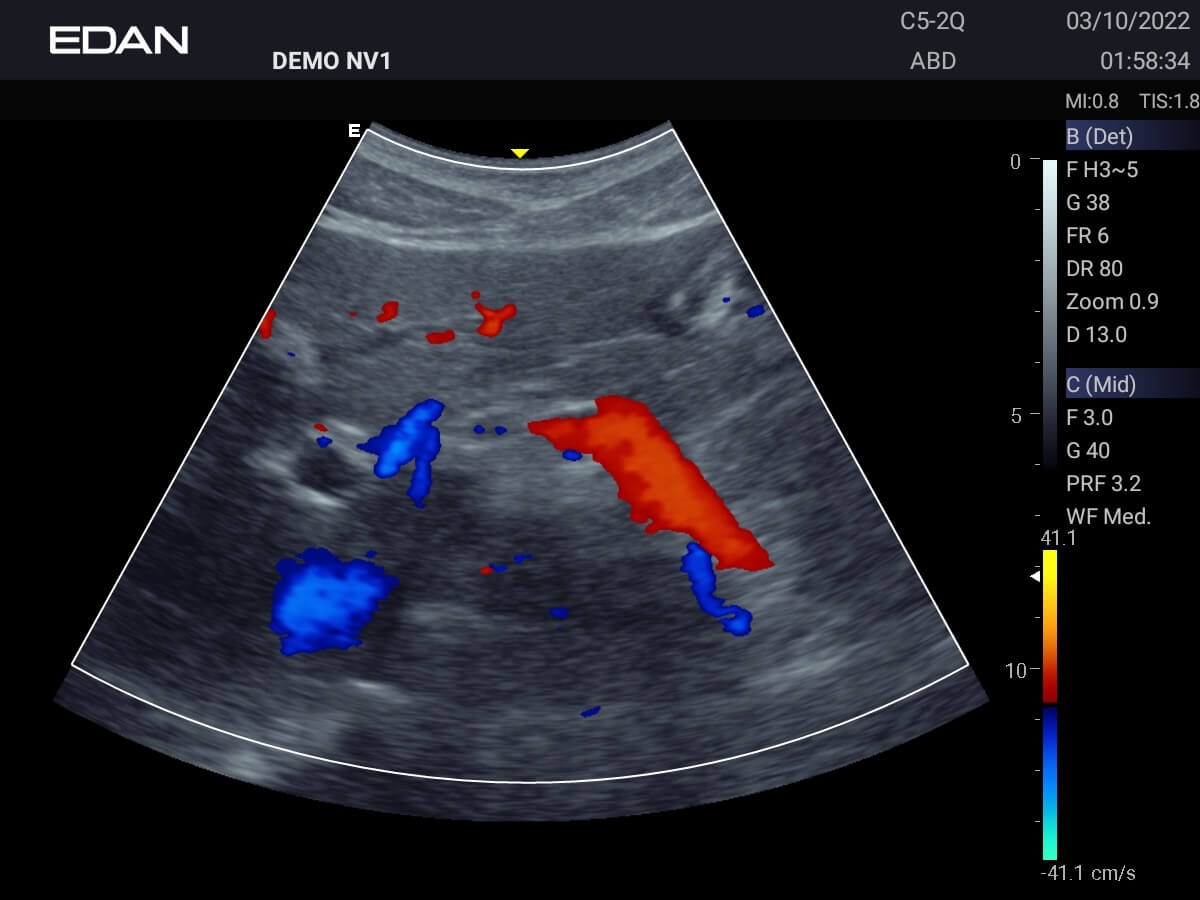

Screen & Image Output
