Triumph IP12 Veterinary Syringe Pump

Web ID:

25250

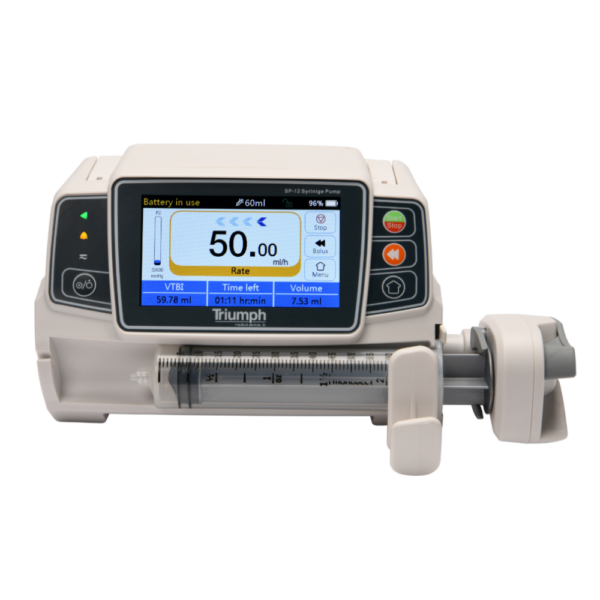

Triumph IP12 Veterinary Syringe Pump

The Triumph SP12 Veterinary Syringe Pump is well designed to deliver unparalleled precision, safety, and versatility for veterinary fluid therapy and medication administration. The SP12 is tailored for veterinary professionals, offering a compact, reliable, and user-friendly device ideal for both clinic and field applications. Featuring a large 4.3-inch water-resistant color touchscreen, the SP12 provides an intuitive interface for seamless operation, making it easy to set and monitor infusion parameters.

Description

Product Description: Triumph SP12 Veterinary Syringe Pump
The Triumph SP12 Veterinary Syringe Pump is a state-of-the-art solution designed to deliver unparalleled precision, safety, and versatility for veterinary fluid therapy and medication administration.

Engineered by Triumph Medical Services, the SP12 is tailored for veterinary professionals, offering a compact, reliable, and user-friendly device ideal for both clinic and field applications.


Featuring a large 4.3-inch water-resistant color touchscreen, the SP12 provides an intuitive interface for seamless operation, making it easy to set and monitor infusion parameters.
Built for precision, the SP12 supports a wide range of syringe sizes (3, 5/6, 10/12, 20, 30/35, 60 ml) with automatic recognition and compatibility with leading brands such as Monoject, BD, Terumo, VetOne, Covetrus, Pivetal, Ecomed, Exel, and Nipro. It offers multiple operating modes—Rate Mode, Time Mode, Body-Weight Mode, and Drug Library Mode—ensuring flexibility for diverse therapeutic needs.

Enhanced safety features, including full-screen color-coded alarms, pressure sensors, and a customizable drug library with password protection, provide real-time monitoring and safeguard patient care.

The SP12’s dual-battery system delivers over 9 hours of continuous operation, making it ideal for extended use without frequent recharging. Its lightweight design (3.086 lbs), folding carry handle, and stackable structure enhance portability and space efficiency.

With an IP34 rating for protection against splashes and solid objects, the Triumph SP12 is a durable, high-performance tool that empowers veterinary professionals to administer fluids and medications with confidence and accuracy.

Video Tutorial Library

Playlist

5 Videos

Technical Specifications

  • Display: 4.3-inch water-resistant color touchscreen
  • Weight: 3.086 lbs (1.4 kg)
  • Power Supply:
    • AC Power: 100-240V, 50/60Hz
    • DC Power: 12V
    • Battery: Dual 7.4V, 2500mAh rechargeable batteries
    • Battery Life: Over 9 hours at 25 ml/h flow rate (fully charged, 25°C environment)
    • Charging Time: Approximately 5 hours (in OFF state)
  • Flow Rate: 0.1–1500 ml/h (increments of 0.01 ml/h)
  • Volume to Be Infused (VTBI): 0–9999.99 ml
  • Infusion Modes:
    • Rate Mode
    • Time Mode
    • Body-Weight Mode
    • Drug Library Mode
    • Drip Mode
  • Preloaded IV Sets: 14 brands, including Baxter, ICU Medical, VetOne A and B Series, Covetrus A and B Series, Mvet A and B Series, Zoetis A and B Series, Pivetal A and B Series, Ecomed B Series
  • Safety Features:
    • Full-screen color-coded alarms for low battery, air-in-line, high pressure, VTBI completion, and more
    • Anti-free-flow clamp
    • Upstream and downstream pressure sensors
    • Air-in-line sensor
    • Fully customizable drug library with password protection
  • Safety Standards:
    • IEC 60601-1:2005+A1:2012
    • IEC 60601-2-24:2012
    • IEC 60601-1-8:2006+A:2012
    • EN 60601-1-2:2007+AC:2010
  • Ingress Protection: IP34 (protection against solid objects >2.5mm and water splashes from all directions)
  • Alarm Sound Level: ≥50 dB(A) at the lowest setting
  • Operating Conditions:
    • Temperature: 5°C to 40°C
    • Humidity: 15% to 95% (non-condensing)
  • Additional Features:
    • Folding carry handle for easy transport
    • Stackable design for space efficiency
    • Pole/cage clamp for vertical or horizontal mounting
    • Manual and programmed bolus functions
    • Purge function for line priming
