Description
Autoclaves and Sterilizers

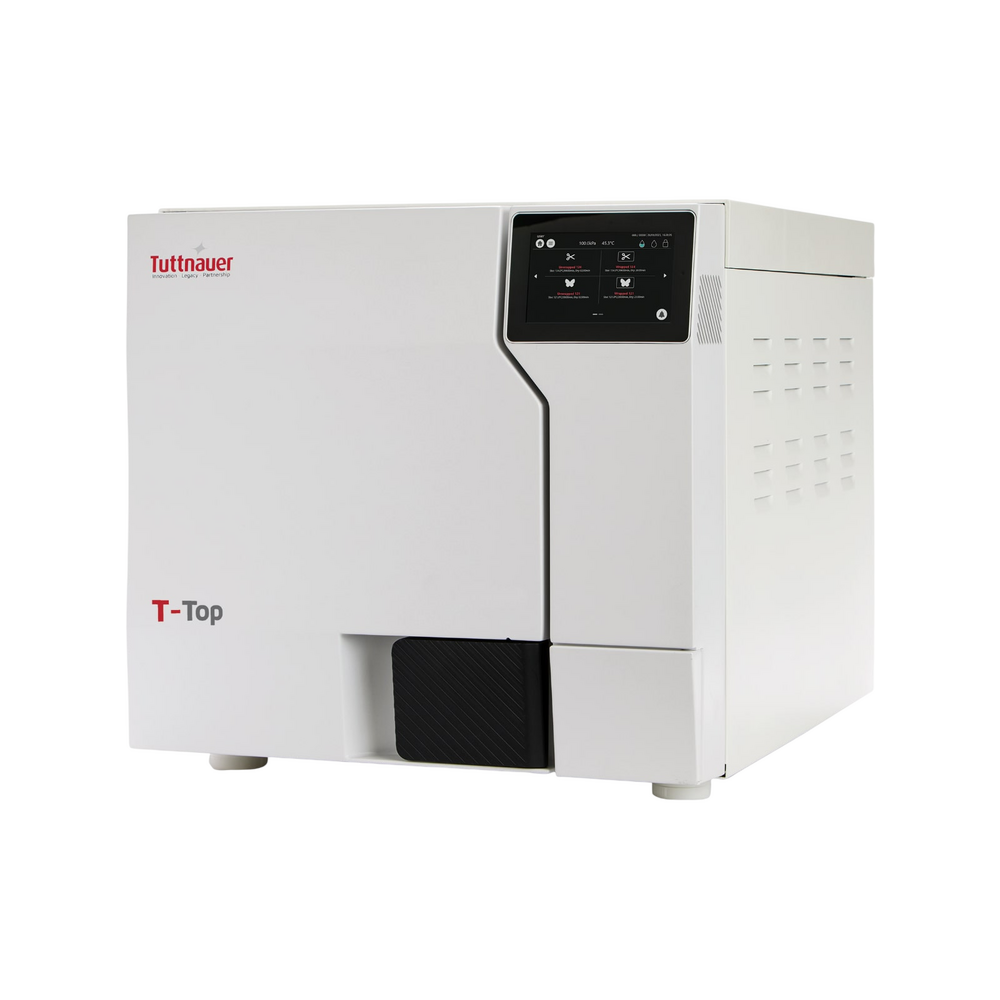

T-Top Vet Autoclaves
Infinium Veterinary offers the T-Top Vet Autoclaves for the sterilization demands of modern veterinary practices.
21L / 27L
Chamber Capacity
273°F
Cycle Temperature
15 min
Fast Unwrapped Cycle
Class S / B
Cycle Programs
Overview
These autoclaves deliver consistent sterilization cycles for instrument hygiene that supports animal health. With easy-to-use features and solid construction, they support workflow in clinics and hospitals.
Key Benefit: Dependable sterilization for safer veterinary procedures, designed specifically for small to medium veterinary clinics to increase productivity and manage daily workloads affordably.
Key Features
Upgradable Design
Easily upgrade to pre/post vacuum (Class B) for demanding sterilization needs in animal health settings.
Separate Water Reservoirs
Dedicated reservoirs for clean and used water keep clean water in every cycle and minimize contamination risks in veterinary environments. T-Top 11 includes an automatic drain and fill kit.
T-Connect Integration
Remote diagnostics via cloud-based IoT for monitoring in busy clinics.
Large Chamber Capacity

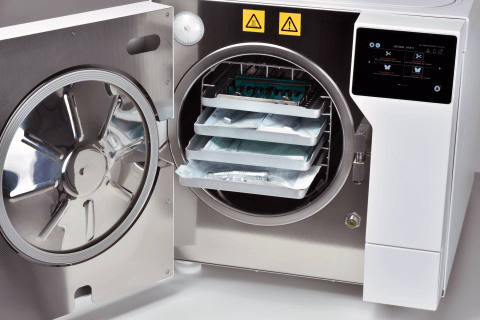

21L and 27L options accommodate various instrument loads for animal care procedures.
Touchscreen Interface
Modern interface simplifies operation, reducing training time for veterinary staff.
Plug and Play Installation
Requires only a power source, suited to space-constrained veterinary practices, for quick setup and minimal downtime.
Features & Benefits
- Time Saver Settings: Schedule test and sterilization cycles to start automatically, simplifying daily workflows in animal health facilities.
- Compact Footprint: Fits easily on countertops, preserving valuable space while sterilizing veterinary tools.

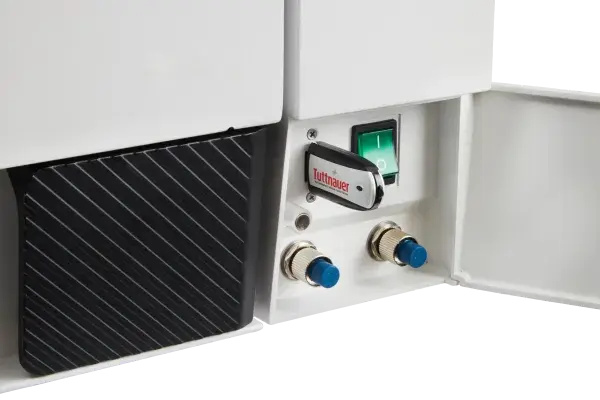

- Traceability Options: Includes Wi-Fi, Ethernet, USB, and T-Connect for cycle tracking, supporting compliance in veterinary medicine.
- Safety Compliance: Meets international standards like CE MDR and IEC, supporting dependable operation for animal health professionals.
Sterilization Cycle Programs
The T-Top Vet Autoclaves offer a range of sterilization cycles for veterinary needs. Cycle S provides non-vacuum sterilization, while Cycle B (available via upgrade) delivers pre/post-vacuum performance for thorough instrument processing.
Cycle S Programs (Class S, Non-Vacuum)
| Cycle Name | Temperature | Exposure Time | Total Cycle Time | Load Type |
|---|---|---|---|---|
| Fast Unwrapped | 273°F (134°C) | 3 min | 15 min | Unwrapped instruments |
| Standard Unwrapped | 273°F (134°C) | 3 min | 20 min | Unwrapped instruments |
| Wrapped | 273°F (134°C) | 4 min | 30-35 min | Wrapped instruments, pouches |
| Heavy Duty | 273°F (134°C) | 10 min | 45-50 min | Heavy loads, textiles |
Cycle B Programs (Class B, Pre/Post Vacuum, Upgrade Required)
| Cycle Name | Temperature | Exposure Time | Total Cycle Time | Load Type |
|---|---|---|---|---|
| Unwrapped | 273°F (134°C) | 3 min | 18-22 min | Unwrapped instruments |
| Wrapped Instruments | 273°F (134°C) | 4 min | 30-35 min | Wrapped instruments |
| Porous Loads | 273°F (134°C) | 3.5 min | 35-40 min | Textiles, gowns |
| Bowie & Dick Test | 273°F (134°C) | N/A | 15 min | Air removal test |
Model Variations
| Model | Chamber Size | Volume | Dimensions | Water Filling |
|---|---|---|---|---|
| T-Top 10 | 10" (Ø) x 18" (D) | 5.5 Gal (21 Liters) | 23" (D) x 18.1" (W) x 18" (H) | Manual |
| T-Top 11 | 11" (Ø) x 18" (D) | 7 Gal (27 Liters) | 23" (D) x 19.5" (W) x 17.5" (H) | Manual and Automatic |
Veterinary Applications
In veterinary practices, the T-Top Vet Autoclaves sterilize surgical instruments for procedures like spaying, neutering, and dental work, supporting infection control and animal health safety. Their cycles support high-volume clinics, reducing turnaround times for tools used in emergency animal care and routine examinations. Offering universal capacity in an affordable solution, they meet the everyday sterilization needs of standard practices.
