Tuttnauer 3870EA Large Automatic Autoclave

Web ID:

23179

Tuttnauer 3870EA Large Automatic Autoclave

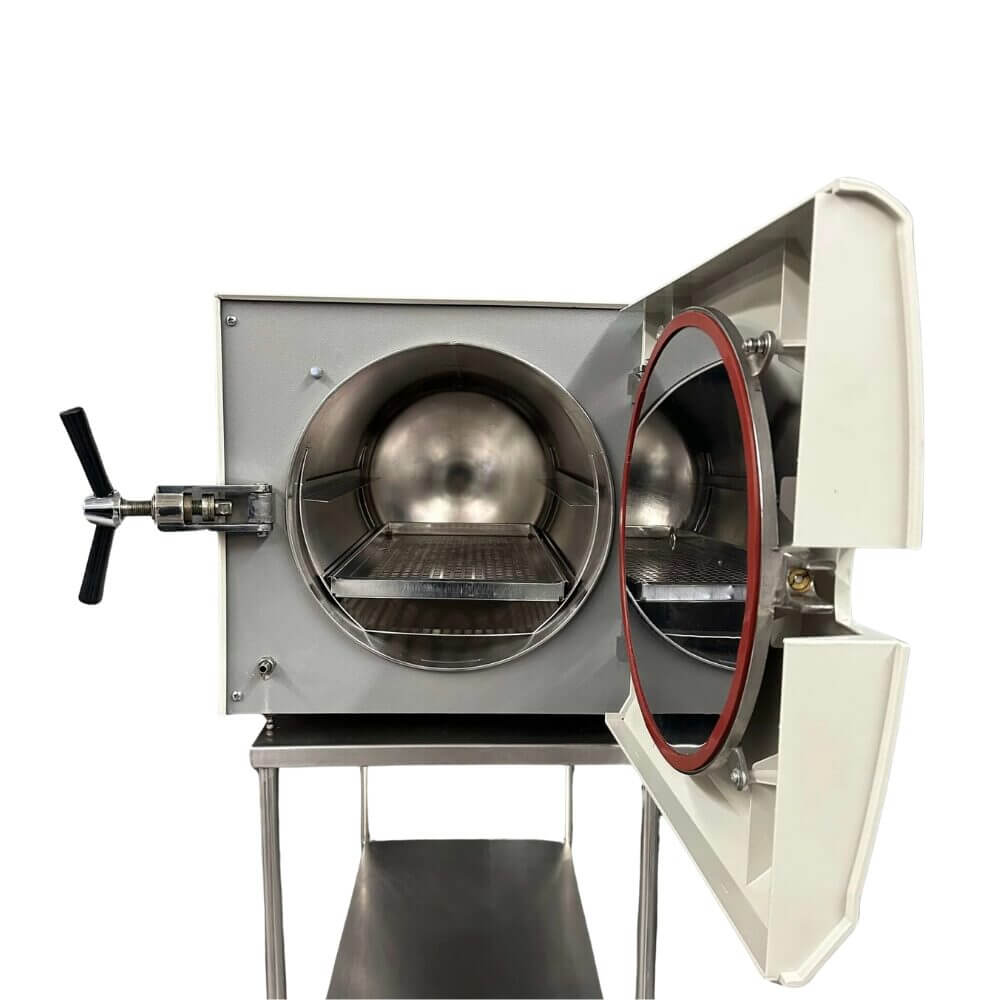

The Tuttnauer 3870EA fully automatic autoclave is Tuttnauer’s largest automatic table top autoclave.  Features a closed door active drying system.  Perfect for multi-doctor practices, clinics or surgery centers. 15″x 30″ chamber accommodates longer instruments or a large number of small instruments.  Capacity for 15 full size IMS cassettes. Ideal for veterinary hospitals, animal health practices, biotechnology industries, life sciences and a favorite among veterinarians.

Description

The Tuttnauer 3870EA fully automatic autoclave is Tuttnauer’s largest automatic table top autoclave.  Features a closed door active drying system.  Perfect for multi-doctor practices, clinics or surgery centers. 15″x 30″ chamber accommodates longer instruments or a large number of small instruments. Capacity for 15 full size IMS cassettes. Ideal for veterinary hospitals, animal health practices, biotechnology industries, life sciences and a favorite among veterinarians.

Features:

  • Closed door active drying system to maintain sterility and ensure efficient drying of packs and pouches.
  • Hepa filter 0.2 µm air filter (replaceable).
  • Rapid cycles optimize the availability of ready-to-use sterile instruments

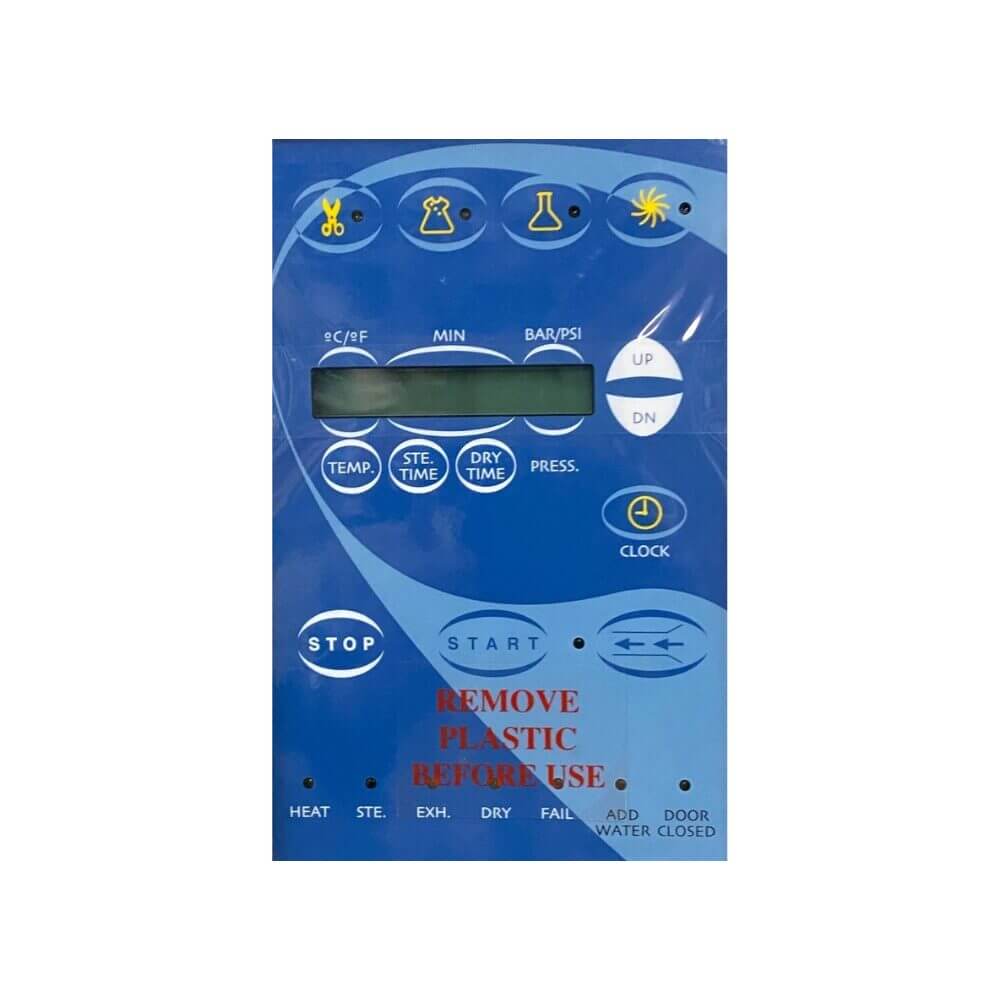

  • Easy-to-use, single touch control system increases productivity
  • 3 Pre-set sterilization programs
  • Program and customize cycle parameters to suit your needs and maximize flexibility
  • Integrated printer for cycle documentation (optional)
  • Interdependent temperature and pressure monitoring
  • Cycle information recovery in the case of power failure or cycle interruption
  • Insufficient water detector with automatic shut-off
  • Supplied with a 3 shelf stand that measures 26 inches wide x 33 inches deep x 34 inches high

Technical Specifications

  • Chamber Size: 15″ x 30″
  • Volume: 22 gal (85 L)
  • Dimensions (L x W x H): 34.5″ x 26″ x 20.6″
  • Standard Cassette Capacity: 15 Full
  • Trays: 2
  • Tray Size (L x W x H): Small: 26.6″ x 11.3″ x 1″ Large: 26.6″ x 13.8″ x 1″
  • Standard Unwrapped Cycle Time: Cold: 32 Min. Hot: 23 Min.
  • Voltage: 230V
  • Frequency: 50/60
  • Power: 3000W
  • Current: 13.6A
  • Shipping Weight: 213
Sterilization Type Temp Time Dry Time
Unwrapped Instruments & materials 273° F 3 min 0
Wrapped Instruments & porous load 273° F 7 min 30 min
Glassware 250° F 30 min slow exhaust:
15-20 min
Drying (continues the heat assisted drying process) accessory for extra drying if needed
