Description

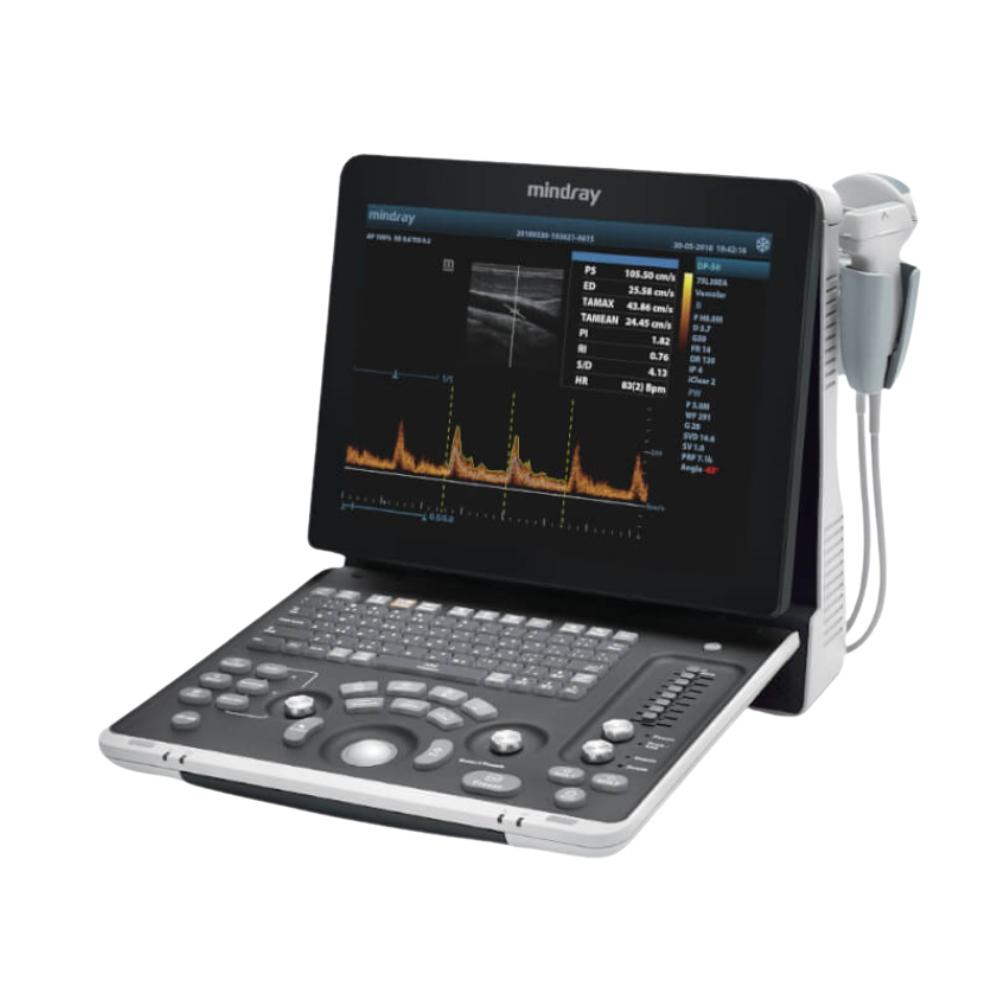

The Mindray DP-50 Expert is a cutting-edge, portable ultrasound system engineered for exceptional imaging performance in a sleek, compact design. Perfect for private offices, clinics, and mobile diagnostic needs, it combines high-speed processing with advanced imaging technologies to deliver crystal-clear visuals across a broad spectrum of applications, including abdominal, OB/GYN, urology, small parts, vascular, pediatrics, orthopedics, emergency, and interventional procedures. With intuitive workflow tools like one-touch optimization and automated protocols, it enhances efficiency, reduces exam times, and supports confident diagnoses while ensuring seamless patient data management and connectivity. Its lightweight build and long battery life make it an ideal choice for on-the-go professionals seeking reliability without compromising on quality.
Additional Features
- Auto Intima-Media Thickness (Auto IMT) for carotid measurements
- iWorks™ Protocol for standardized workflows
- Quick Save for one-click image transfer
- iStation™ for patient information management and onboard reporting
Clinical Applications
- Abdomen, Urology, OB/GYN, Small Parts, Emergency, Orthopedics, Endocavity, Interventional Medicine, Vascular, Pediatrics, MSK, Prostate, Cardiology
Technical Specifications
Product Technical SpecificationsGeneral Specifications
- Dimensions: 147 mm (W) × 361 mm (D) × 358 mm (H)
- Weight: 8.1 kg (excluding battery and accessories)
- Monitor: 15-inch high-resolution LCD (1024 × 768 pixels), with 60-degree tilt adjustment and full-screen design
- Battery: Rechargeable lithium-ion battery, providing up to 1.5 hours (90 minutes) of continuous scanning
- Power Supply: AC 100-240 V, 50/60 Hz
- Transducer Connectors: 2 universal connectors
- Storage: 500 GB integrated hard disk (with options for up to 1 TB in some variants)
- Connectivity: 4 USB ports, DICOM 3.0 support, direct data transfer to PC via iStorage
- Keyboard: Two-level backlit keyboard with multi-language support (including English, French, Italian, Spanish, Portuguese, Russian, Polish, Czech, German, Turkish, Finnish, Danish, Norwegian, Swedish)
- Cine Memory: Max B-mode: 10,566 frames; M-mode: 66.3 seconds
- Image Formats: BMP, JPG, DCM, AVI, CIN
Imaging Modes and Technologies
- Modes: B, B/B, 4B, B/M, M; optional Color Doppler, Power Doppler, Pulsed Wave (PW) Doppler
- Technologies:
- Phase Shift Harmonic Imaging (PSHI)
- Tissue Harmonic Imaging (THI)
- Tissue Specific Imaging (TSI)
- iBeam™ Spatial Compounding Imaging
- iClear™ Speckle Reduction Adaptive Image Processing
- iTouch™ Auto Image Optimization (single-button)
- iZoom™ for full-screen image expansion and distant viewing
- Trapezoid imaging
- B-Steer™ (2D steer for linear probes)
- Colorization
- Dynamic beamforming
Accessories and Options
Ask about compatible accessories and supplies.
- Mobile trolley (height-adjustable to 81 or 87 cm)
- Carrying bag
- Needle-guided brackets for select probes
- Compatible printers (e.g., SONY UP-X898 MD)
- MDR certified for safety and compliance
